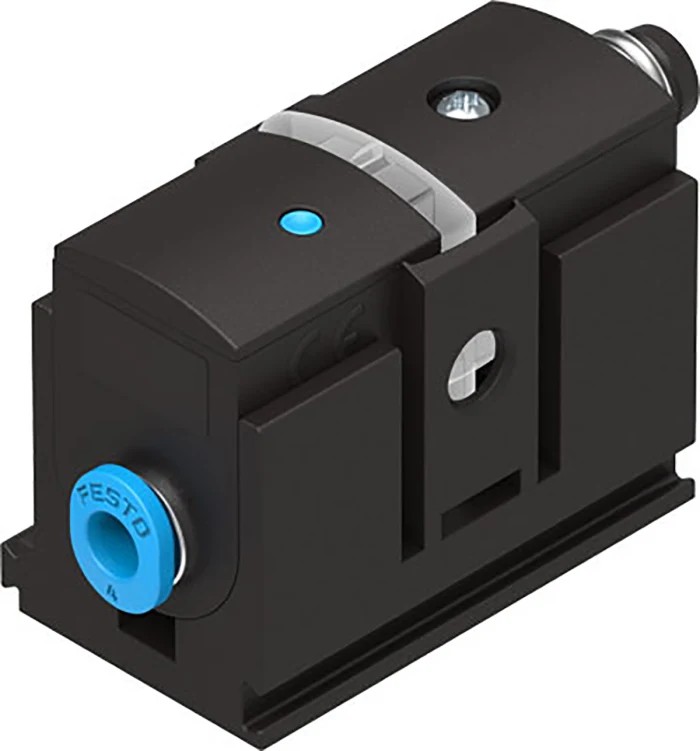

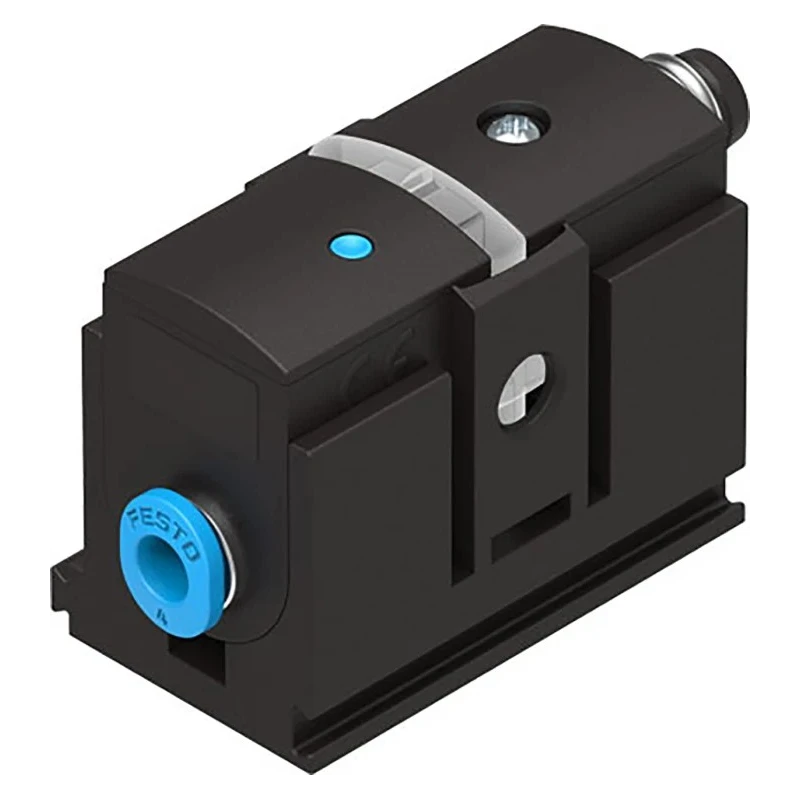

Festo Pneumatic Pressure Sensor IP40 10 bar 30V DC Max 50°C
Specifications
| Country of Origin | Bulgaria |
|---|---|
| Voltage | 30V dc |
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Model | IP40 |
| IP Rating | IP40 |
| Mount Type | Hole, Top Hat Rail |
| Maximum Operating Temperature | 50°C |
| Pressure Type | Vacuum, Differential, Relative Pressure |
| Switch output | PNP |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Connection Thread Standard | R (PT), NPT, GPT |
| Electrical Connection Type | Open End |
| Minimum Operating Pressure | 0bar |
| Suitable Medias | Air |
| Operating medium - Compressed air in accordance with ISO8573-1 | 2010 [7:4:4] |
Key Features
- Suitable for measuring vacuum, differential, and relative pressure.
- Equipped with PNP switch output and normally closed contact switching function.
- Durable piezo-resistive sensor technology with clear LED status indication.
- Quick and reliable switching point setting via teach-in function.
- Designed for simple installation with QS integrated fittings and M8 plug connector.
- Rated for use with compressed air and suitable for industrial pneumatic applications.
- Compact and sturdy design with hole and top hat rail mounting options.
Product Description
Festo SDE5-D10-C-Q4E-P-M8 pneumatic pressure sensor offers reliable pressure monitoring with an IP40 rating to protect against solid objects and enhances operational safety in industrial environments. This sensor can measure vacuum, differential, and relative pressure with a maximum operating pressure of 10 bar and a maximum operating temperature of 50°C, powered by a DC voltage of 30V.
The sensor applies piezo-resistive technology, providing durability and precision in compressed air systems compliant with ISO8573-1:2010 standards. Its PNP switch output and normally closed contact switching function allow for versatile integration into pneumatic circuits.
Installation is streamlined with QS-6 pneumatic connections and a choice between an M8 plug connector or free cable end, ensuring minimal assembly times. A clear yellow LED indicates the operating status for easy diagnostics and monitoring.
Festo’s SDE5 series is well-suited for applications including compressed air monitoring, regulator monitoring, suction confirmation in vacuum technology, and object detection through back pressure. The device supports quick switching-point adjustments via a teach-in function and features an analogue output of 0 to 10 V to meet diverse control requirements.
The sensor's robust yet compact design and multiple mounting options (hole and top hat rail) facilitate integration in various fluid power and pneumatic systems within industrial automation, manufacturing, HVAC, and process control sectors.
Suitable for measuring vacuum, differential, and relative pressure. Complies with RoHS environmental standards. Employs durable piezo-resistive pressure sensor technology. Features a yellow LED for operation status indication.
Includes quick teach-in function for fast setup. Provides PNP switch output with normally closed contact. Mounting via hole or top hat rail for installation flexibility. Designed for compressed air monitoring and vacuum applications.
Explore more Pneumatic Pressure Sensors from Festo and other industrial automation solutions on EnvMart for reliable and efficient pneumatic system components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It is suitable for measuring vacuum, differential, and relative pressure.
This pneumatic pressure sensor operates at a DC voltage of 30V.
The maximum operating temperature is 50°C.
The electrical connection type is open end, allowing for flexible installation options.
It can be mounted via hole or top hat rail, providing installation flexibility.
It features a PNP switch output with a normally closed contact switching function.
This model complies with RoHS environmental standards.
It is designed for use with compressed air, in accordance with ISO8573-1:2010 standards.
The minimum operating temperature is 0°C.
Yes, it includes a clear yellow LED for operation status indication.
The country of origin for this pneumatic pressure sensor is Bulgaria.
