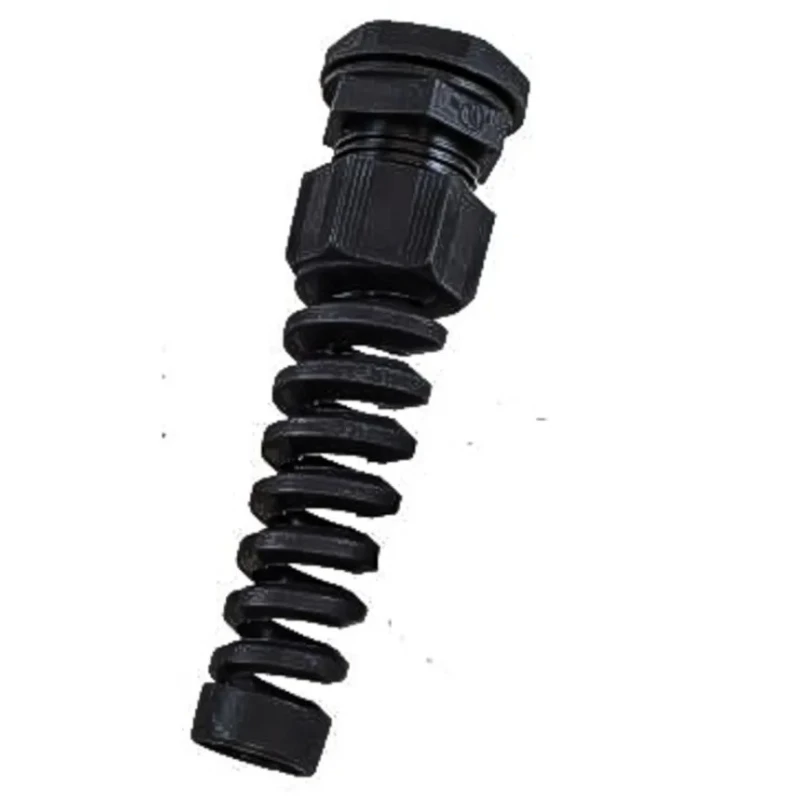

Alpha Wire FIT Wire Management Series Black Polyamide 6 Cable Gland, M25 Thread, 13 mm Min, 18 mm Max, IP68, IP66 PMS25 BK080
Specifications
| Country of Origin | India |
|---|---|
| Size | M-25x1.5 |
| Brand | Alpha Wire |
| Material | Polyamide 6 |
| Colour | Black |
| Temperature range | -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent) |
| Model | PMS25 BK080 |
| IP Rating | IP68, IP66 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | M25 |
| Minimum Operating Temperature | -30°C |
| Thread Length | 10 mm |
| Clamping Range | 13 - 18 mm |
| Thread Diameter | 25 mm |
| Standards/Approvals | UL, CSA |
| Maximum Cable Diameter | 18mm |
| Minimum Cable Diameter | 13mm |
| Flammability | V2 (According to UL94) |
Key Features
- Constructed from durable Polyamide 6 material with black color finish.
- Thread size M25 with a 10 mm thread length and 25 mm thread diameter.
- Features high ingress protection ratings of IP68 and IP66 suitable for harsh environments.
- Operates within temperature ranges from -30°C to 150°C, with permanent rating of -20°C to 100°C.
- Includes locknut and chloroprene rubber O-ring for secure and watertight sealing.
- Meets industry approvals including UL and CSA for quality assurance.
- Flammability rated V2 according to UL94 standards for safety in plastic components.
- Suitable for strain relief in telecommunications, control, instrumentation, and electrical power cable applications.
Product Description
Alpha Wire PMS25 BK080 Cable Gland is part of the FIT Wire Management Series designed to provide high-quality flexible cable protection. Manufactured from Polyamide 6 with a black finish, this M25 threaded cable gland accommodates cables with diameters between 13 mm and 18 mm. Its thread length measures 10 mm, and it has a thread diameter of 25 mm.
With an Ingress Protection rating of IP68 and IP66, the gland offers excellent resistance to dust, dirt, and water, making it suitable for industrial, telecommunications, instrumentation, HVAC, and electrical power environments. It features a chloroprene rubber O-ring and includes a locknut to ensure a secure, watertight seal.
The gland operates reliably within a temperature range of -30°C to +150°C intermittently and -20°C to +100°C permanently, allowing it to perform well under variable conditions. The flammability rating of V2 according to UL94 ensures the plastic components minimize flame spread, enhancing safety.
Alpha Wire cable glands are engineered for strain relief and system durability, ideal for application where cable protection against mechanical stress and environmental factors is critical. The product complies with UL and CSA standards, ensuring performance integrity.
Constructed from Polyamide 6 with chloroprene rubber sealing. Thread size: M25, thread length: 10 mm. Clamping range: 13 to 18 mm cable diameter. Temperature ratings: Permanent -20°C to +100°C, Intermittent -30°C to +150°C.
Ingress protection: IP68 and IP66 rated for dust and water resistance. Included locknut and O-ring ensure secure sealing. Meets UL and CSA approvals. Flammability rating V2 according to UL94 for enhanced safety.
These cable glands are suitable for a wide range of industrial and commercial applications including electrical, telecommunications, instrumentation, and data cable installations, offering robust strain relief and system protection.
Explore more Cable Gland solutions and accessory components on EnvMart for reliable cable management and protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping range of this model is from 13 mm to 18 mm in cable diameter.
It has ingress protection ratings of IP68 and IP66, providing excellent resistance to dust and water.
This cable gland operates within a temperature range of -30°C to +150°C intermittently, and -20°C to +100°C permanently.
It is constructed from Polyamide 6 material, which provides durability and resistance to harsh environments.
The thread size is M25, with a thread length of 10 mm.
Yes, it includes a locknut and a chloroprene rubber O-ring for secure and watertight sealing.
It has a flammability rating of V2 according to UL94 standards, which minimizes flame spread.
This model complies with UL and CSA standards, ensuring its quality and performance integrity.
The maximum operating temperature for this unit is 150°C.
It is suitable for applications in telecommunications, control, instrumentation, and electrical power cable installations.
The country of origin for this cable gland is India.
The thread diameter of this model is 25 mm.
