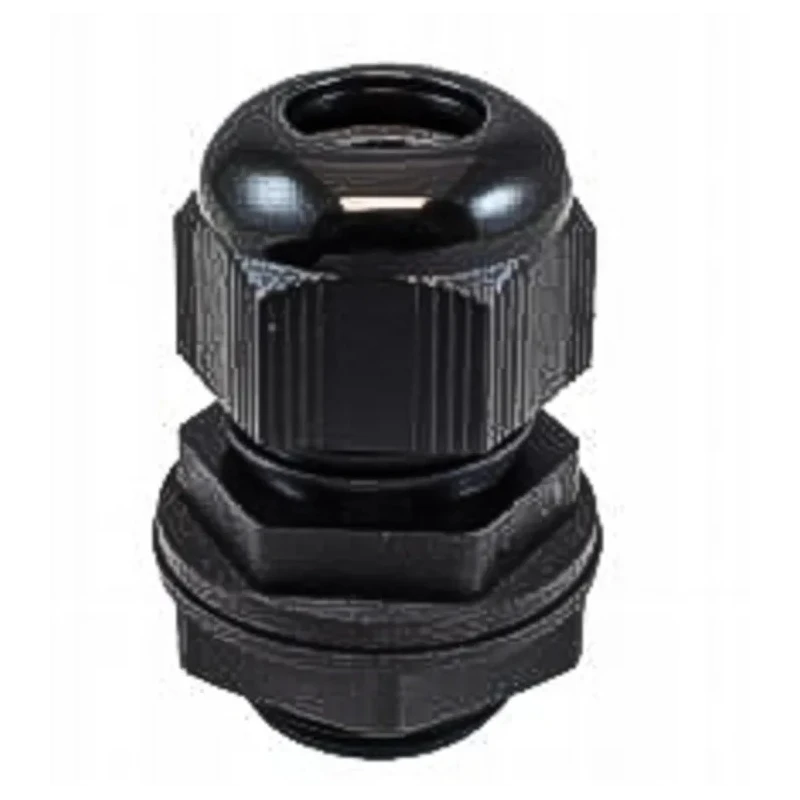

Alpha Wire FIT Wire Management Series Black Polyamide 6 Cable Gland, 1 in NPT Thread, 18 mm to 25 mm Cable PNC1 BK080

Alpha Wire's PNC1 BK080 cable gland from the FIT Wire Management Series is a high-quality black Polyamide 6 cable gland designed for professional electrical and industrial cable management applications. It features a 1 inch NPT threaded entry offering a reliable and standard connection method for various cable sizes, supporting cable diameters between 18 mm and 25 mm.

The gland is designed for robust protection against environmental elements, rated IP66 and IP68, which ensures it is dust tight and able to withstand temporary water immersion, making it ideal for telecommunications, control, instrumentation, and electrical power systems in demanding industrial and commercial environments.

Manufactured using Polyamide 6 along with a Chloroprene rubber O-ring seal, this cable gland combines durability with excellent sealing capability. It withstands permanent temperatures from -20°C to +100°C with intermittent tolerance extending up to 150°C, suitable for a wide range of applications.

The product includes a locknut to ensure secure placement and strain relief, protecting cable entries from wear and tear. It meets UL and CSA standards, providing assurance of compliance with recognized safety benchmarks. With a thread length of 18 mm and a thread diameter of 33.40 mm, it integrates smoothly with compatible enclosures and panels.

The flammability of the material is rated V2 according to UL94, which indicates that flames will self-extinguish swiftly, ensuring user safety in electrical installations. Constructed from durable black Polyamide 6 ensuring mechanical strength and corrosion resistance.

Supports cable diameters from 18 mm to 25 mm for flexible cable management. Rated IP66 and IP68 for dust-tight and water immersion protection. Includes locknut and Chloroprene rubber O-ring seal for secure and sealed installations.

Complies with UL and CSA safety standards. Operates reliably within a temperature range from -30°C to 150°C. Ideal for telecommunications, control, instrumentation, data cables, and electrical power applications. Flammability V2 rating for safety in electrical environments.

Alpha Wire cable glands are essential components used to secure cable entries and provide strain relief in industrial, construction, manufacturing, and electrical environments. The PNC1 BK080 is a dependable choice for protecting infrastructure and wiring in harsh conditions.

Explore our wide selection of Cable Glands and fittings at EnvMart to find components that support your technical and industrial requirements.
