Festo Pneumatic Position Detector with Plug M8X1, 3-Wire, 3-Pin Cable, LED Indicator, IP68, IP65 SMT-10M-NS-24V-E-0,3-L-M8D

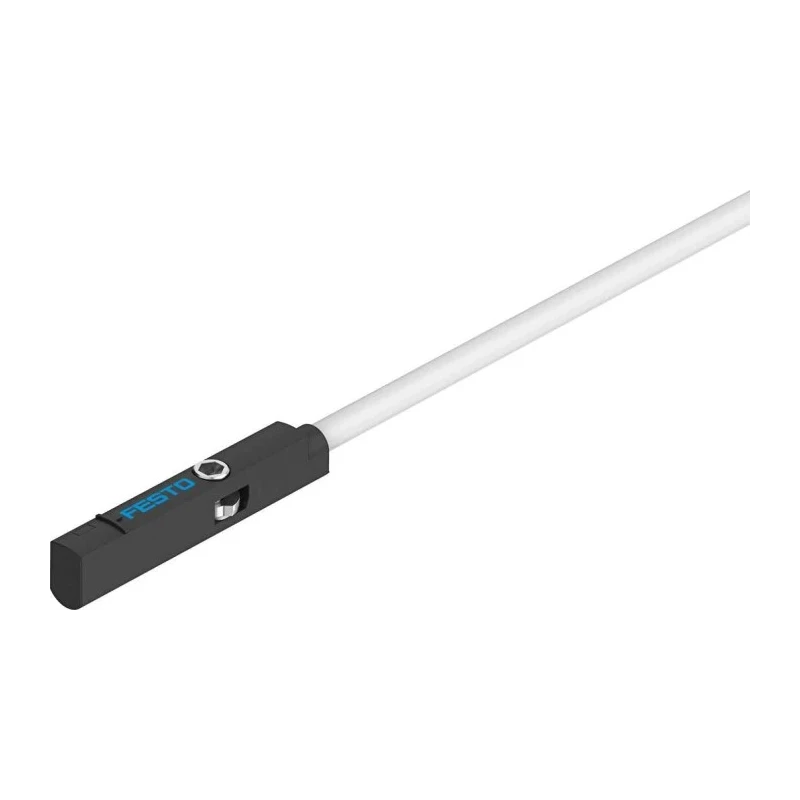

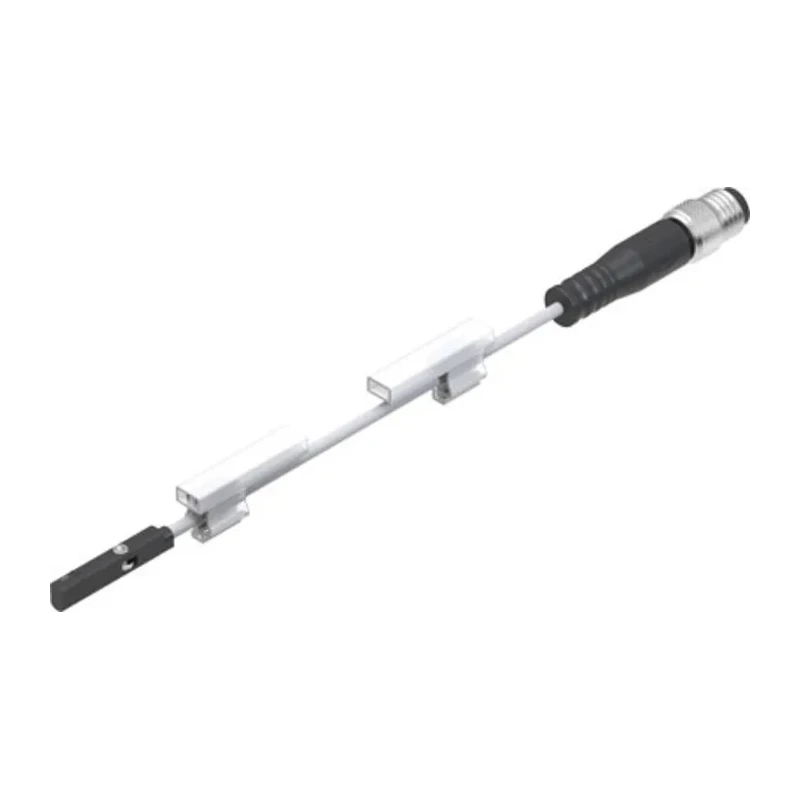

Festo SMT-10M-NS-24V-E-0,3-L-M8D Pneumatic Position Detector is a high-performance sensor designed to monitor the linear position of pistons in pneumatic setups. Operating on a 30V DC supply with a maximum output current of 100mA, this device uses a magneto-resistive proximity sensor principle to detect magnetic fields without physical contact, thereby reducing wear and interference.

Its sturdy housing is composed of thermoplastic elastomer, polyamide, polypropylene, nickel plated brass, and high alloy stainless steel, providing excellent resistance to chemicals, corrosion, and impact damage. The detector carries IP68 and IP65 ratings, making it suitable for harsh environments including immersion in water up to 1.5 meters for 30 minutes.

The unit supports versatile output functions such as normally open (NO), normally closed (NC), NPN, PNP, contact, and bipolar switching actions. A built-in yellow LED indicator enables easy monitoring of operational status at a glance, with a rapid switch-on time under 1.3 milliseconds enhancing responsiveness.

Operating reliably from -40°C to +70°C, the lightweight 6.7 gram sensor integrates seamlessly with energy chains and robotic systems. It conforms to rigorous industrial standards, including CE, RoHS, EN 60947-5-2, C-Tick, and is cULus listed, endorsing its safety and performance credentials.

Ideal for industrial automation, assembly lines, robotics, and material handling applications, this pneumatic position detector ensures precise and robust sensor performance. The product is delivered new from Bulgaria and offers long-lasting durability in demanding conditions.

The detector features a magneto-resistive proximity sensor that detects magnetic fields without contact, ensuring durability. Multiple output functions supported, including NO, NC, NPN, PNP, contact, and bipolar types. Constructed from chemically resistant and impact-resistant thermoplastic elastomer, polyamide, polypropylene, nickel plated brass, and high alloy stainless steel.

Durable waterproof design rated IP68 and IP65 for harsh industrial environments. Integrated yellow LED indicator and fast switch-on time less than 1.3 ms for efficient monitoring. Wide operating temperature range from -40°C to +70°C for extreme conditions.

Lightweight at 6.7 grams, suitable for use with energy chains and robotic platforms. Certified to CE, RoHS, EN 60947-5-2, C-Tick, and cULus safety and performance standards. Applicable for industrial automation, assembly lines, robotics, and material handling systems.

Manufactured in Bulgaria and supplied in new condition. Explore more Pneumatic Cylinder Sensors and pneumatic position detectors at EnvMart, your trusted source for industrial automation components.
