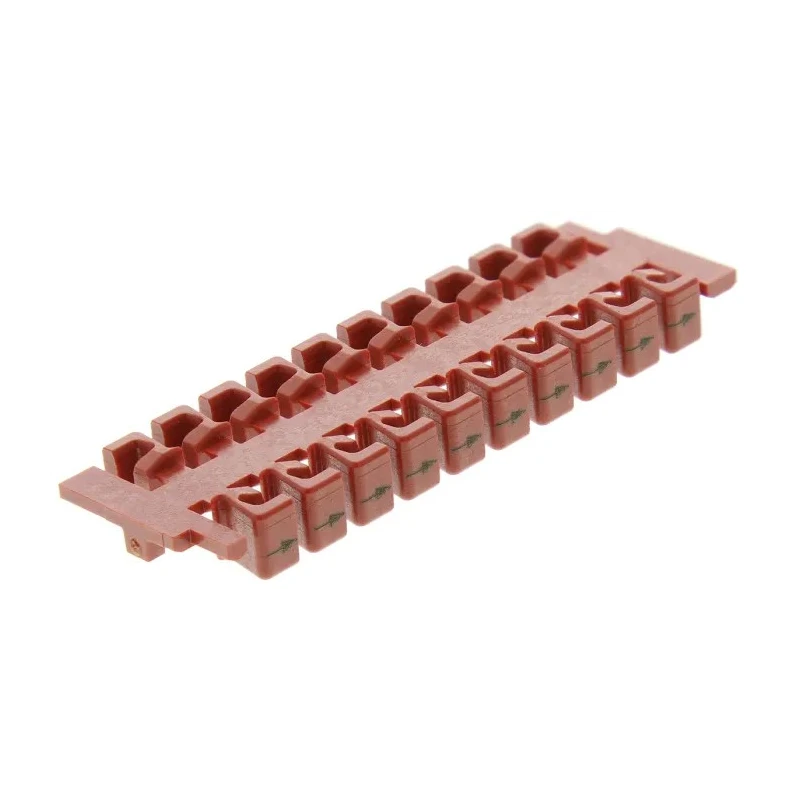

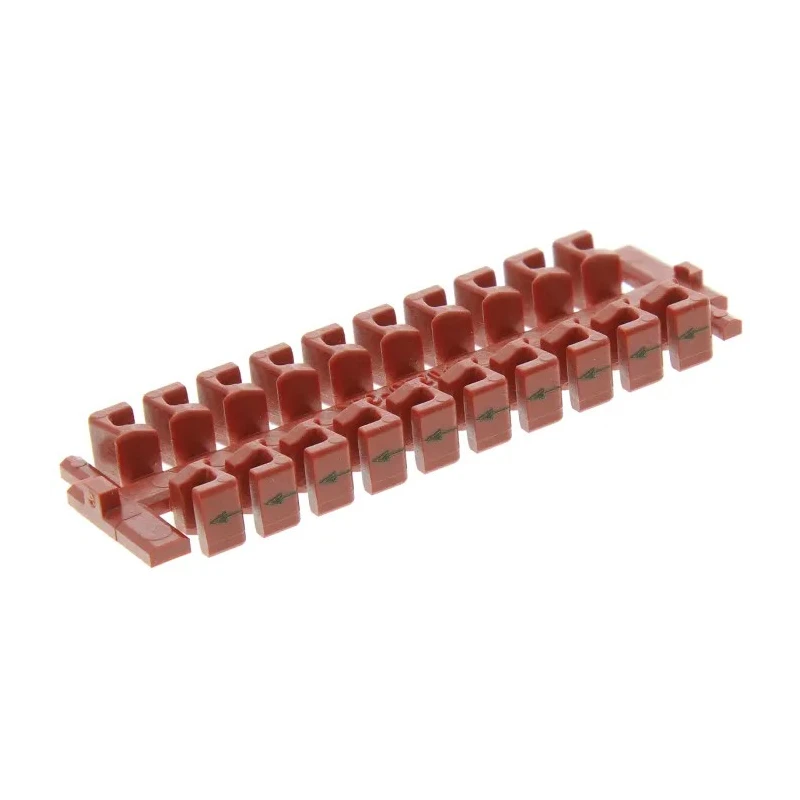

HARTING Hinged Frame Han-Modular Series 20 Way Heavy Duty Power Connector 70 x 7 x 22 mm 09140009960

HARTING 09140009960 Hinged Frame is a critical accessory component of the Han-Modular series that allows integration with heavy duty power connectors. Measuring 70 x 7 x 22 mm, this hinged frame features a top cable entry angle and a bright red die cast zinc housing that ensures mechanical strength and durability.

The hinged frame is designed to accommodate 20 contacts arranged in two rows, supporting female connectors that are ideal for secure power transmission in demanding industrial environments.

Part of the flexible Han-Modular connector system, this frame allows customized insert configurations to suit diverse power, signal, and pneumatic needs within a single assembly. It is suited for applications in industrial, manufacturing, and electrical distribution settings where reliability and modularity are paramount.

The product is made in Germany, reflecting robust engineering standards and manufacturing excellence. It complements HARTING’s range of crimping tools designed for automation levels to ensure reliable and consistent connections.

This hinged frame provides a reliable docking frame suitable for heavy duty power connector applications. It features a female gender and accommodates 20 contacts arranged in 2 rows. The frame measures 70 x 7 x 22 mm, with a top cable entry angle for optimal installation.

Constructed from die cast zinc and finished in red color to meet robust industrial requirements. Designed to fit within the Han-Modular series, facilitating flexible configurations for power and signal connections. Manufactured in Germany ensuring high quality and compliance with industrial standards.

Note: To allow float mounting, stock number 700-8130 must be used. For more information and product options, explore the Heavy Duty Power Connector Accessories category on EnvMart.
