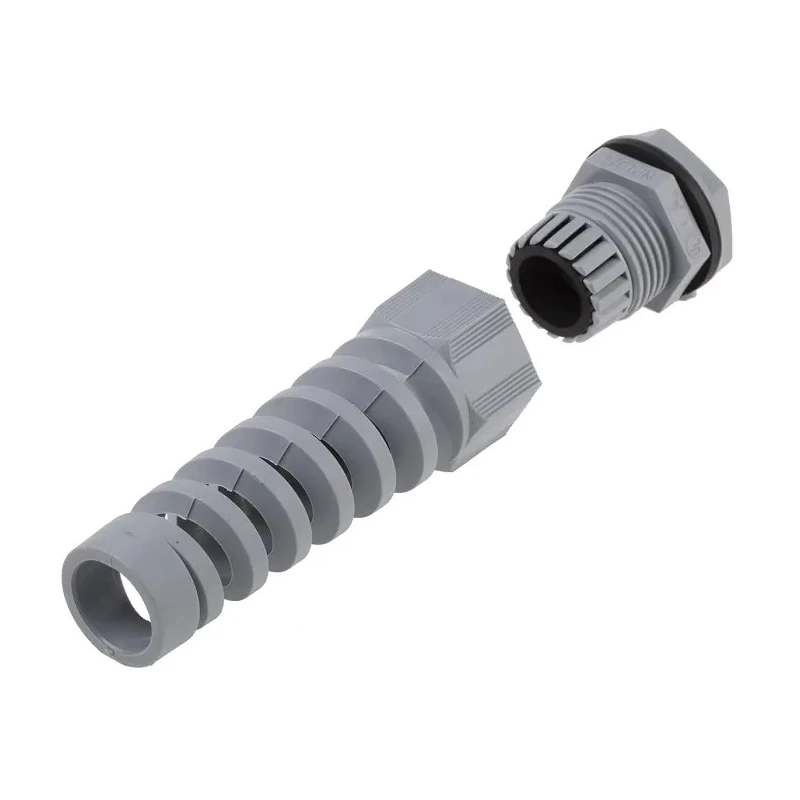

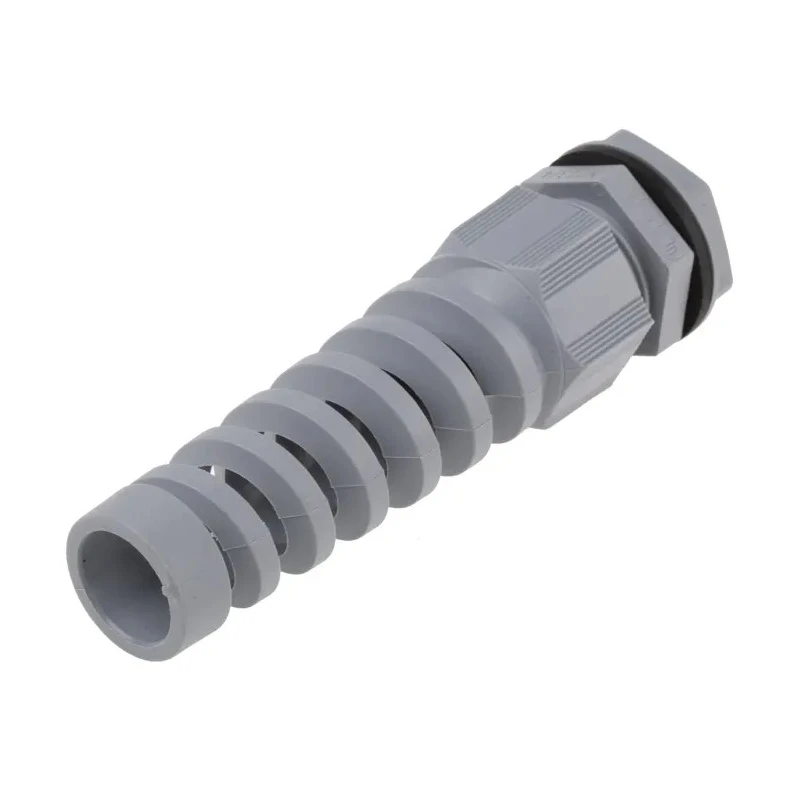

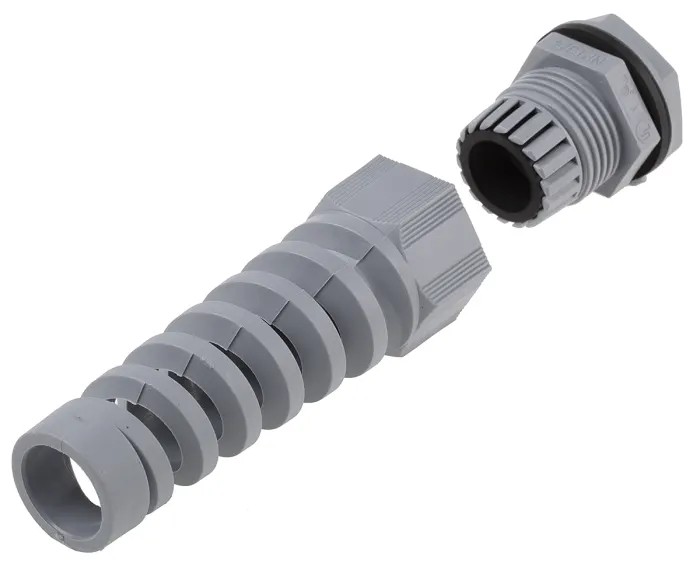

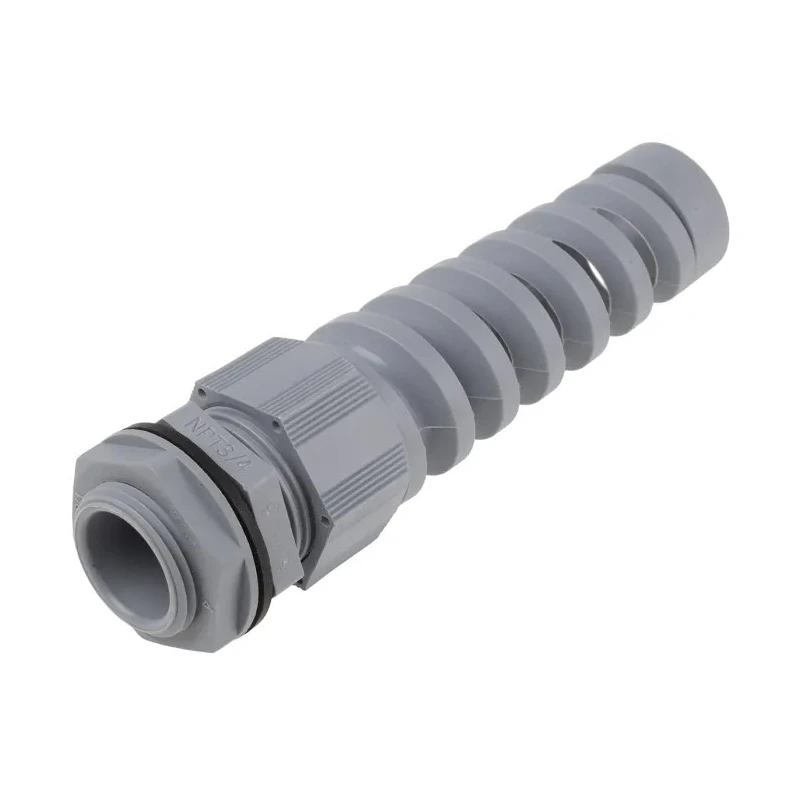

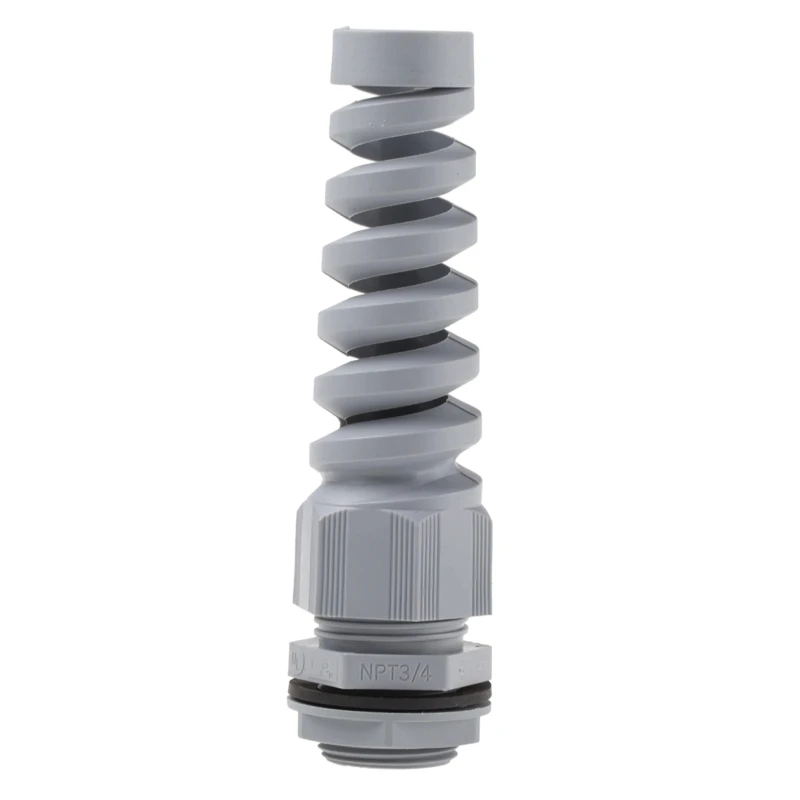

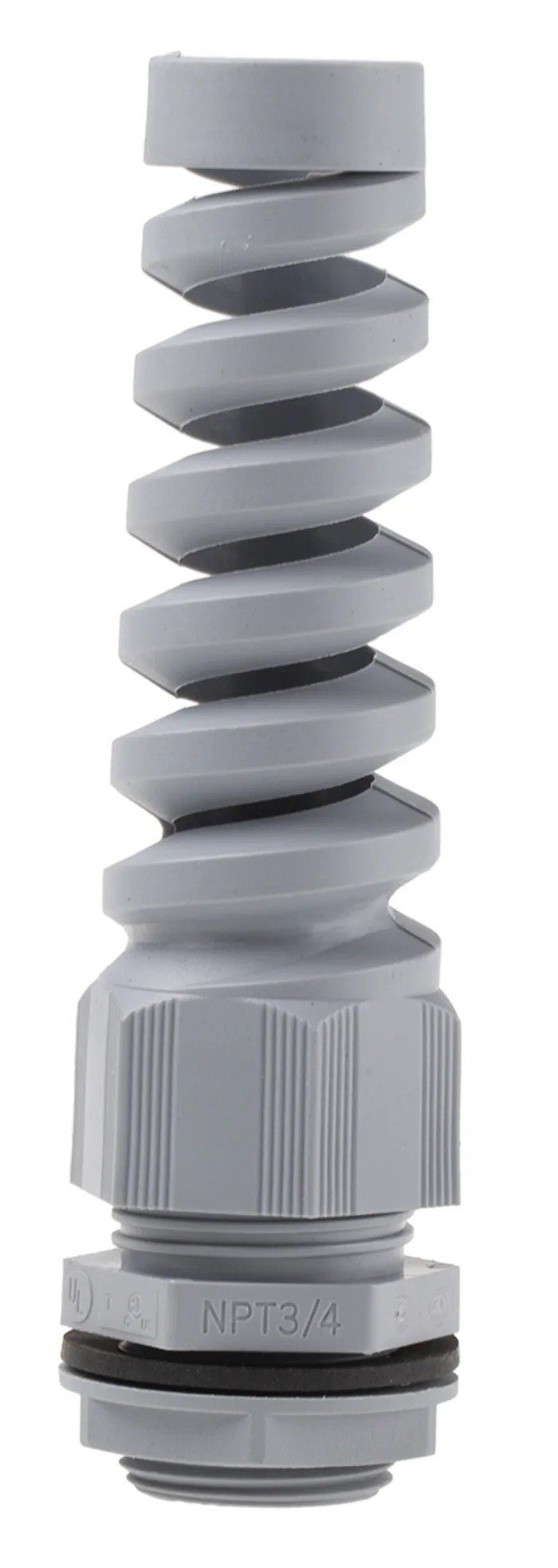

Alpha Wire FIT Wire Management Series Slate Chloroprene Rubber, Polyamide Cable Gland, 3/4 in NPT Thread, 13 mm PNS3/4 SL080
Specifications
| Country of Origin | India |
|---|---|
| Size | NPT-1/4 |
| Brand | Alpha Wire |
| Material | Chloroprene Rubber, Polyamide |
| Colour | Slate |
| Temperature range | -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent) |
| Model | PNS3/4 SL080 |
| IP Rating | IP68, IP66 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | 3/4 in NPT |
| Minimum Operating Temperature | -20°C |
| Thread Length | 15 mm |
| Clamping Range | 13 - 18 mm |
| Thread Diameter | 26.67 mm |
| Standards/Approvals | CSA C22.2, UL 514, UL 94V-2 |
| Maximum Cable Diameter | 18mm |
| Minimum Cable Diameter | 13mm |
| Flammability | V2 (According to UL94) |
Key Features
- Constructed from durable chloroprene rubber and polyamide materials for long-lasting performance.
- Designed for 3/4 inch NPT threaded installations ensuring secure attachment.
- Provides robust IP68 and IP66 ratings for water and dust resistance.
- Includes locknut for secure fixing during installation.
- Operating temperature range from -20°C to +150°C supports various industrial environments.
- Meets CSA C22.2, UL 514, and UL 94V-2 fire safety standards.
- Flammability rated V2 ensuring burning stops promptly after ignition.
- Suitable for telecommunications, control, instrumentation, and electrical power cable management.
Product Description
Alpha Wire PNS3/4 SL080 is a high-quality cable gland from the FIT Wire Management Series, featuring a slate-coloured chloroprene rubber O-ring and polyamide 6 body. It is designed for 3/4 inch NPT threaded cable connections with a clamping range of 13 to 18 mm diameter cables. The gland has a thread length of 15 mm and thread diameter of 26.67 mm, providing secure cable protection in demanding industrial applications.
This cable gland has robust IP68 and IP66 ingress protection ratings, ensuring resistance against dust, dirt, sand, and water ingress up to 5 bar pressure for 30 minutes, making it suitable for harsh environments. The temperature ratings extend from -20°C to +100°C for permanent use, and up to +150°C for intermittent operation, supporting a wide variety of industrial scenarios.
Constructed with flame-retardant materials certified to UL 94V-2 standards (flammability rating V2), it ensures safety and durability under fire risk conditions. The gland includes a locknut to secure installation and meets CSA C22.2 and UL 514 standards, attesting to its compliance with recognized safety and quality benchmarks.
These cable glands are ideal for use in telecommunications, instrumentation, control systems, and electrical power cable management, providing excellent strain relief and environmental protection. The flexible design accommodates a range of cable diameters with large clamping tolerance, supporting effective cable protection and management.
Constructed of chloroprene rubber and polyamide for durability. Rated IP68 and IP66 for ingress protection against dust and water. Complies with CSA C22.2, UL 514, and UL 94V-2 standards for safety and performance. Operating temperature range from -20°C to +150°C for permanent and intermittent use.
Includes locknut to ensure secure installation. Large clamping range accommodates cable diameters from 13 to 18 mm. Thread size ASTM standard 3/4 inch NPT with 15 mm thread length. Flammability rated V2 ensures fire safety.
Suitable for telecommunications, control, instrumentation, and power cables. For professional cable management solutions, browse more Cable Glands and fittings in EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping range for this model is from 13 mm to 18 mm in diameter.
It has robust IP68 and IP66 ratings, providing resistance against dust and water ingress up to 5 bar pressure for 30 minutes.
This cable gland is constructed from chloroprene rubber and polyamide materials.
The operating temperature range is from -20°C to +100°C for permanent use, and up to +150°C for intermittent use.
It meets CSA C22.2, UL 514, and UL 94V-2 fire safety standards.
The thread size is 3/4 inch NPT with a thread length of 15 mm and a thread diameter of 26.67 mm.
Yes, it includes a locknut to ensure secure installation during use.
The flammability rating is V2 according to UL 94, ensuring that burning stops promptly after ignition.
It is suitable for telecommunications, control systems, instrumentation, and electrical power cable management.
The maximum cable diameter that this cable gland can accommodate is 18 mm.
The minimum operating temperature is -20°C.
The country of origin for this cable gland is India.
