Pfannenberg PF Series Fabric Filter Thermoplastic Fan Filter for 223 x 223 mm Fans 252 mm 11740003055

Free Delivery in India | Lowest Global Shipping Charges

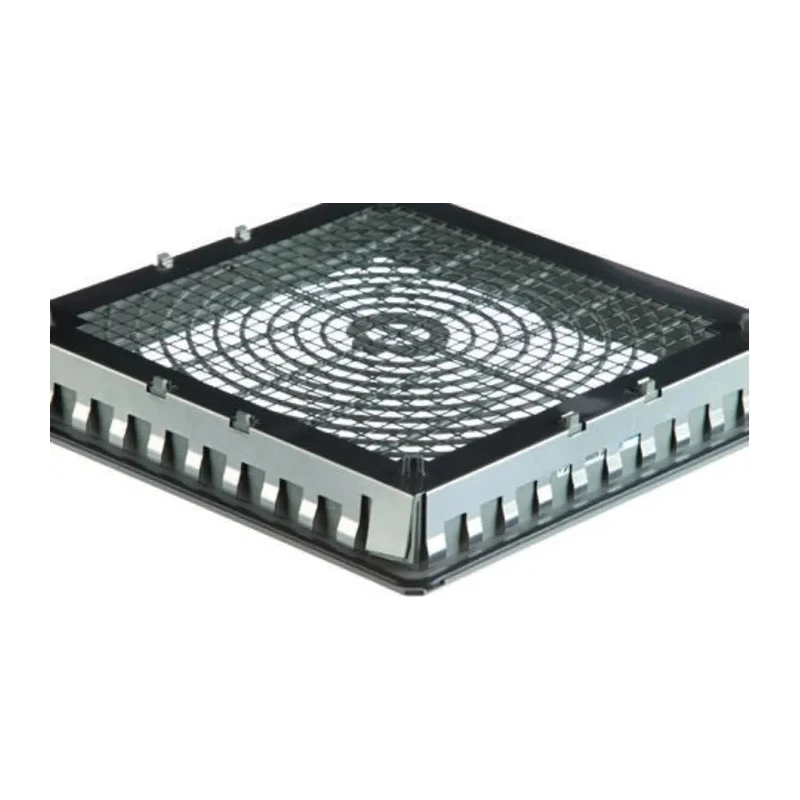

Pfannenberg PF Series Fabric Filter Thermoplastic Fan Filter for 223 x 223 mm Fans 252 mm 11740003055

Name: Pfannenberg PF Series Fabric Filter Thermoplastic Fan Filter for 223 x 223 mm Fans 252 mm 11740003055
Brand: Pfannenberg
SKU: 150133
Price: 94.97 USD
Availability: InStock



Category Fan Filters Brand Pfannenberg Condition New

Specifications

Country of Origin	Germany
Brand	Pfannenberg
Colour	RAL 7035 (except Manu Part No suffix 50 : RAL 9011 / Black)
Length	252mm
Filter Type	Exhaust Filter
Width	252mm
Series	PF
Filter Material	Fabric
Fan Size	223 x 223 mm
Frame Finish	Thermoplastic
Standards/Approvals	IP 54 or IP55 (EN 60529), DIN 31001, UL Approval
Pfannenberg Fan Filter, ABS Frame, 250 x 250mmBrand	Pfannenberg

Key Features

Featuring a new pleated fabric filter and louvre design for high airflow and IP55 protection level.
Patented water and dust pre-separation in lamellas extends filter lifetime and reduces maintenance.
Click and fit design allows hardware-free installation and easy filter mat changing.
Comprises IP54 variants with G3 filtration and IP55 variants with G4 filtration, including EMC versions.
Four-corner locking system and reversible units for air intake or extraction.
UV stable IP55 variants suitable for outdoor use without additional protection.
Terminals use cage clamp design, rotatable by 90° for wiring flexibility.
Compatible cutouts with previous generations and major competitors.

Product Description

Pfannenberg 11740003055 PF Series fabric filter thermoplastic fan filter is engineered for 223 x 223 mm fans with a length and width of 252 mm, designed for reliable exhaust filtration in industrial cooling and HVAC applications.

This 4th generation high air flow filter fan features a unique pleated fabric filter mat combined with an innovative louvre design that achieves the highest airflow rates at IP55 protection. The patented water and dust pre-separation lamella system prevents the majority of contaminants from reaching the filter mat, significantly extending filter life and reducing maintenance demands.

The filter offers a user-friendly click and fit design, eliminating the need for fixings during installation and filter mat replacements. It includes IP54 variants that meet the enhanced G3 filtration standard, and IP55 variants capable of G4 filtration, with electromagnetic compatibility (EMC) options available for both classes.

The product features a patented 4-corner locking system and a terminal with a cage clamp design whose orientation can be changed in 90° increments to accommodate different wiring configurations. The filter units are reversible, allowing installation for either air intake or extraction from enclosures.

IP55-rated variants are UV stable, making them suitable for outdoor installations without additional protective measures. The cutout dimensions are compatible with prior generation filters and major competitors' products to facilitate upgrades or replacements without requiring panel modifications.

High airflow performance with advanced filtration design. Durable thermoplastic frame and fabric filter combination. Hardware-free installation with click and fit system. Reversible fan filter suitable for intake or exhaust.

UV resistant and suitable for outdoor environments (IP55 variants). Compatible cutout size for seamless upgrades. EMC versions for electromagnetic interference compliance.

This reusable filter fan is ideal for industrial cooling, automation systems, electrical cabinets, HVAC equipment, and other applications requiring filtered airflow to protect sensitive components.

Explore Pfannenberg products and related Fan Filters at EnvMart for reliable thermal management solutions.
