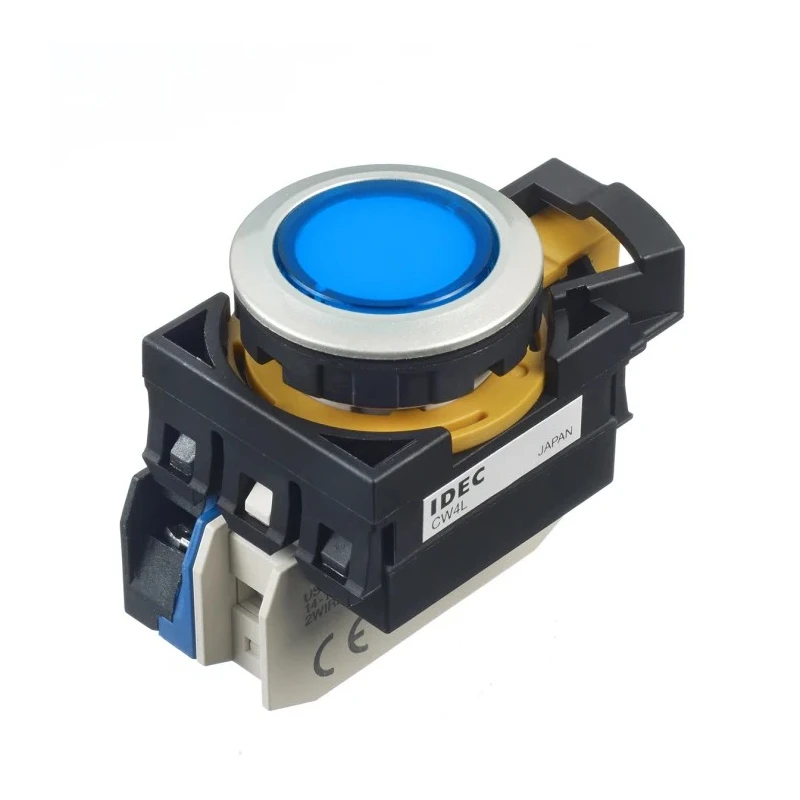

Idec CW Series Illuminated Push Button Switch, Momentary, Panel Mount, 22 mm Cutout, SPST, Blue LED, IP65, 24 V CW4L-M1E10Q4S

Idec CW4L-M1E10Q4S is an illuminated push button switch from the CW Series, designed for momentary operation with a panel mount style requiring a 22 mm cutout. It features a blue LED indicator and a single pole single throw (SPST) contact configuration rated for 24 V AC or DC operation at 10 A contact current. The switch’s flush silhouette design enhances safety by reducing the risk of accidental activation and limits dust build-up on machinery or control panels.

Constructed with metal and block plastic bezels, this switch offers durability and a sleek appearance suitable for industrial control panels. It has a compact installation depth of 34.5 mm behind the panel and uses screw terminals for reliable electrical connections. The IP65 rating means the switch is resistant to dust ingress and water jets, making it apt for use in harsh and outdoor environments.

The operating temperature range from -25°C to 55°C ensures dependable performance under varying climate conditions. Additionally, the switch supports marking film legend insertion, allowing customized labeling for improved operator interface. This product complies with several international standards including the EU Low Voltage Directive, UL/c-UL, CSA C22.2, GB14048.5, UL508, EN60947-5-1, and CCC certifications, reaffirming its quality and safety credentials.

Industrially, it is suitable for automation, machinery controls, electrical panels, HVAC systems, manufacturing equipment, and other commercial and industrial control applications. Its momentary action and visual LED feedback make it ideal for control stations requiring clear operational status indication.

Features a single pole single throw (SPST) contact configuration. Rated for 24 V AC and DC contact voltage with a 10 A contact current rating. Constructed for panel mounting with screw terminal connections for secure wiring.

IP65 rated for dust and water resistance making it suitable for harsh environments. Operating temperature range from -25°C to 55°C ensures reliability in varying conditions. Includes a marking film for custom legend insertion to aid user identification.

Flush silhouette design minimizes accidental operation and reduces dust accumulation. Compact mounting depth of 34.5 mm behind the panel facilitates easy installation. Made with metallic and block plastic bezels providing durability and aesthetic appeal.

Compliance with multiple safety and quality standards including UL, CSA, and CCC certifications. Discover a wide range of reliable Push Button Switches and components in the Electronics & Electricals category at EnvMart for all industrial automation and control needs.
