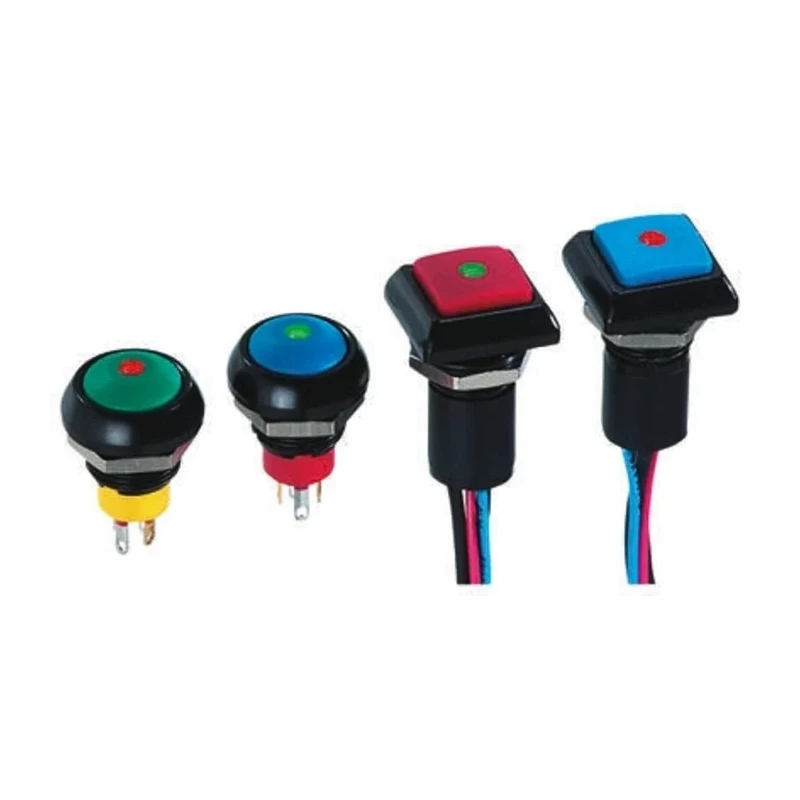

APEM IP Series Illuminated Momentary Push Button Switch, Panel Mount, 12 mm Cutout, SPST, Green LED, IP67, 50 V IPC3SAD3LOG
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 16mm |
| Model | IPC3SAD3LOG |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | Off-On, NO, NC |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 50V dc |
| Actuator Style | Square |
| Switch Contact Current | 5A |
| Contact AC Voltage | 48V ac |
Key Features
- Illuminated green LED for clear status indication.
- IP67 rated for dust tight and water immersion protection.
- Suitable for harsh environment applications with salt spray resistance.
- Operates at 50 V dc and 48 V ac with 5 A contact current.
- Square actuator design with 16 mm height and 17.5 mm width.
- Momentary switch operation providing reliable tactile feedback.
- Solder terminal type for secure electrical connection.
- Operating temperature range from -40°C to 85°C.
Product Description
APEM IPC3SAD3LOG is an illuminated momentary push button switch designed for panel mounting with a 12 mm cutout size. This switch features a square actuator style with a green LED, providing effective visual status indication. It supports SPST contact configuration, making it suitable for reliable on/off control applications.
The device is IP67 rated, ensuring protection against dust ingress and water immersion, suitable for harsh industrial environments including those exposed to salt spray. It is rated for use at 50 V dc and 48 V ac voltages with a maximum contact current of 5 A.
With an operating temperature range from -40°C up to 85°C, this switch maintains performance under extreme conditions. The solder terminal type design allows for secure and robust electrical connections.
Commonly used in industrial automation, electrical panels, and other control applications, this switch meets RoHS compliance and IEC standards IEC 512-4 and IEC-512-6. Illuminated green LED for clear status indication. IP67 protection for reliable operation in harsh environments.
Momentary, SPST switch configuration for on/off control. Suitable for use at 50 V dc and 48 V ac with up to 5 A current. Durable square actuator measuring 16 mm height and 17.5 mm width. Operates reliably between -40°C and 85°C.
Solder terminal type for steady electrical connections. Designed for industrial, automation, and panel applications.
This APEM IP Series switch is a dependable choice for applications demanding high reliability and environmental resistance. Explore more high-quality Push Button Switches in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has an IP67 rating, providing protection against dust ingress and water immersion, making it suitable for harsh environments.
It operates reliably within a temperature range of -40°C to 85°C.
This model is rated for 50 V dc and 48 V ac.
The maximum contact current for this switch is 5 A.
It features a solder terminal type for secure electrical connections.
The required panel cutout size for this switch is 12 mm.
This switch has a square actuator style with a height of 16 mm and a width of 17.5 mm.
It supports a Single Pole Single Throw (SPST) contact configuration.
Yes, this switch meets RoHS compliance standards.
It is commonly used in industrial automation, electrical panels, and other control applications.
The switch features a green LED for clear status indication.
This model complies with IEC standards IEC 512-4 and IEC-512-6.
