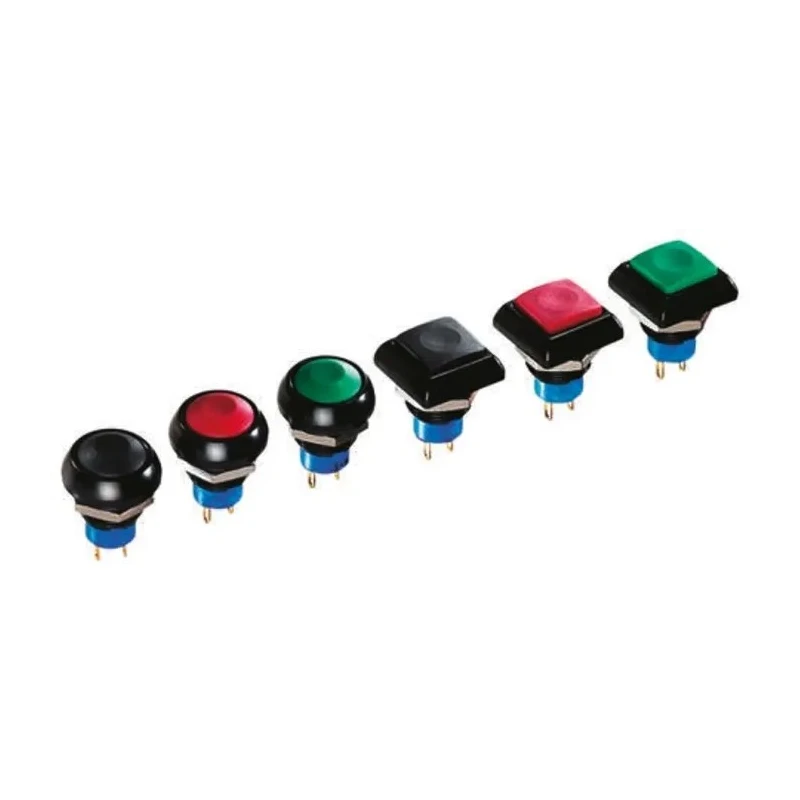

APEM IP Series Momentary Panel Push Button Switch, SPST, 12 mm Cutout, Blue Green Red White Yellow LED, IP67 IPC3SAD5

APEM IPC3SAD5 is a momentary push button switch designed for panel mounting with a 12 mm cutout suitable for industrial and automation applications. This push button switch features a SPST contact configuration and momentary operation, ideal for control panels requiring short-duration contacts. The switch series IP is engineered for harsh environments, boasting an IP67 rating that protects against dust ingress and water immersion, ensuring reliability and durability in demanding conditions.

The switch is available with LED illumination options in blue, green, red, white, and yellow, providing versatile signalling choices. It has a square-shaped actuator, standing 16 mm tall, designed for ergonomic and efficient operation. The product also offers excellent mechanical robustness certified to IK06 standard, making it resistant to impacts common in industrial settings.

Operating temperature ranges between -40°C and 85°C, which allows for use in extreme climates. It includes lug terminals with solder type connection, facilitating secure and long-lasting electrical contacts suitable for industrial control systems. The push button complies with RoHS standards, signifying that it meets environmental and safety regulations.

This push button switch is manufactured in France, representing a high level of craftsmanship and quality assurance. With a switch contact current rating of 5A AC, it is capable of managing moderate electrical loads commonly encountered in automation and electrical panel systems.

The product is well suited for industrial automation, electrical panel controls, HVAC systems, machinery controls, and other technical applications requiring reliable momentary switching with robust environmental protection.

Designed for harsh environment with IP67 protection against dust and water. Operates momentarily with a 12 mm panel cutout for secure installation. Includes LED options in blue, green, red, white, and yellow for varied signalling.

Switch configuration is Off-On with solder terminal type for reliable connections. Robust IK06 protection ensures resistance to mechanical impacts. Highly durable with operating temperature range from -40°C to 85°C suitable for varied industrial conditions.

Compact square actuator style sized at 16 mm height for ergonomic use. Certified RoHS compliant for environmental safety. Manufactured in France ensuring quality and precision engineering. Rated for switch contact current of 5A AC, suitable for numerous electrical applications.
