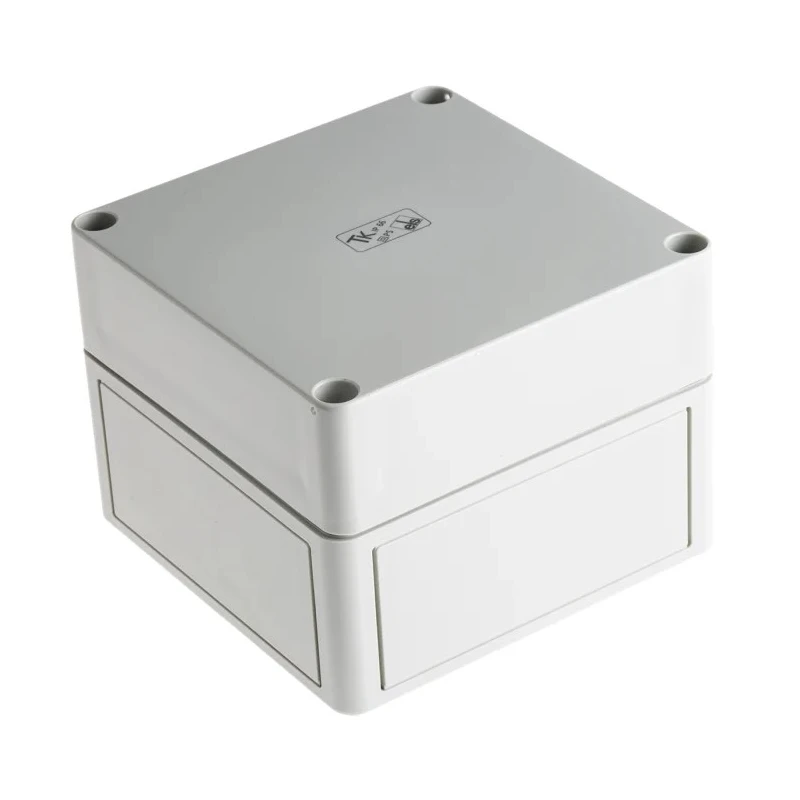

Spelsberg TK PS Series Grey Polystyrene Enclosure IP66 IK07 99 mm x 130 mm x 130 mm 11090501

Spelsberg 11090501 TK PS Series polystyrene enclosure provides robust protection for electrical, electronic, and pneumatic equipment. Constructed with a grey (RAL 7035) polystyrene base and lid, the enclosure is IP66 rated for dust-tight sealing and protection from powerful water jets, while the IK07 rating certifies its high impact resistance. The enclosure measures 99 mm in height, 130 mm in width, and 130 mm in length, making it suitable for compact indoor installations.

It incorporates polyurethane sealing to ensure tightness and utilizes polyamide 6 fibre glass reinforced screws for secure closure. The enclosure does not include any knockouts or cable entries, emphasizing a clean and tamper-resistant design. It is silicone-free and halogen-free to maintain electrical safety and environmental compliance, further supported by RoHS certification.

The enclosure operates efficiently within a temperature range from -25 to +40 degrees Celsius, making it ideal for indoor industrial, manufacturing, and electrical automation applications. Its flammability complies with VDE 0471, UL94 standards, certified to withstand 650 °C and rated HB.

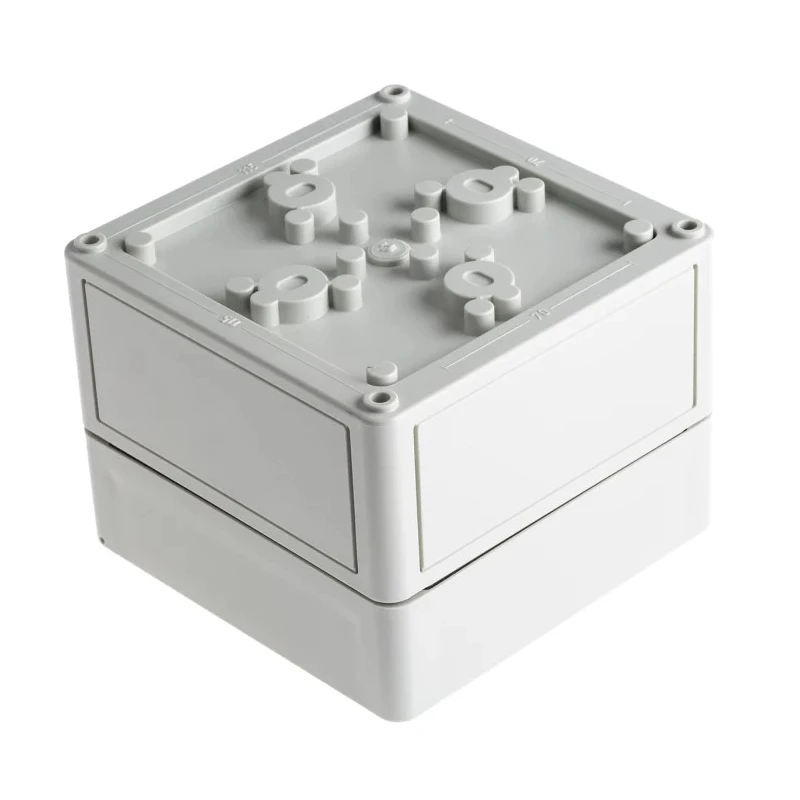

Wall mounting is facilitated using through holes located beneath the lid fixing screws, and the unit includes sealing plugs for surface mounting options. The grey polystyrene material combines strength with fair cable retention, making this enclosure suitable for housing sensitive electronics in various industrial environments.

The enclosure is constructed from durable grey polystyrene material and features a matching grey lid. It provides IP66 ingress protection to prevent dust and water ingress for reliable operation. Offers high impact resistance with an IK07 rating as per DIN EN standards.

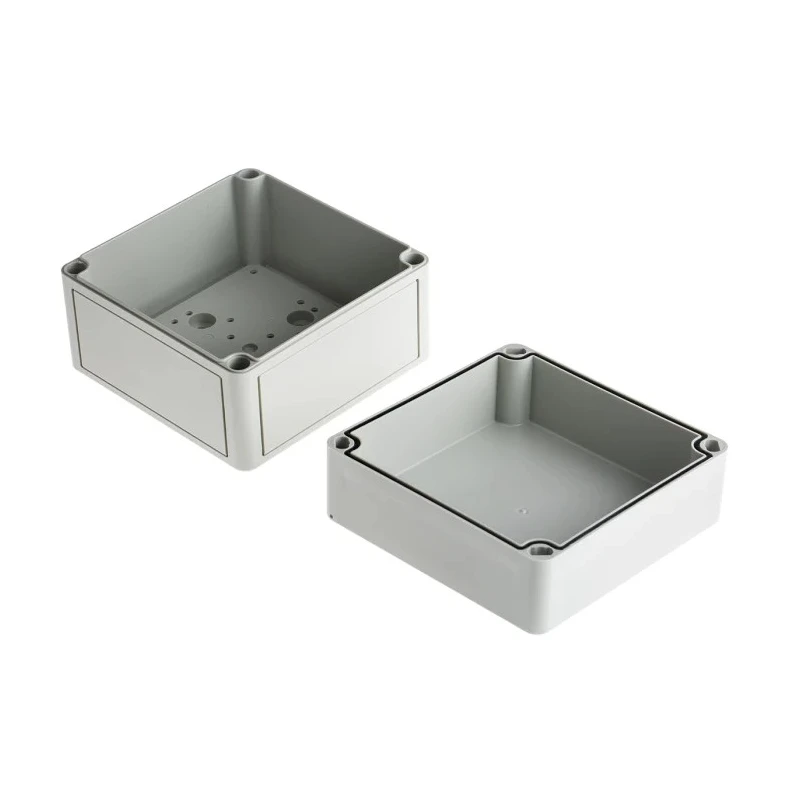

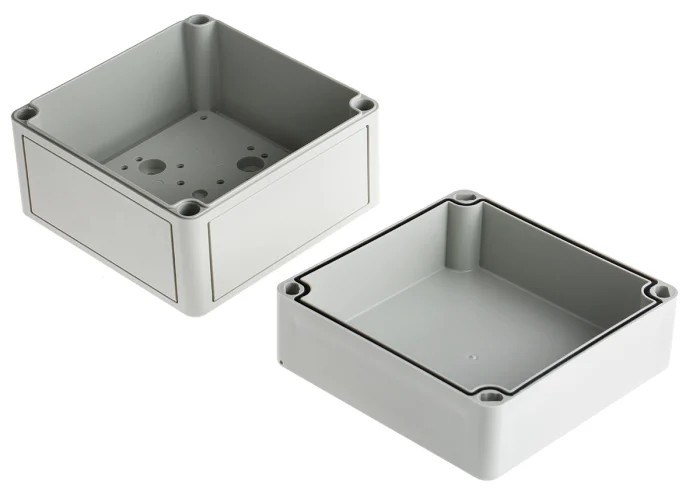

The design excludes knockouts and silicone, enhancing electrical safety and contamination control. Equipped with polyurethane cover gasket providing effective sealing against environmental hazards. The enclosure is halogen-free and meets RoHS standards for hazardous materials.

Operational temperature setting from -25 to +40 °C accommodates diverse indoor use cases. Includes polyamide 6 fibre glass reinforced screws ensuring robust mechanical fastening.

This Spelsberg TK PS Series enclosure is manufactured in Germany and is well suited for industrial automation, electrical control systems, HVAC modules, and laboratory instrumentation housing. Its design prioritizes durability, safety, and easy installation while ensuring compliance with international electrical standards.
