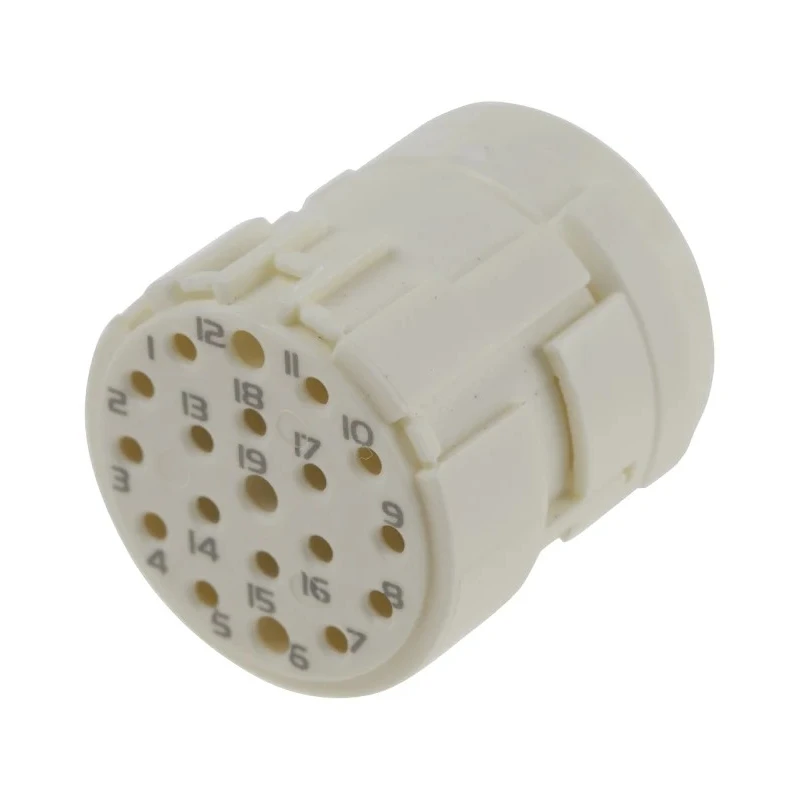

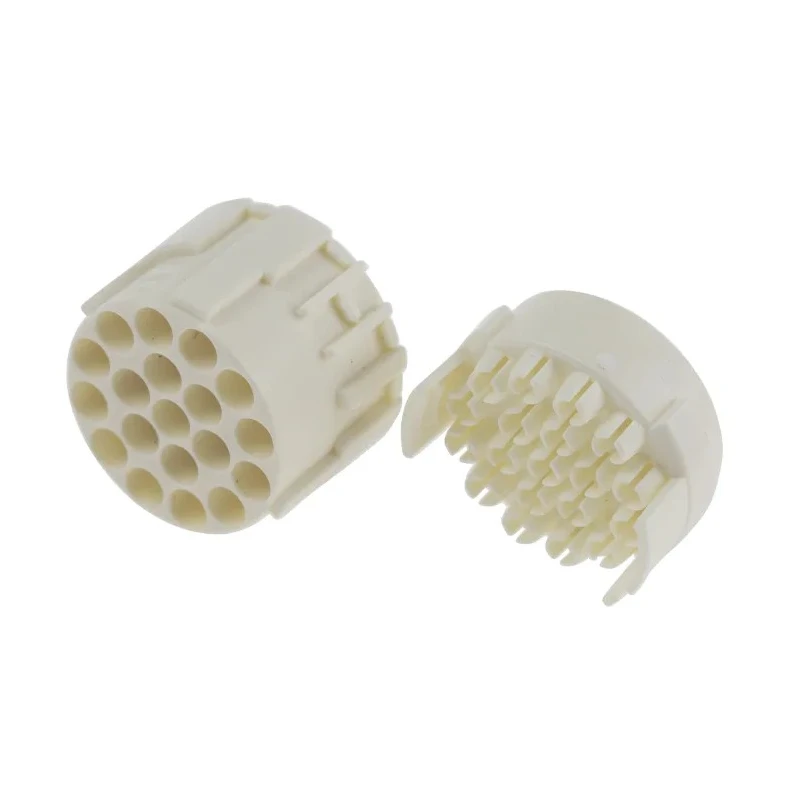

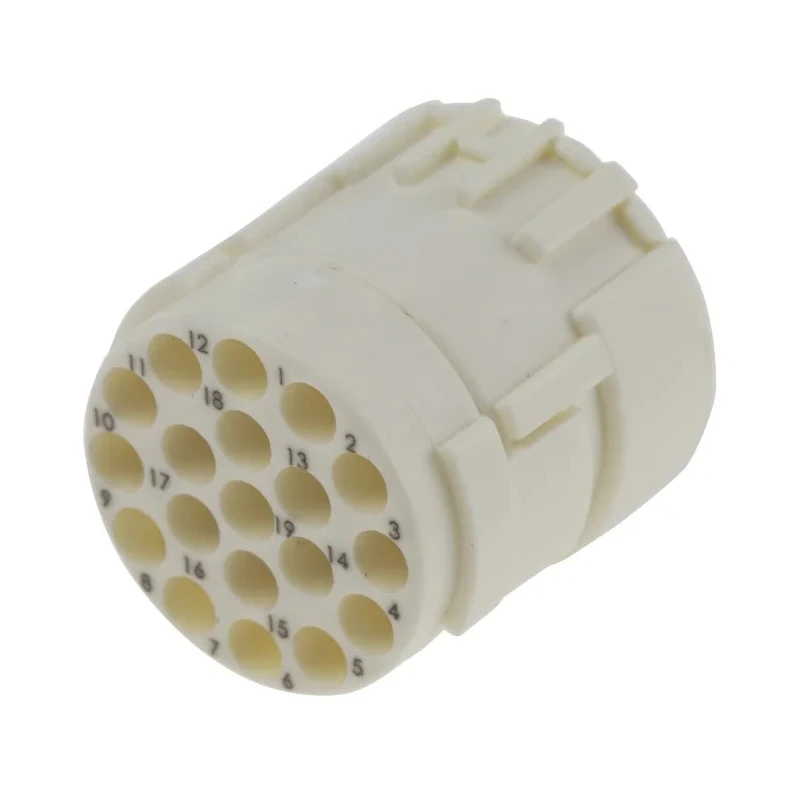

HARTING Circular Connector Insert 19 Contacts Cable M23 Connector Plug Female IP67 IP69K Han M23 Series 09151193101
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 100V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 10A |
| IP Rating | IP67, IP69K |
| Mount Type | Cable |
| Housing Material | Copper |
| Series | Han M23 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 19 |
| Number of Contacts | 19 |
| Contact Gender | Female |
| Shell Size | 17 mm |
| Mating Type | Push Pull |
| Connector Size | M23 |
| Plug/Socket | Plug |
Key Features
- Supports 19 contacts for high-density connectivity.
- Suitable for cable mounting with M23 connector size standards.
- Rated current of 10A and voltage rating of 100V.
- Features a robust copper housing ensuring durability.
- Push-pull mating system with crimp termination for reliable connections.
- Operates effectively between -40°C to 125°C temperature range.
- Provides straight orientation for easy assembly without tools.
- Designed to meet Han M23 series for compatibility.
Product Description
HARTING 09151193101 Circular Connector Insert is a 19-contact cable plug designed to meet industrial circular connector standards with M23 size. This insert features a female contact gender housed in a copper shell, offering high durability and excellent electrical performance.
Rated for a current capacity of 10 amperes and a voltage rating of 100 volts, this connector supports robust connectivity in harsh environments. It has an IP67 and IP69K protection level, guarding against dust and water ingress, making it suitable for rigorous industrial uses.
The connector supports a temperature range from -40°C to 125°C, allowing reliable operation in extreme conditions. Equipped with a push-pull mating system and crimp termination type, it provides easy, tool-less assembly and maintenance.
Its straight orientation and compliance with Han M23 series standards ensure seamless integration with related components. The housing material is copper, providing excellent conductivity and mechanical strength.
This product is manufactured in Germany, ensuring high quality and precision engineering aimed at industrial, manufacturing, automotive, and automation sectors. It is ideal for applications that demand secure, high-density circular connections.
Supports 19 contacts for high-density connectivity. Suitable for cable mounting with M23 connector size standards. Rated current of 10A and voltage rating of 100V. Features a robust copper housing ensuring durability. Push-pull mating system with crimp termination for reliable connections.
Operates effectively between -40°C to 125°C temperature range. Provides straight orientation for easy assembly without tools. Designed to meet Han M23 series for compatibility. Female contact gender in plug configuration ensures secure connections.
Browse the full range of circular connectors and accessories at EnvMart for industrial and electronic components solutions.
Explore more products in our Circular Connector Inserts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a rated current of 10A and a voltage rating of 100V.
It operates effectively between -40°C to 125°C, allowing for reliable performance in extreme conditions.
It features a crimp termination type, which allows for secure connections and easy assembly.
This model has an IP67 and IP69K rating, providing protection against dust and water ingress.
It supports 19 contacts, facilitating high-density connectivity.
The housing is made of copper, which ensures excellent conductivity and mechanical strength.
It provides a straight orientation for easy assembly without the need for tools.
Yes, it is designed for cable mounting and complies with M23 connector size standards.
It utilizes a push-pull mating system, ensuring reliable connections during use.
This model is part of the Han M23 series, ensuring compatibility with related components.
It is manufactured in Germany, ensuring high quality and precision engineering.
The shell size of this connector is 17 mm, which is standard for M23 connectors.
