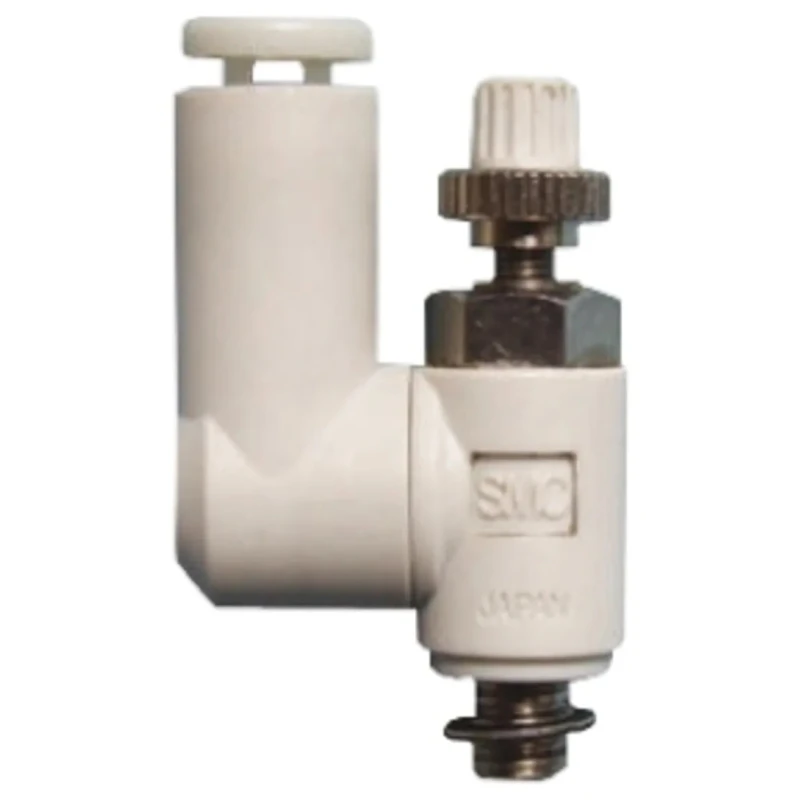

SMC AS Series Pneumatic Speed Controller, Brass Electroless Nickel Plated M3 x 0.5 Threaded Inlet, 4 mm AS1301F-M3-04
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Material | Brass (Electroless Nickel Plated) |
| Maximum Operating Pressure | 1 Mpa |
| Inlet Connection Type | M3 |
| Outlet Connection Type | Threaded |
| Model | AS1301F-M3-04 |
| Series | AS |
| Maximum Operating Temperature | 60°C |
| Sub Type | Speed Controller |
| Minimum Operating Temperature | -5°C |
| Proof Pressure | 1.5MPa |
| Inlet Connection Size | M3 x 0.5 |
| Inlet Thread Standard | M |
| Minimum Operating Pressure | 0.1MPa |
| Outlet Connection Size | 4 mm |
Key Features
- Brass body with electroless nickel plating ensures corrosion and wear resistance.
- M3 x 0.5 threaded inlet allows secure connection of small-bore pneumatic tubing.
- Threaded 4 mm outlet provides direct attachment to fittings and tubing.
- Operational pressure range from 0.1 MPa to 1 MPa for varied flow control applications.
- Rated proof pressure of 1.5 MPa supports transient pressure conditions safely.
- Temperature range from -5°C to 60°C suits diverse ambient environments.
- Compact design ideal for regulating miniature pneumatic cylinders and actuator speed.
- Commonly used in pick-and-place automation, pneumatic manifolds, and instrument air lines.
Product Description
SMC AS1301F-M3-04 pneumatic speed controller is a precision component designed to regulate the flow rate of compressed air in pneumatic actuator systems, thereby controlling motion speed and ensuring accurate actuator velocity for industrial automation.
The AS series model features a corrosion-resistant brass body plated with electroless nickel, enhancing durability in demanding industrial environments. The inlet connection employs a secure M3 x 0.5 threaded fitting, suitable for direct inline installation of small-diameter pneumatic tubing. The outlet features a threaded 4 mm diameter connection compatible with standard pneumatic accessories.
This speed controller supports an operating pressure range between 0.1 MPa and 1 MPa, with a proof pressure rating up to 1.5 MPa for withstanding sudden pressure spikes. Its operating temperature ranges from -5°C to 60°C, enabling use in diverse ambient conditions commonly found in manufacturing and automation facilities.
Applications include speed regulation of miniature pneumatic cylinders, fine-tuning actuator deceleration in pick-and-place machinery, and flow adjustment in pneumatic manifolds and instrument air lines. It provides essential control for valve pilot exhaust flows and precise flow tuning in complex automation control systems.
Brass body with electroless nickel plating ensures high corrosion and wear resistance. M3 x 0.5 threaded inlet enables secure small-bore pneumatic connections. Threaded 4 mm outlet allows direct fitting attachment. Supports operational pressure from 0.1 MPa to 1 MPa and proof pressure of 1.5 MPa.
Temperature tolerance from -5°C to 60°C for robust ambient operating conditions. Compact profile suitable for miniature pneumatic cylinder speed regulation. Widely used in pick-and-place automated equipment and pneumatic manifolds.
Not intended for hazardous area installation due to lack of certification.
This product is made in Japan to strict quality standards, ideal for industrial automation, manufacturing facilities, and pneumatic control systems. Explore more Pneumatic Function Fittings for your automation needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1 MPa.
This speed controller operates within a temperature range of -5°C to 60°C.
It features an M3 x 0.5 threaded inlet connection for secure attachment.
The proof pressure rating is 1.5 MPa, allowing it to withstand transient pressure conditions safely.
The outlet connection size is 4 mm, allowing for direct attachment to fittings and tubing.
It is commonly used in pick-and-place automation, pneumatic manifolds, and instrument air lines.
The body is made of brass and is electroless nickel plated for enhanced corrosion resistance.
It has a compact design that is ideal for regulating miniature pneumatic cylinders and actuator speed.
The operating pressure range is from 0.1 MPa to 1 MPa.
This speed controller is made in Japan to strict quality standards.
It regulates the flow rate of compressed air, controlling motion speed and ensuring accurate actuator velocity.
The inlet connection uses the M thread standard.
