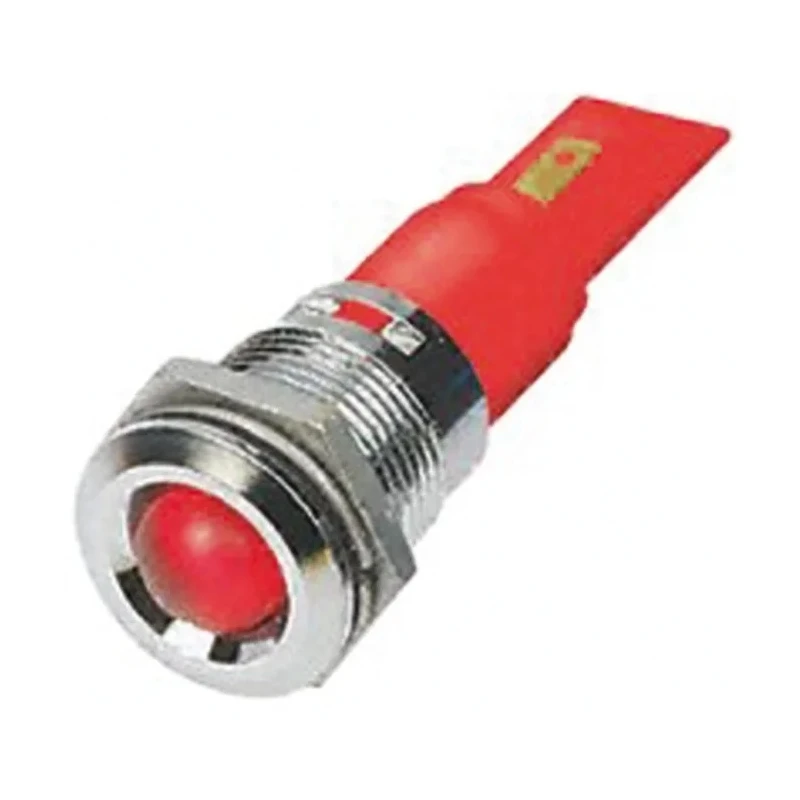

RS PRO Red Panel Mount Indicator 110V AC 6mA Solder Tab Termination Prominent Bezel 208-043

RS PRO 208-043 Red Panel Mount Indicator is a robust LED indicator designed for industrial and electronic panel mounting applications. It operates on 110V AC voltage with a low current consumption of 6mA, ensuring energy-efficient operation.

This indicator is built with a silver prominent bezel style made from satin chrome, housing a 16mm red diffused lens that provides high brightness for clear visual feedback. Its solder tab termination ensures secure and convenient installation on panels.

Constructed to meet IP67 standards, this indicator is dust-tight and capable of withstanding immersion in water up to 1 meter depth for 30 minutes, making it ideal for harsh industrial environments. The device supports operating temperatures between -25°C and +60°C, providing reliable performance across a wide temperature range.

The life expectancy of this LED panel indicator is approximately 60,000 hours, supporting long-term maintenance-free use. The 22mm mounting hole diameter fits standard panel cutouts, and the chrome bezel adds an aesthetic finish while providing durability.

Additional features include 0.11 inch (2.8 x 0.8 mm) terminals suitable for solder tab connections and two negative terminals allowing daisy chaining, facilitating flexible wiring arrangements.

This panel mount indicator is suitable for various industrial, manufacturing, electronic, and control panel applications where visual status indication is necessary. Its compact size and IP67 rating ensure applicability in demanding environments such as automation control systems, machinery status panels, and power distribution boards.

Designed with a 16mm coloured diffused red lens for optimal light output. Equipped with a 25mm diameter chrome bezel providing a prominent and durable mounting. High brightness LED offering long life expectancy of 60,000 hours.

IP67 rated to withstand harsh environments with dust and water resistance. Suitable for operating temperatures ranging from -25°C to +60°C. Features 0.11in (2.8 x 0.8mm) solder tab terminals for reliable connection. 22mm diameter mounting hole size for standardized panel installation.

Chrome bezel and compact robust construction ensure durability and ease of installation. Two negative terminals available to allow daisy chaining of indicators. Explore more high-quality Panel Mount Indicators and electronic components at EnvMart for industrial and electrical applications.
