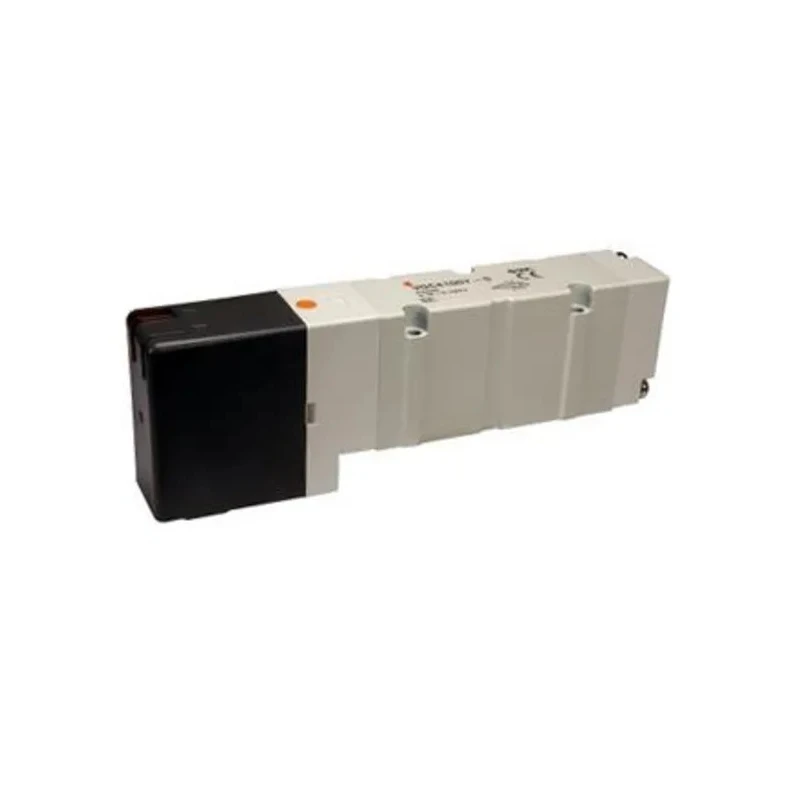

SMC Pneumatic Solenoid Pilot-Operated Control Valve 2/2 NC Solenoid M5 x 0.8 Port Size 24V dc VQC4000 Series
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Body Material | Die Cast Zinc |
| Maximum Operating Pressure | 0.7 Mpa |
| Height | 163mm |
| Length | 209mm |
| Model | VQC4000 |
| Enclosure | dust proof (conforms to IP67) |
| Operating Pressure | 1.0MPa [0.7MPa (low wattage)] |
| Width | 101.2mm |
| Mount Type | Base |
| Series | VQC4000 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Port Type | Cylinder, EXH, Support |
| Number of Positions | 2 |
| Port Size | M5 x 0.8 |
| Seal Material | Metal |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Fluid | air/inert gas |
| Standards/Approvals | RoHS |
| Connection Thread Standard | M5 x 0.8 |
| Minimum Pilot Pressure | 0.15MPa |
| Valve Function | 2/2 NC |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 0.4W |
| Effective area (Cv) | 1.7 metal seal, 2.0 rubber seal |
Key Features
- The valve function is 2/2 NC, ensuring reliable normally closed operation.
- Constructed with a die cast zinc body and metal seal material for enhanced durability.
- Operates efficiently at a maximum pressure of 0.7 Mpa and pilot pressure range of 0.15MPa to 0.7MPa.
- Features base mounting type and single solenoid actuation for easy installation and maintenance.
- Designed for use with air or inert gas fluids and protected by a dust-proof enclosure conforming to IP67 standards.
- The valve offers excellent response times and a long service life with five port design.
- Operating temperature range is from -10°C to a maximum of 50°C.
- The effective flow area (Cv) is 1.7 for metal seal and 2.0 for rubber seal variants.
Product Description
SMC VQC4200-51 Pneumatic Solenoid Pilot-Operated Control Valve from the VQC4000 Series features a 2/2 normally closed (NC) solenoid with a port size of M5 x 0.8 and operates on 24V dc voltage. This pilot-operated valve is engineered for precise pneumatic control in industrial applications.
The body is constructed from die cast zinc with a robust metal seal, offering excellent durability and resistance to wear. It includes five ports with cylinder, exhaust, and support port types. The valve mounts via base mount design facilitating stable installation in pneumatic systems.
Operating parameters include a maximum operating pressure of 0.7 Mpa and pilot pressure from 0.15MPa to 0.7MPa, ensuring effective control in various pneumatic environments. The valve is suitable for air and inert gases, protected by a dust-proof enclosure compliant with IP67 standards for moisture and dust resistance.
With an effective flow coefficient (Cv) of 1.7 for metal seals and 2.0 for rubber seals, this valve provides efficient airflow control. The solenoid consumes minimal power at 0.4W, contributing to energy-efficient operations. The unit is RoHS compliant and designed without hazardous area certification but suitable for general industrial pneumatic control.
Dimensions are compact with a length of 209mm, height of 163mm, and width of 101.2mm, allowing for integration into confined spaces. The valve functions at ambient temperatures from -10°C to 50°C with two positions enabled for flexible pneumatic control requirements.
The valve function is 2/2 normally closed for dependable control. The body is die cast zinc, ensuring structural integrity and longevity. Single solenoid actuation simplifies installation and operation. Operates at 24V dc with a power consumption of 0.4W.
Complies with RoHS environmental standards and dust-proof to IP67 rating. Designed for use with air and inert gases in industrial pneumatic systems. Compact design with dimensions facilitating versatile installations. Five ports including cylinder, exhaust, and support connections.
Effective flow area Cv values of 1.7 and 2.0 for metal and rubber seals respectively. Operates under pressure range suitable for low wattage applications (0.7MPa max operating pressure).
This SMC Pneumatic Solenoid Valve is ideal for industrial automation, manufacturing lines, fluid power control, and HVAC pneumatic systems where precise on/off valve control is essential. It supports flexible manifold configurations with multi-pin connector options to expedite maintenance and system expansion. Browse the Pneumatic Solenoid Valves category at EnvMart for comprehensive industrial valve solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 0.7 MPa.
The port size of this model is M5 x 0.8.
It is designed for use with air and inert gas fluids.
The solenoid consumes 0.4W of power.
The effective flow area (Cv) is 1.7 for metal seals and 2.0 for rubber seals.
The dimensions are 209mm in length, 163mm in height, and 101.2mm in width.
The operating temperature range is from -10°C to a maximum of 50°C.
This valve has five ports, including cylinder, exhaust, and support port types.
It uses single solenoid actuation for operation.
Yes, it is RoHS compliant and features a dust-proof enclosure that conforms to IP67 standards.
The minimum pilot pressure required for this valve is 0.15 MPa.
The valve features a base mounting type, facilitating stable installation.
