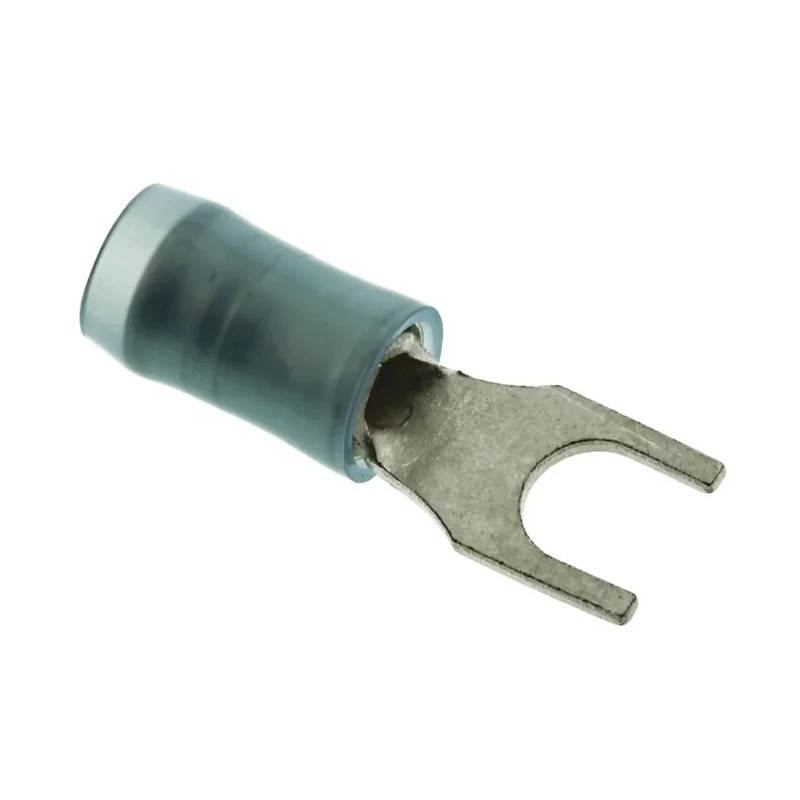

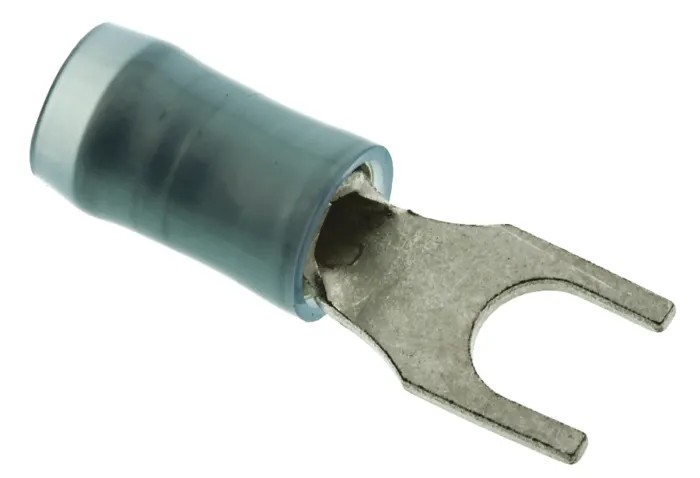

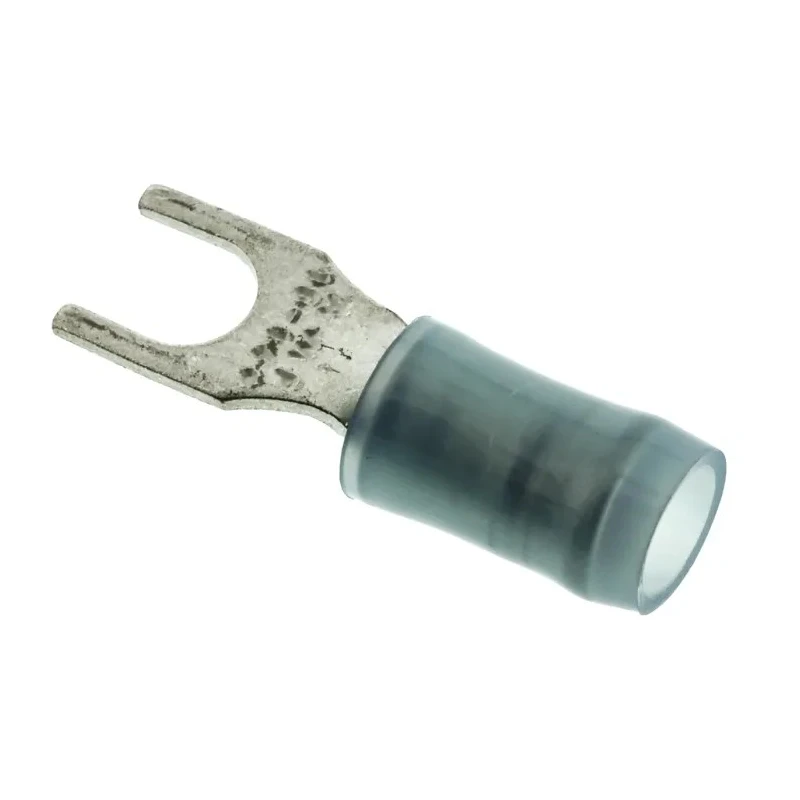

TE Connectivity PIDG Insulated Fork Terminal 16 AWG to 14 AWG M4 Stud Size Nylon Blue 130531

TE Connectivity 130531 PIDG Insulated Fork Terminal is an insulated wire terminal designed for safe and effective electrical connections using 16 AWG to 14 AWG wire sizes. It features a nylon blue insulation sleeve and an M4 stud size for compatibility with a variety of terminal blocks and connectors.

The terminal's body is made of high conductivity copper with a tin contact plating to ensure excellent electrical contact and corrosion resistance. The copper sleeve surrounding the barrel supports the insulation after crimping, preventing damage to the wire insulation and conductor. Serrations in the wire barrel increase tensile strength and secure contact after crimping.

The nylon insulation sleeve is color-coded blue to assist with rapid wire size identification and tooling. The funnelled wire entry simplifies wire insertion, making this terminal suitable for high-speed production environments. With a precise overall length of 20.65mm, a width of 6.35mm, and a thickness of 0.78mm, it guarantees a reliable and uniform crimp connection.

These PIDG terminals are constructed for demanding industrial and commercial electrical applications such as instrumentation, control systems, lighting, power supplies, panel manufacturing, transportation equipment, lifting gear, motors, and aerospace electronics.

Manufactured in Hungary, this terminal meets TE Connectivity’s high standards for consistency and durability. It complies with many industry standards though no specific approvals are declared.

The terminal features a high conductivity copper body for optimal electrical performance. A copper sleeve enhances wire insulation support, preventing fraying and conductor breakage. Serrations inside the wire barrel ensure maximum contact and tensile strength after crimping.

The nylon insulation sleeve is color-coded blue for easy wire size identification and tooling compatibility. A funnelled wire entry design facilitates fast and easy wire insertion during assembly. Measuring 20.65mm in overall length with a 6.35mm width and 0.78mm thickness for precise fit.

This product meets stringent reliability requirements suitable for harsh circuit environments. Ideal for applications including instrumentation, control panels, lighting, power supplies, and aerospace. Manufactured in Hungary under TE Connectivity’s stringent quality standards.
