Siemens KTP1200 Basic SIMATIC Series HMI Panel 304.8 mm TFT Display 1280 x 800 pixel KTP1200

Free Delivery in India | Lowest Global Shipping Charges

Siemens KTP1200 Basic SIMATIC Series HMI Panel 304.8 mm TFT Display 1280 x 800 pixel KTP1200

Name: Siemens KTP1200 Basic SIMATIC Series HMI Panel 304.8 mm TFT Display 1280 x 800 pixel KTP1200
Brand: Siemens
SKU: 148023
Price: 3919.27 USD
Availability: InStock



Category HMI Terminal Brand Siemens Condition New

Specifications

Country of Origin	China
Display Type	TFT
Brand	Siemens
Length	330mm
Model	KTP1200
Depth	60mm
IP Rating	IP65
Width	245mm
Series	KTP1200 Basic, SIMATIC
Number Of Ports	2
Display Resolution	1280 x 800 pixel
Maximum Operating Temperature	50°C
Port Type	Ethernet, USB
Minimum Operating Temperature	0°C
Interfaces	language switching
Hazardous Area Certification	ATEX, IECEx
Standards/Approvals	KC, cULus, CE, RCM
Onboard Memory	10, 256MB
Diagonal Display Size	304.8mm

Key Features

High-resolution TFT display with 64,000 colours for clear visualization.
IP65 rated enclosure protects against dust and low-pressure water jets.
Supports Ethernet and USB ports for peripheral connectivity.
Onboard memory of 256MB enables efficient data storage and archiving.
Operating temperature range from 0°C to 50°C ensures reliable performance.
Backlighting with 100% dimmable brightness enhances usability in various lighting conditions.
Enables portrait configuration for versatile installation options.
Features standard software functions like alarm logging, recipe management, and language switching.

Product Description

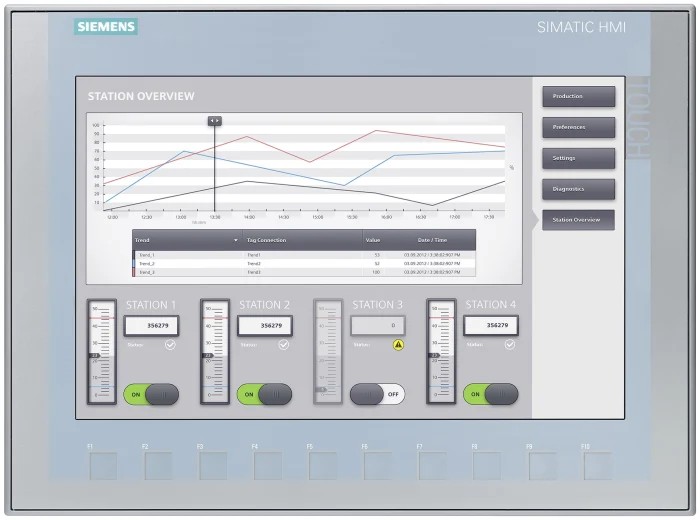

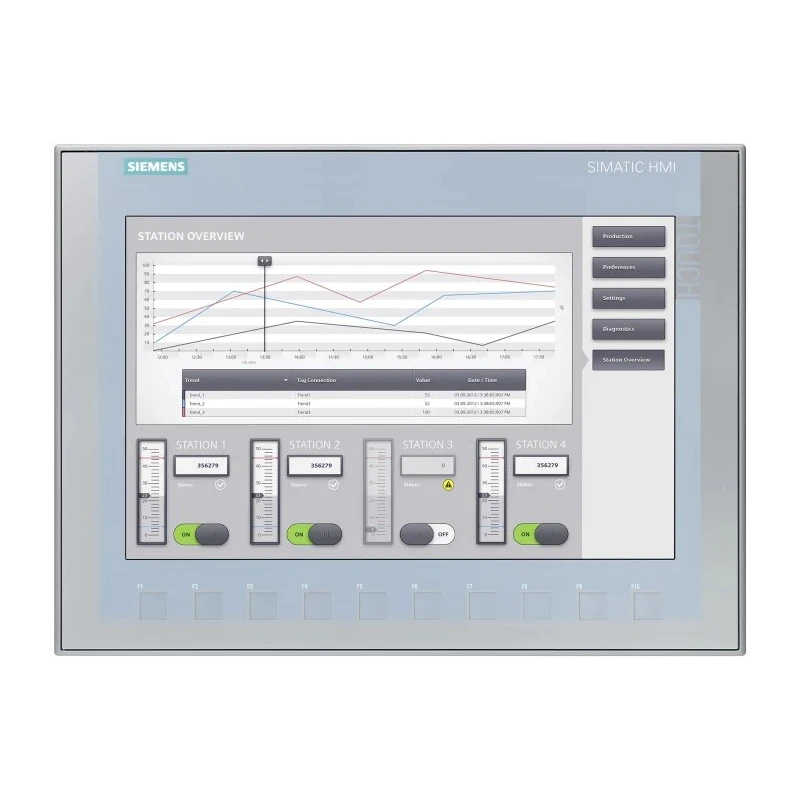

Siemens KTP1200 Basic SIMATIC Series HMI Panel features a 12-inch (304.8 mm) TFT color display with a resolution of 1280 x 800 pixels, providing vivid and sharp visualization for a variety of industrial control applications.

This HMI panel is designed for entry-level use in mechanical engineering and compact plant automation, delivering improved usability with configurable keys, a responsive touch screen, and support for Ethernet and USB interfaces.

The device supports connection of peripherals such as a mouse, keyboard, and barcode scanner via USB, facilitating smooth data archiving and operational flexibility. Encased in an IP65-rated enclosure, the panel offers protection from dust ingress and low-pressure water jets, making it suitable for harsh industrial environments.

Operating temperature ranges from 0°C to 50°C ensure stable performance across diverse working conditions. Standard software features include alarm logging, recipe management, and language switching to enhance process control efficiency.

Portrait configuration capabilities provide versatility in mounting and usage scenarios. This HMI is configured using the SIMATIC WinCC system, enabling quick, user-friendly visualisation application creation to suit specific automation requirements.

High-resolution TFT color display with 64,000 colours. IP65 enclosure for dust and water jet resistance. Ethernet and USB ports for connectivity. 256MB onboard memory for data operations. Wide operating temperature range: 0°C to 50°C.

Supports portrait and landscape configurations. Advanced software functions including alarm logging and recipe management. User-friendly SIMATIC WinCC configuration system. Ideal for mechanical engineering and compact plant automation.

Energy-efficient with fully dimmable backlighting.

This Siemens HMI Terminal is ideal for industrial automation, manufacturing processes, HVAC systems, and laboratory settings. Explore more Siemens HMI panels and industrial automation solutions at EnvMart to enhance your plant's operational capabilities.
