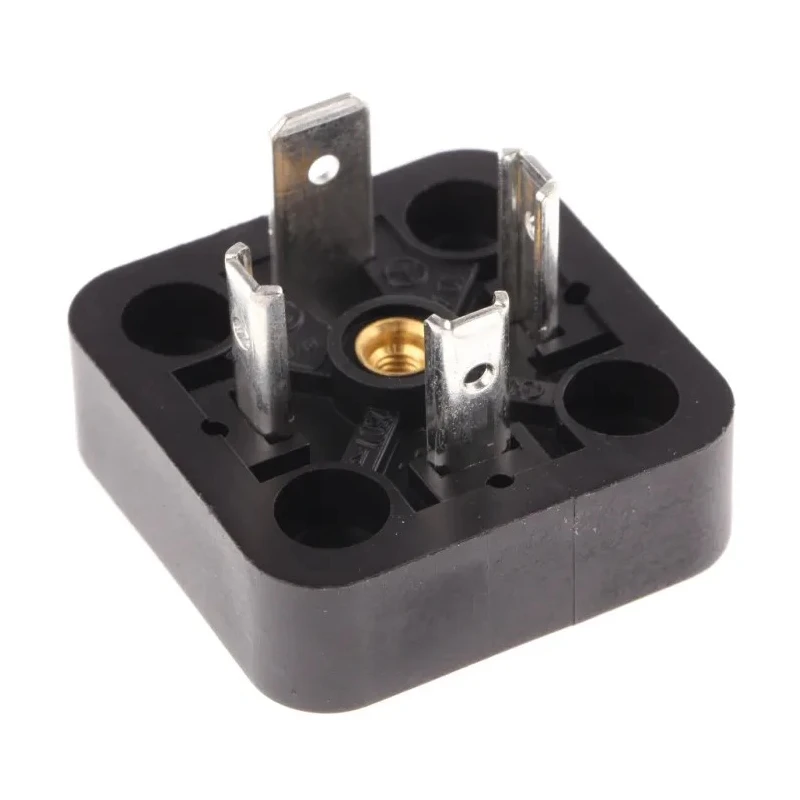

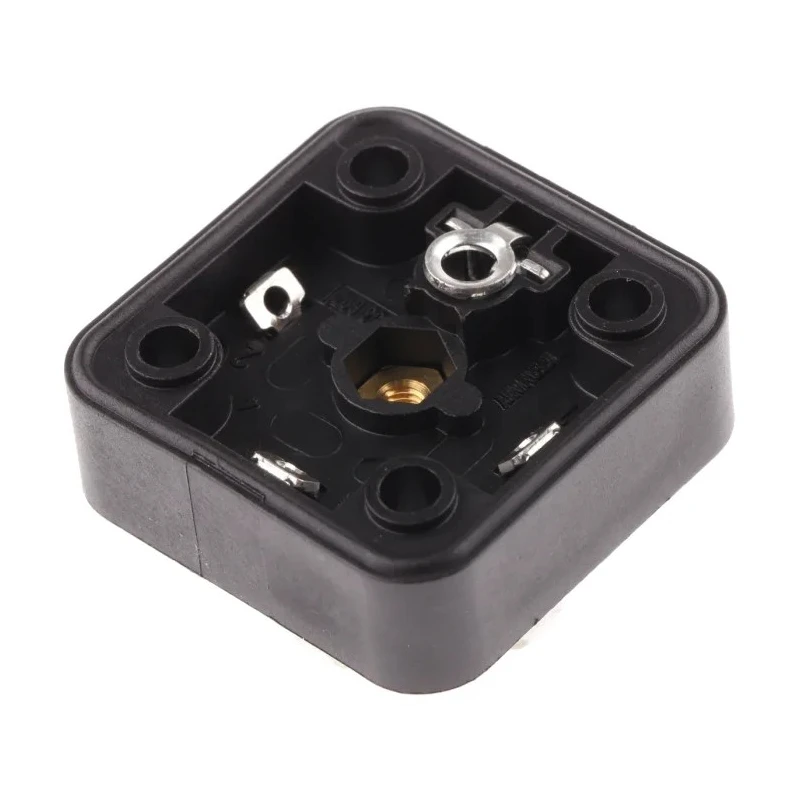

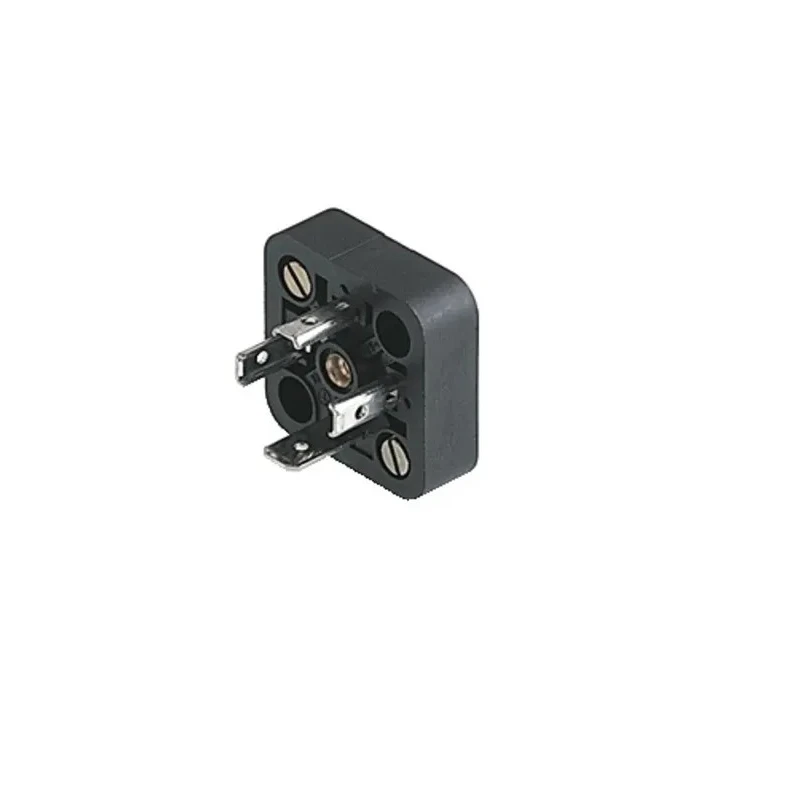

Hirschmann Solenoid Valve Connector DIN 43650 A 3P+E Female, 16A Current, 400V AC/DC 932968100 GSA 3000 N

Free Delivery in India | Lowest Global Shipping Charges

Hirschmann Solenoid Valve Connector DIN 43650 A 3P+E Female, 16A Current, 400V AC/DC 932968100 GSA 3000 N

Name: Hirschmann Solenoid Valve Connector DIN 43650 A 3P+E Female, 16A Current, 400V AC/DC 932968100 GSA 3000 N
Brand: Hirschmann
SKU: 147798
Price: 3.43 USD
Availability: InStock



Category DIN 43650 Solenoid Connector Brand Hirschmann Condition New

Specifications

Country of Origin	Germany
Voltage	400, 400V ac
Brand	Hirschmann
Colour	Black
Current	16A
Model	932968100 GSA 3000 N
IP Rating	IP65
Mount Type	Screw
Series	GSA
Termination Type	Screw
Standards/Approvals	ISO 4400, UL, DIN EN 175301-803-B, cURus (UL2238)), SEV, ISO 15217, VDE, ISO 6952, CSA, DIN EN 175301-803-A, DIN EN 175301-803-C
Pole Format	3P+E
Contact Gender	Male
Connector Gender	Female
DIN 43650 Type	DIN 43650 A

Key Features

Constructed with a durable PA housing resistant to abrasion and corrosion.
Rated IP65, the connector is protected against dust and water jets from any direction.
Designed for screw mounting with female connector gender and male contacts.
Supports up to 50 mating cycles for reusable and sustainable use.
Complies with international standards including ISO 4400, UL, VDE, and CSA.
Operating temperature range from -40°C to +125°C suitable for harsh environments.
Provides insulation to ensure electric shock protection during use.
Applications include food and beverage industry, medical centers, textile industry, and aerospace technology.

Product Description

Hirschmann 932968100 GSA 3000 N solenoid valve connector is a robust electronic power connector conforming to DIN 43650 A standard. It operates at 400 V AC/DC voltage and carries a 16A current, making it suitable for demanding industrial electrical connections.

The connector features a 3P+E pole format with a female connector gender and male contacts. It uses a screw termination type for secure mounting and connection. Its housing is made of durable PA material that resists abrasion and corrosion to extend service life, even in challenging industrial environments.

The product carries an IP65 rating, offering complete protection against dust ingress and water jets from any direction. This sealing makes it ideal for food and beverage industries, hospitals, medical centers, textile, and aerospace sectors requiring reliable and safe electrical connections.

Hirschmann's connector supports up to 50 mating cycles, promoting reuse and minimising waste. Its operating temperature range from -40°C to +125°C allows use in harsh conditions without compromising performance. Additionally, the connector ensures user safety by providing insulation against electric shock risks.

Durable PA housing for abrasion and corrosion resistance. IP65 rating for dust and water jet protection. Screw mount type with female connector gender. Up to 50 mating cycles for reusability. Conforms to ISO 4400, UL, VDE, CSA and other standards.

Wide operating temperature range: -40°C to +125°C. Insulated design for electric shock protection. Applications in food, medical, textile, and aerospace industries.

Manufactured in Germany, this Hirschmann solenoid valve connector represents quality and reliability in industrial power connection applications. For further components and connectors, browse the Hirschmann brand and related power connectors at EnvMart.
