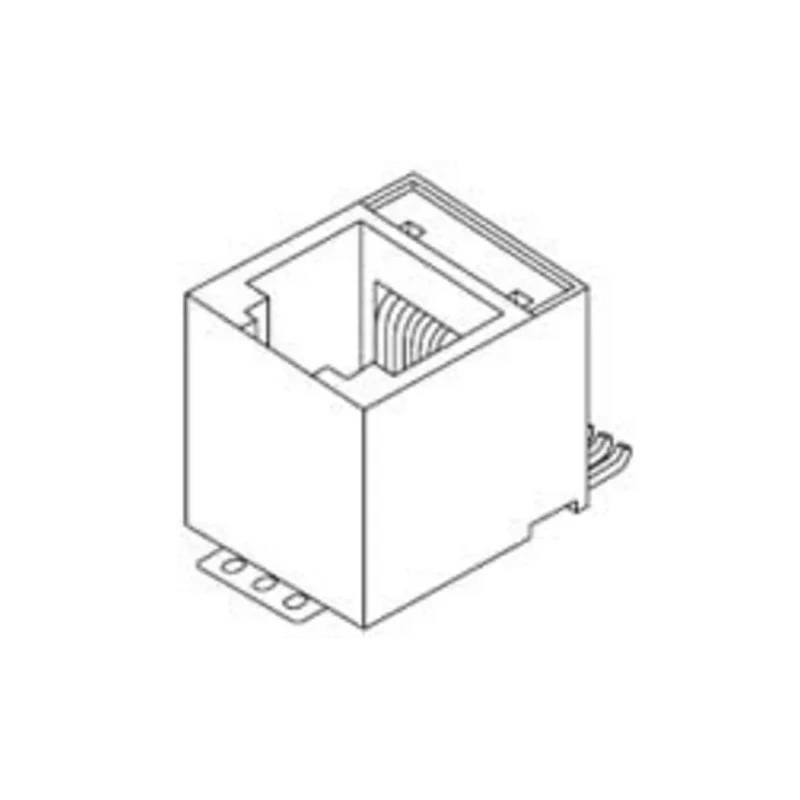

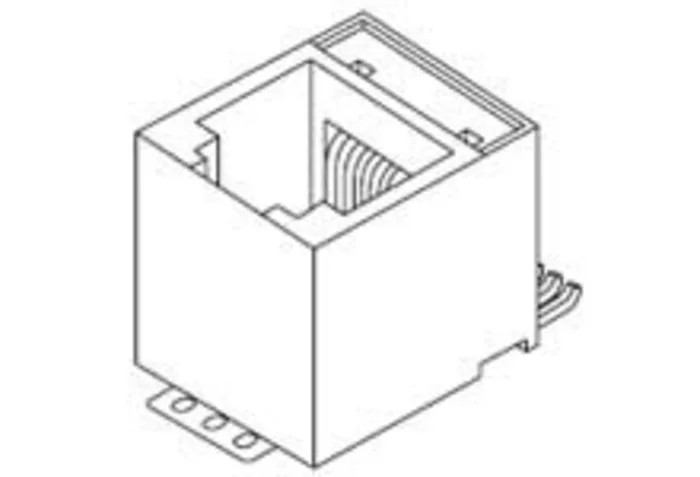

Molex RJ11 Female Modular Jack Connector, Surface Mount, Cat3 Unshielded Vertical 2 Port 1 Way RJ11
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Length | 13.21mm |
| Model | RJ11 |
| Depth | 12.7mm |
| Connector Type | Modular Jack |
| Number Of Ways | 1 |
| Width | 15.08mm |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 85513 |
| Number Of Ports | 2 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Unshielded |
| Contact Plating | Gold over Nickel Palladium |
| Connector Gender | Female |
| LAN Category | Cat3 |
| Ethernet Connector Type | RJ11 |
Key Features
- Supports Category 3 (Cat3) LAN applications for voice and data.
- Surface mount style ensures stable PCB attachment.
- Unshielded design suitable for typical telecommunication environments.
- Vertical orientation allows top entry connection convenience.
- Features gold over nickel palladium plating for reliable contact performance.
- Compact dimensions with width 15.08mm, depth 12.7mm, and length 13.21mm.
- Contact material made from copper alloy for durability and conductivity.
- Suitable for consumer, office, medical, commercial, and industrial telecommunication applications.
Product Description
Molex RJ11 RJ11 Connector Female Surface Mount is a Cat3 unshielded modular jack designed for high-quality telecommunication and data networking uses. This connector features a 2-port, 1-way vertical orientation with a surface mount for easy PCB integration.
Constructed with copper alloy contacts plated with gold over nickel palladium, it ensures excellent electrical conductivity and durability in diverse applications ranging from consumer electronics to industrial telecom equipment.
The RJ11 connector supports Category 3 LAN standards, making it ideal for voice and low-speed data transmission. It performs reliably under operating temperatures from -40°C up to 85°C, ensuring consistent performance in varied environments.
The compact and low-profile design with dimensions of 15.08mm width, 12.7mm depth, and 13.21mm length fits efficiently into equipment designs requiring minimal space. Its solder termination type guarantees a secure and stable connection on circuit boards.
Supports Category 3 (Cat3) LAN for voice and data applications. Surface mount for solid PCB attachment and durability. Vertical, top entry modular jack for convenient cabling. Copper alloy contacts provide high conductivity and robustness.
Gold over nickel palladium plating prevents corrosion and improves contact quality. Operating temperature range from -40°C to 85°C suitable for diverse industrial conditions. No magnetic or LED components included, ensuring simplicity.
Compact footprint optimized for space-constrained designs. Termination by solder ensures stable electrical connections. Widely employed across industrial, commercial, medical, and office telecommunication and networking equipment.
Explore more Ethernet Connectors and related products at EnvMart to fulfill your professional electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a vertical orientation, allowing for top entry connection convenience.
The dimensions are 15.08mm in width, 12.7mm in depth, and 13.21mm in length.
It can operate at a maximum temperature of 85°C.
It utilizes a solder termination type, ensuring a stable electrical connection on circuit boards.
The contacts are made from copper alloy and are plated with gold over nickel palladium for improved conductivity and corrosion resistance.
This model features 2 ports, allowing for multiple connections.
It supports Category 3 (Cat3) LAN applications for voice and data transmission.
This model is unshielded, making it suitable for typical telecommunication environments.
The minimum operating temperature is -40°C.
It is suitable for consumer, office, medical, commercial, and industrial telecommunication applications.
The country of origin for this connector is India.
This model is a female connector.
