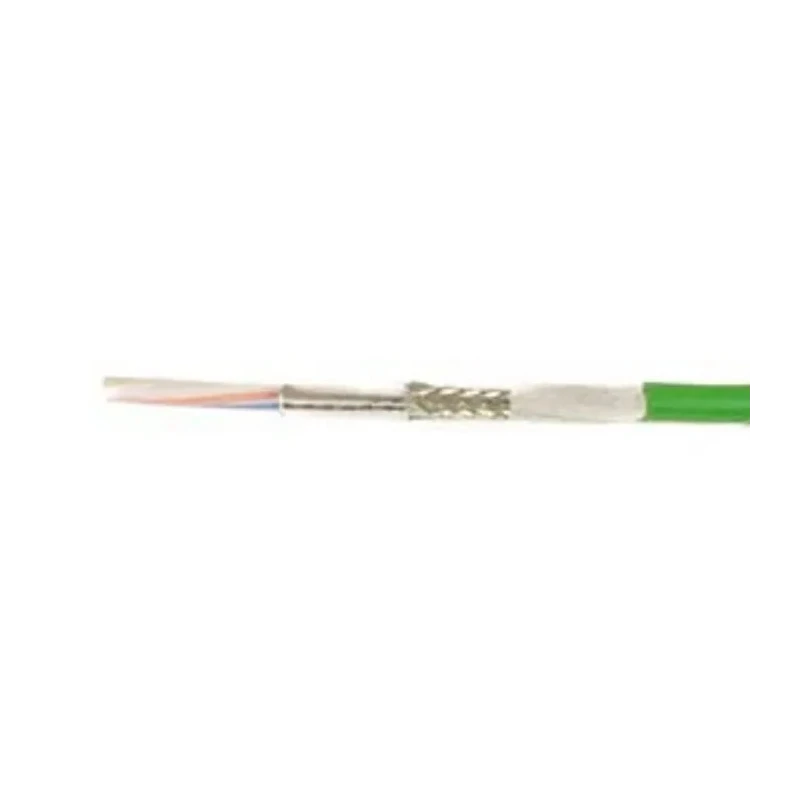

Alpha Wire Alpha Essentials Flexing Shielded Screened Cat5 Ethernet Cable 4 Core Green 152m 300V ac Cat5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 22AWG |
| Model | Cat5 |
| Cable Length | 152m |
| Series | Alpha Essentials Flexing Ethernet |
| Outside diameter | 0.26mm |
| Maximum Operating Temperature | 75°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Sub Type | Cat5 |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyurethane |
| Shield Type | Shielded |
| Standards/Approvals | CE, cULus Recognised, EN 60811-2-1, FT2, ISO/IEC 11801, PROFINET |
| Jacket Colour | Green |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 34AWG |
| Size of Strands | 34AWG |
| LAN Category | Cat5 |
| Terminated/Unterminated | Unterminated |
Key Features
- Constructed with 4 cores and 19 stranded tin copper wires per core for enhanced signal integrity.
- Features a polyurethane green jacket that ensures durability and flexibility.
- Suitable for operating temperatures from -20°C up to 75°C.
- Complies with standards including CE, cULus Recognised, and ISO/IEC 11801.
- Designed for 300V ac voltage operation with a 0.26mm outside diameter.
- Low Smoke Zero Halogen (LSZH) fire behaviour enhances safety in enclosed spaces.
- Shielded and screened construction reduces electromagnetic interference.
- Unterminated cable length of 152 meters for versatile installation options.
Product Description
Alpha Wire Cat5 Ethernet Cable (Model: Cat5, MPN: 74005 GR002) from the Alpha Essentials Flexing series is designed for high-performance networking in demanding environments. The cable features 4 core strands, each composed of 19 strands of 34 AWG tin copper wire, providing excellent conductivity and flexibility.
The outer polyurethane green jacket offers protection against physical and environmental challenges while maintaining flexibility for complex routing. It supports a wide temperature range from -20°C to 75°C, making it well-suited for industrial, automation, and electrical applications.
This Ethernet cable is shielded and screened to minimize interference, complying with rigorous standards such as CE, cULus Recognised, EN 60811-2-1, FT2, ISO/IEC 11801, and PROFINET. It is rated for 300V ac voltage and exhibits Low Smoke Zero Halogen (LSZH) fire safety characteristics, suitable for environments requiring enhanced fire safety measures.
The cable's specifications include a 0.26 mm outside diameter and a 22 AWG cross-sectional area, ensuring reliable data transmission and mechanical performance. Supplied as an unterminated reel of 152 meters, it allows for customized length cuts tailored to specific deployment needs.
Constructed with 4 cores of 19-strand tin copper wires. Polyurethane green jacket material providing durability and flexibility. Operating temperature range from -20°C to 75°C. Meets multiple international standards and approvals for quality and safety.
300V ac voltage rating for reliable operation. Low Smoke Zero Halogen (LSZH) fire behaviour for enhanced safety. Shielded and screened to reduce electromagnetic interference. Unterminated cable length of 152 meters for adaptable installation.
This Alpha Wire Ethernet Cable is ideal for industrial networking, automation systems, manufacturing, and commercial communications infrastructure requiring flexible, shielded Cat5 cable solutions. Browse the Electronics & Electricals category at EnvMart for compatible networking accessories and cables.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this Ethernet cable is 75°C.
This model uses stranded tin copper wire as its conductor material.
It is rated for 300V ac voltage operation.
This Ethernet cable has 4 cores.
The cable is supplied as an unterminated length of 152 meters.
This cable exhibits Low Smoke Zero Halogen (LSZH) fire behaviour, enhancing safety in enclosed spaces.
The outside diameter of the cable is 0.26 mm.
It complies with several standards including CE, cULus Recognised, EN 60811-2-1, FT2, ISO/IEC 11801, and PROFINET.
The jacket material of this cable is polyurethane, which provides durability and flexibility.
This cable is shielded and screened to reduce electromagnetic interference.
The cross-sectional area of the cable is 22 AWG.
This Ethernet cable is suitable for industrial networking, automation systems, and commercial communications infrastructure.
