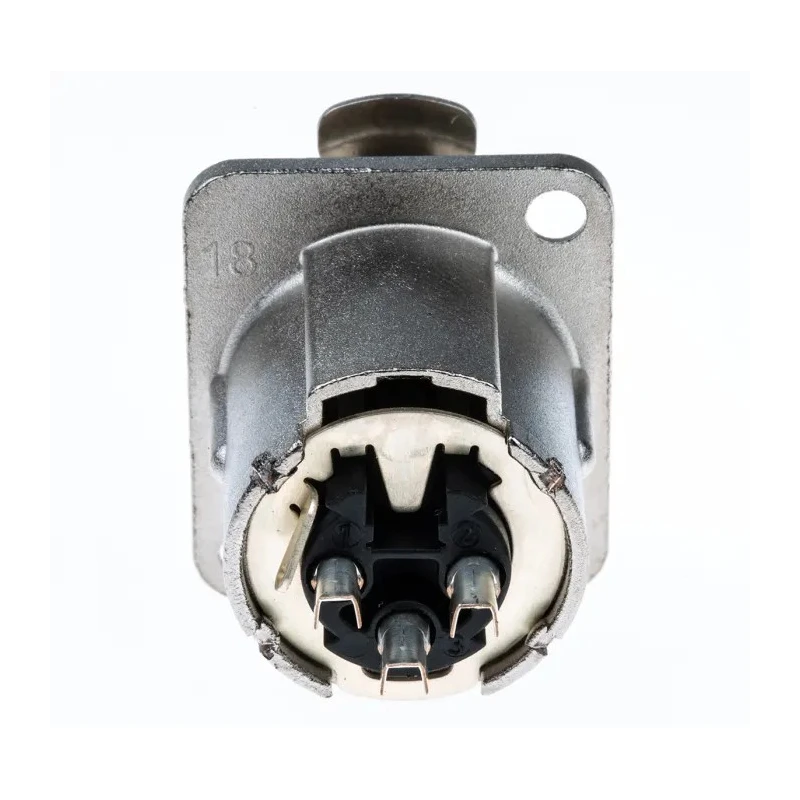

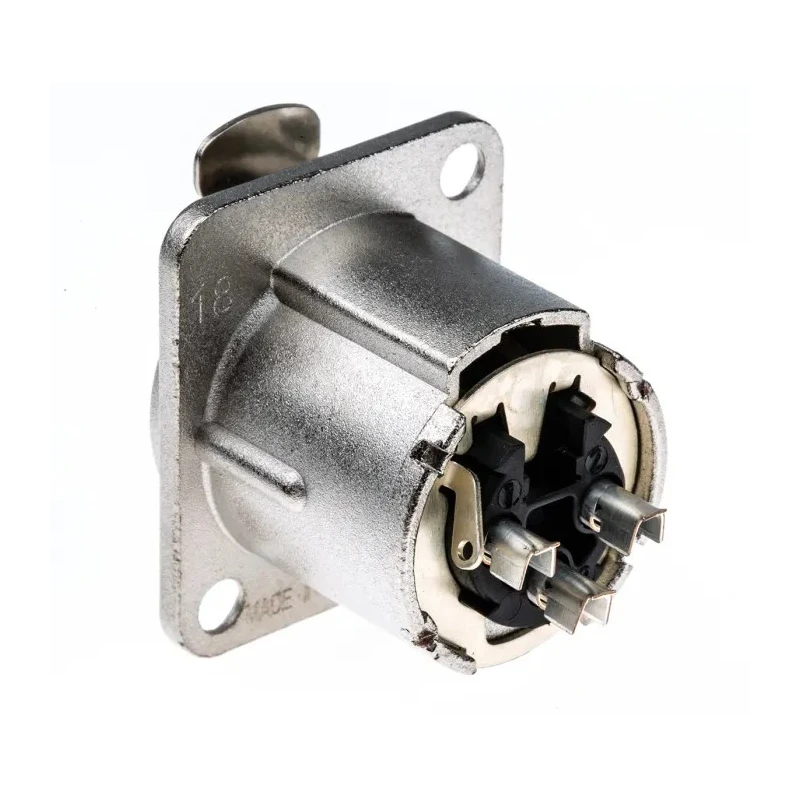

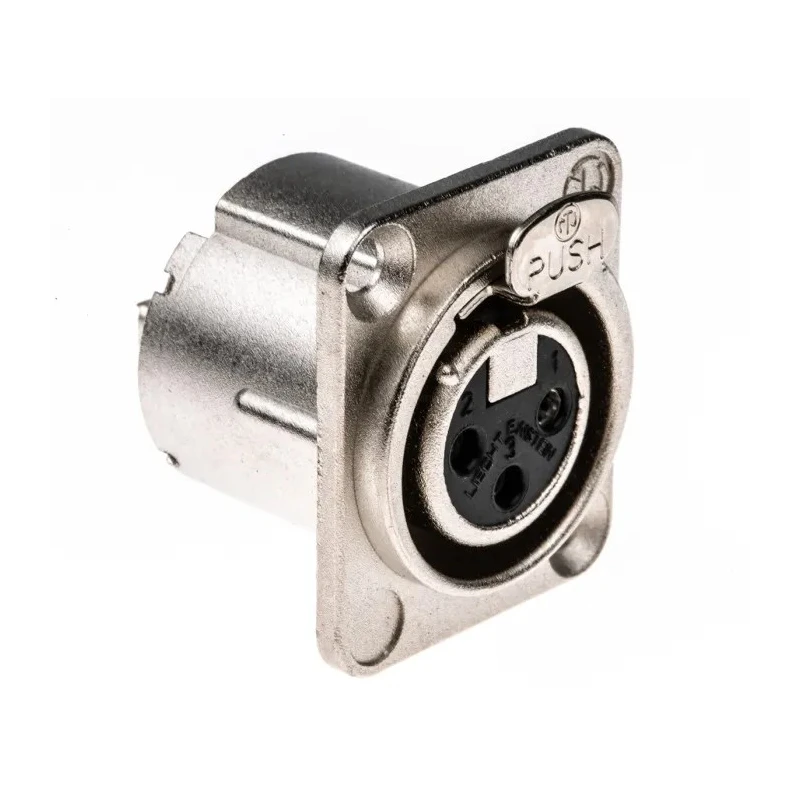

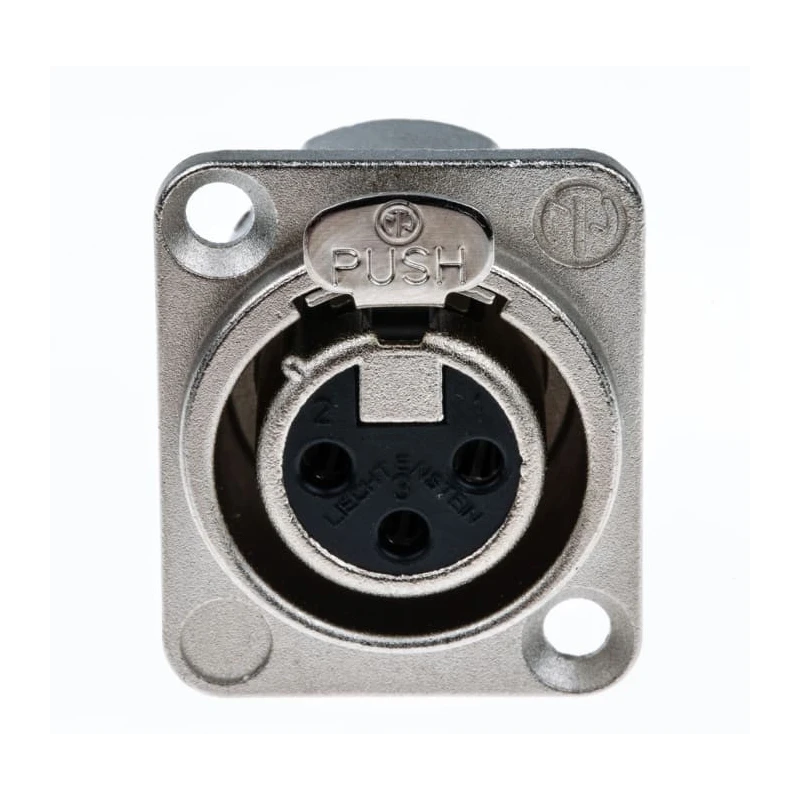

RS PRO Panel XLR Connector, Straight 3-Way Female, 50V, Silver over Nickel Plating NC3FD-LX

Neutrik NC3FD-LX Panel XLR Connector is a high-quality 3-way female panel-mount XLR connector designed for industrial and professional audio, video, and electronic component applications. It operates at 50V with a current capacity of 16A, making it suitable for robust connector use in demanding environments.

This connector features a D-style housing that fits industry-standard D mounting dimensions, ensuring easy installation into panels. The female contact employs a unique cage design incorporating a solder barrier that prevents solder from running into the mating area during termination, enhancing reliability and longevity.

Constructed with bronze contacts plated with silver over nickel, the connector offers excellent electrical conductivity combined with durable corrosion resistance. The housing is made from nylon, providing robustness and insulating properties. With a wide operating temperature range from -30°C to 80°C, this connector performs reliably in a variety of environmental conditions.

The duplex ground contact system improves shielding performance and contact integrity between chassis and cable connectors, protecting against RF interference. The termination involves soldering, facilitated by larger solder contacts that simplify assembly.

This compact all-metal housing panel XLR connector is well suited for industrial installations, laboratory equipment, audio and video interfaces, and other commercial electronics that require dependable, shielded connectors.

The D-style housing provides installation compatibility with industry-standard D mounting dimensions. Duplex ground contact offers excellent contact integrity between chassis and cable connectors. Female contact incorporates a solder barrier to prevent solder contamination in mating areas.

Silver over nickel plating shield contacts for enhanced conductivity and corrosion resistance. Operates reliably with temperatures ranging from -30°C up to 80°C. Housing constructed from durable nylon material for strength and insulation.

Termination type is solder with large solder contacts for simpler assembly. Bronze contacts improve conductivity and longevity. Provides excellent RF protection and shielding for demanding environments.

Originating from Liechtenstein, this Neutrik connector complies with industry standards, designed to fit perfectly into professional AV connectors assemblies as well as other industrial and laboratory electronic setups.
