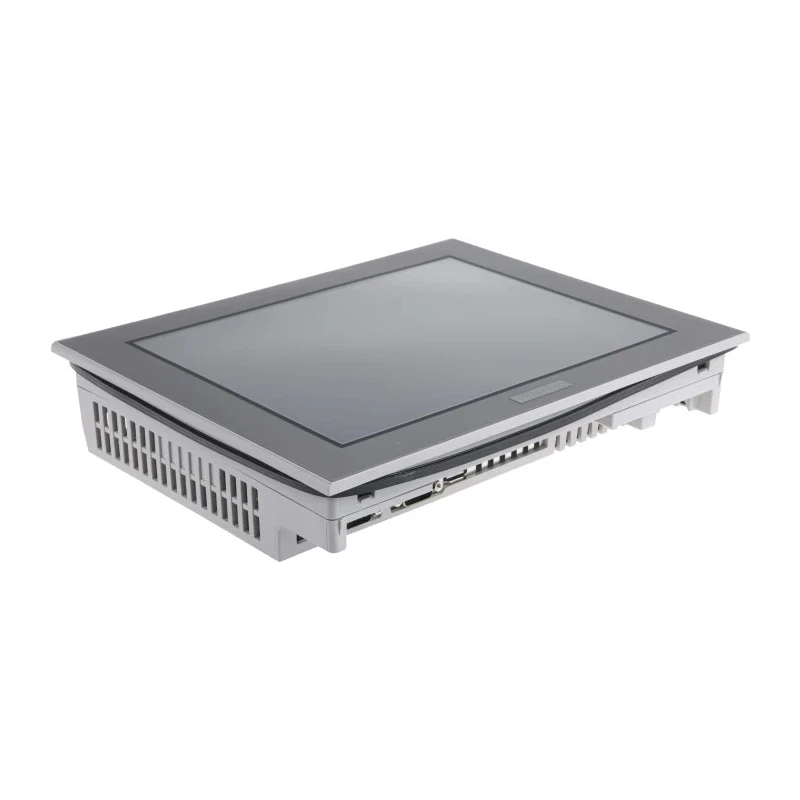

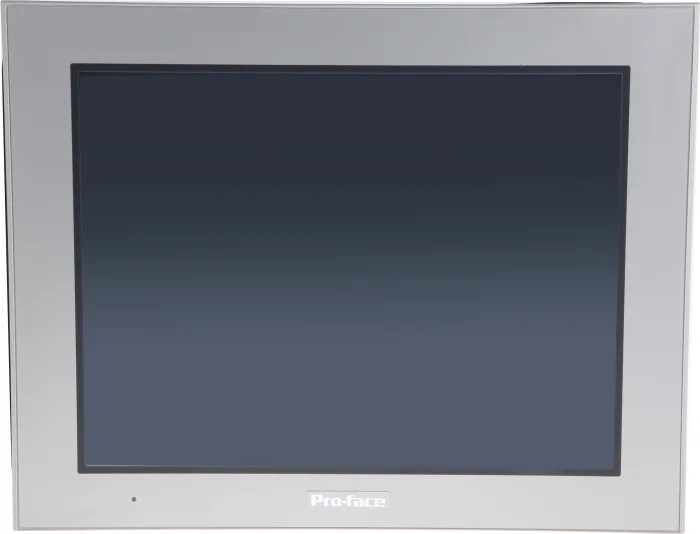

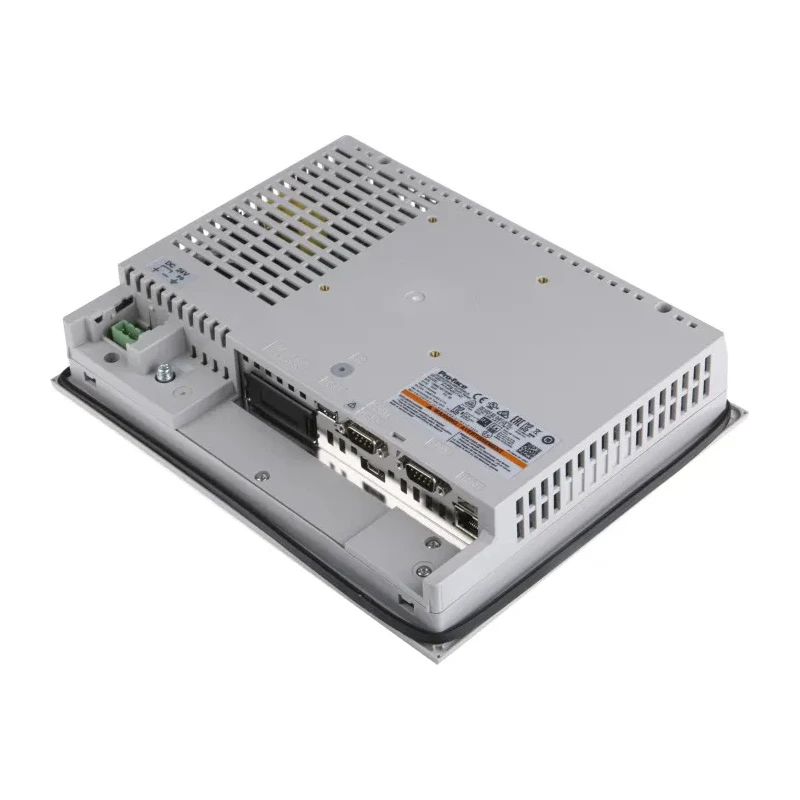

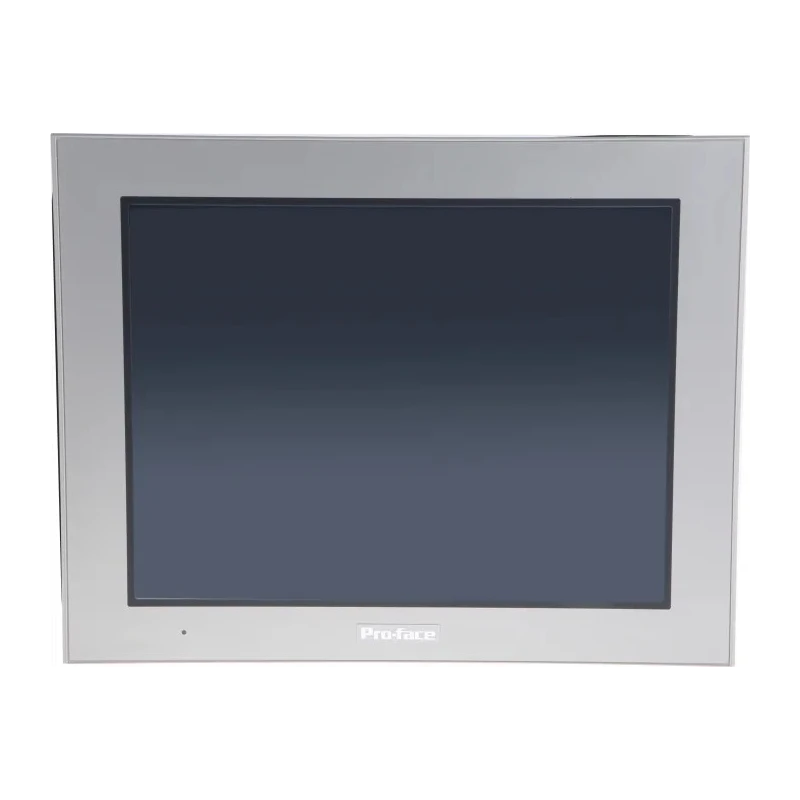

Pro-face GP4000 Series Touch Screen HMI with 10.4 in TFT LCD Display 640 x 480 pixel
Specifications
| Country of Origin | India |
|---|---|
| Display Type | TFT LCD |
| Brand | Pro-face |
| Length | 272mm |
| Model | GP4000 |
| Depth | 214.5mm |
| IP Rating | IP65F |
| Width | 57mm |
| Series | GP4000 |
| Number Of Ports | 6 |
| Display Resolution | 640 x 480 pixel |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Hazardous Area Certification | IECEx/ATEX |
| Standards/Approvals | KC, cUL, CE, UL |
| Onboard Memory | 32MB |
| Diagonal Display Size | 10.4in |
Key Features

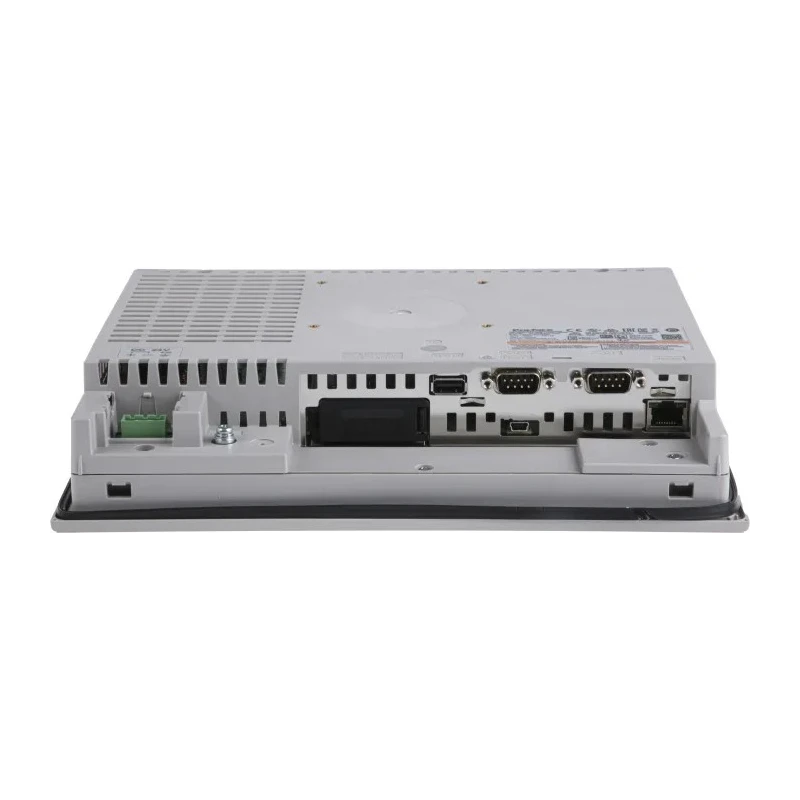

- Equipped with 6 ports including Ethernet, RS422C, RS485, SD card, and USB 2.0.
- Onboard memory of 32MB to store critical operation parameters.
- Supports operation from 0°C to 50°C with IP65F dust and water resistance rating.
- Features 16 adjustable brightness levels for optimal visibility in various light conditions.
- Supports Japanese, Korean, and Chinese fonts for localized applications.
- Complies with industrial standards and certifications including KC, cUL, CE, UL, IECEx, and ATEX.
- Resistant to vibration, suitable for mounting near moving machinery.
Product Description
Pro-face PFXGP4501TAD GP4000 Series Touch Screen HMI is a high-performance human-machine interface featuring a 10.4 inch TFT LCD display with 640 x 480 pixel resolution. Designed for industrial automation, it allows efficient visual control through its responsive touchscreen function. With 32MB of onboard memory, the device stores essential cycle parameters such as start/stop cycles and set points, enhancing process reliability.
The HMI supports multiple communication protocols and ports, including Ethernet, RS422C, RS485, SD card, and USB 2.0, enabling broad compatibility in industrial control environments. It features 16 brightness levels to adapt to varied lighting conditions and supports multilingual fonts including Japanese, Korean, and Chinese, making it versatile for global applications.
Engineered for harsh industrial settings, the unit operates reliably between 0°C and 50°C and carries an IP65F rating, ensuring protection against dust, low-pressure water jets, and oil. Its IECEx/ATEX hazardous area certification further endorses its suitability for hazardous locations. The device is vibration-resistant, permitting installation near moving machinery without performance degradation.
Typical applications include control panels in manufacturing lines, pharmaceutical production, and other industrial automation systems requiring robust and intuitive operator interfaces.
Equipped with six communication ports for versatile connectivity. 32MB onboard memory to store complex cycle data and parameters securely. 16 brightness levels ensure visibility under diverse lighting. IP65F rated for dust and water jet resistance.
Supports multi-language fonts for international use. Certifications include KC, cUL, CE, UL, IECEx, and ATEX for industrial compliance. Vibration-resistant design suitable for heavy industrial environments. Explore a comprehensive range of HMI Terminals and industrial automation products on EnvMart to find the best fit for your control system requirements.
