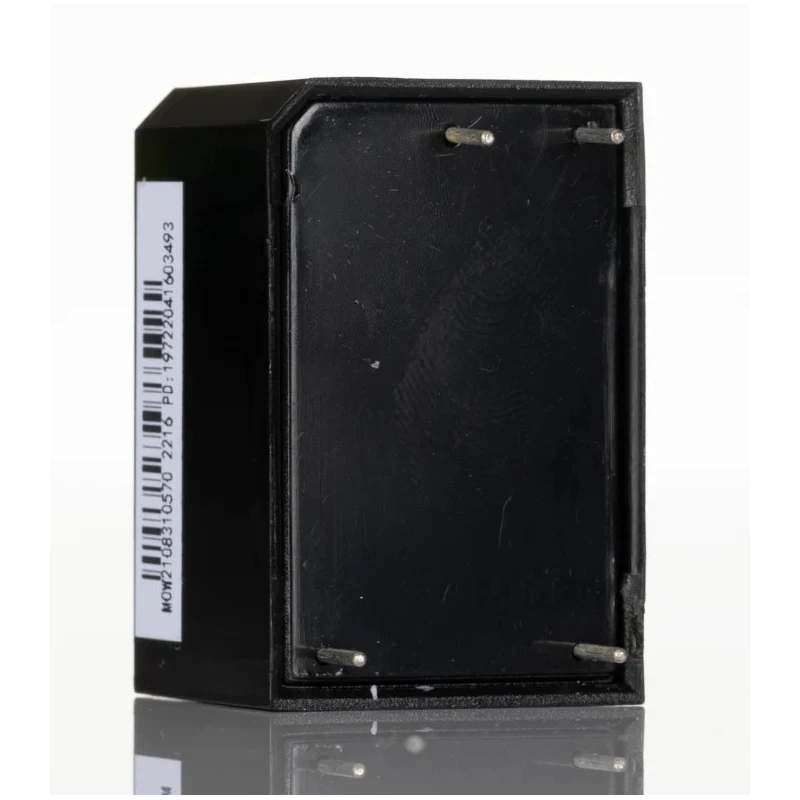

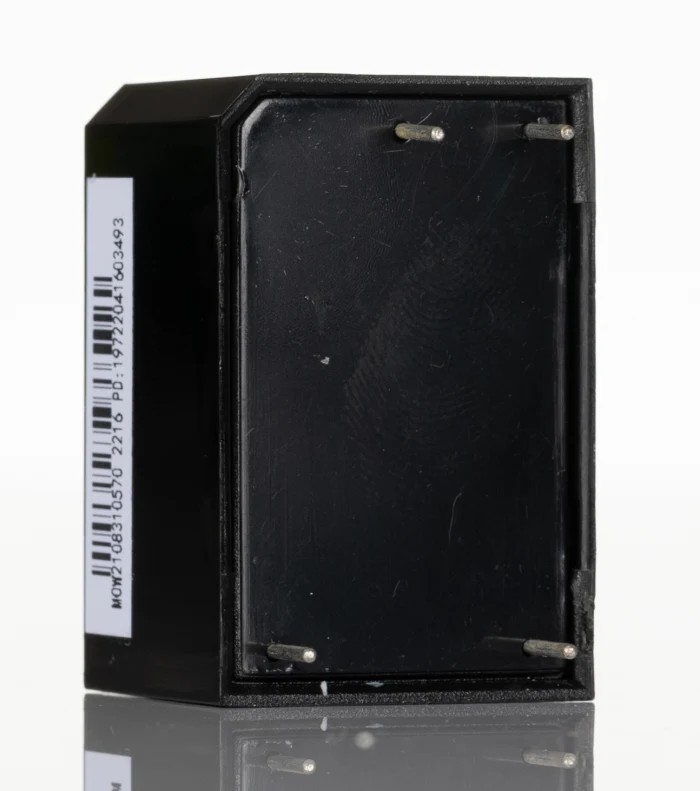

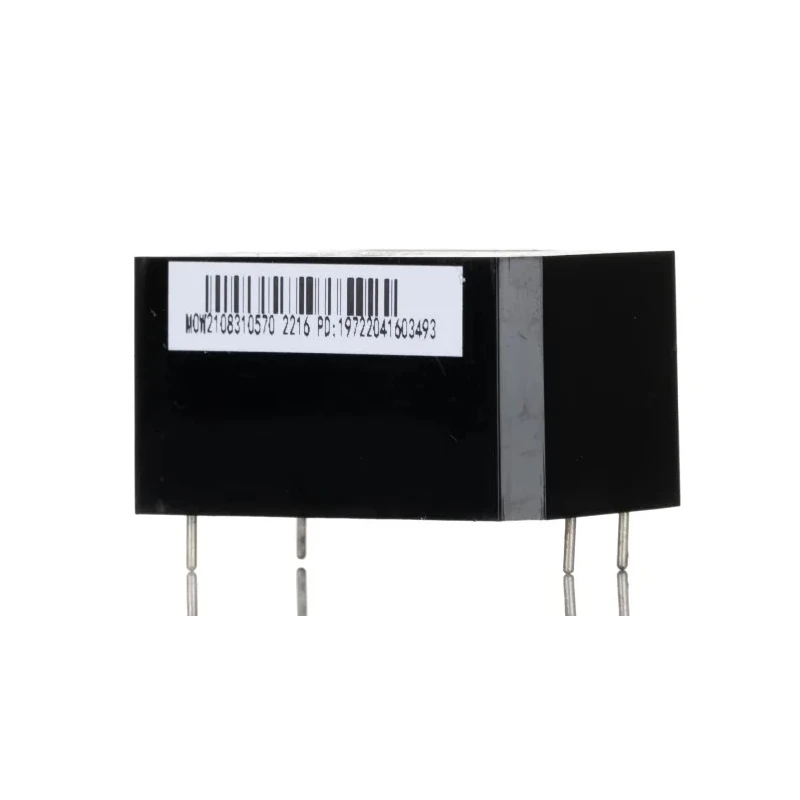

Recom Switching Power Supply 5V dc 2W PCB Mount 400mA Efficiency 69% RAC02-05SGA

Free Delivery in India | Lowest Global Shipping Charges

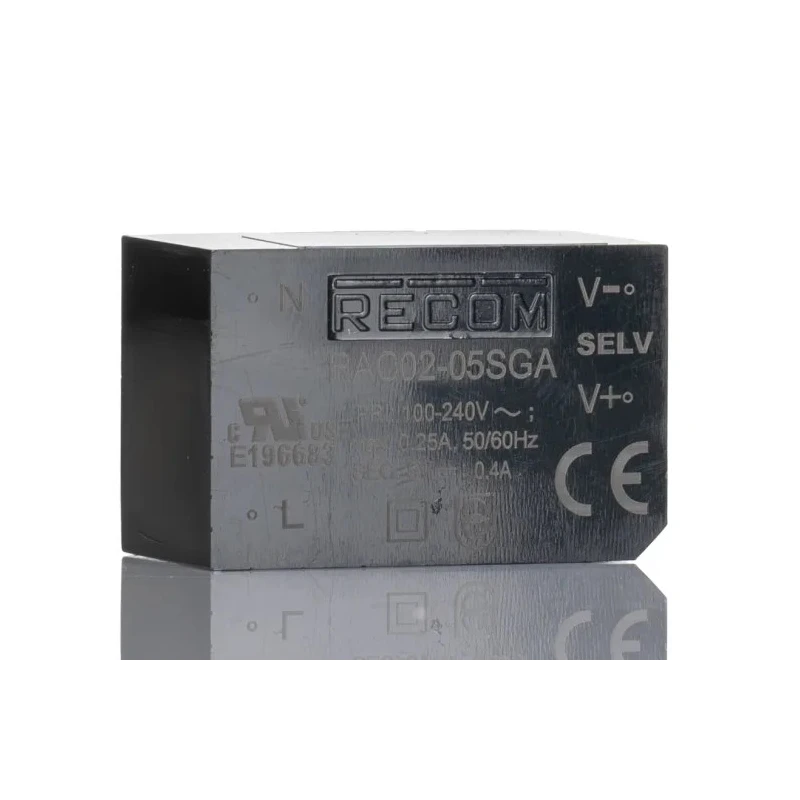

Recom Switching Power Supply 5V dc 2W PCB Mount 400mA Efficiency 69% RAC02-05SGA

Name: Recom Switching Power Supply 5V dc 2W PCB Mount 400mA Efficiency 69% RAC02-05SGA
Brand: Recom
SKU: 146192
Price: 20.22 USD
Availability: InStock



Category Power Supplies & Transformers Brand Recom Condition New

Specifications

Country of Origin	China
Brand	Recom
Power	2W
Efficiency	69%
Length	33.7mm
Model	RAC02-05SGA
Depth	19mm
Gross Weight	12g
Width	22.2mm
Mount Type	PCB
Series	RAC02-GA
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	EN 61000-4-4, UL 60950-1, RoHS, IEC 60950-1, EN 61000-4-8, EN 61000-4-6, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, CAN/CSA C22.2 No. 60950-1-07, EN 55022 Class A, EN 55024, EN 60950-1
Maximum Output Voltage	5V dc
SMPS Output Current	400mA
Minimum Input Voltage	100V ac

Key Features

Converts AC input voltage between 100V and 264V to a regulated 5V DC output.
Delivers a continuous maximum output current of 400mA with 69% efficiency.
Compact PCB mount design with dimensions 33.7mm (L) x 22.2mm (W) x 19mm (D).
Operates reliably in temperature ranges from -25°C to +70°C and 95% relative humidity.
Certifications include UL 60950-1, RoHS, IEC 60950-1, and multiple EN standards ensuring safety and electromagnetic compatibility.
Small and lightweight unit at 12 grams, ideal for space-constrained applications.
Isolation voltage rating of 3kV AC protects circuits from electrical surges.
Mean time between failures (MTBF) exceeding 1.5 million hours at 25°C for dependable long-term use.

Product Description

Recom RAC02-05SGA is a switching power supply that converts AC voltages from 100V to 264V into a regulated 5V DC output, delivering a power capacity of 2W. Designed for PCB mounting, this compact power supply measures just 33.7mm in length, 22.2mm in width, and 19mm in depth, weighing 12 grams which makes it highly suitable for applications with limited space.

It operates efficiently with 69% efficiency, delivering up to 400mA output current. The unit supports an operating temperature range of -25°C to +70°C and can function in up to 95% relative humidity, making it reliable in various environmental conditions. The built-in voltage regulator maintains output ripple and noise between 100 and 200mV peak-to-peak to protect sensitive components.

Certified according to multiple standards such as UL 60950-1, IEC 60950-1, RoHS, and EN compliance standards for electromagnetic compatibility and safety, the RAC02-05SGA ensures safe operation within electronic systems. It boasts an isolation voltage of 3kV AC, protecting circuits against electrical surges and transient voltages.

This power supply is particularly suited for use in renewable energy systems, household appliances, and utility grid applications where small form factor and high reliability are critical. Its mean time between failures exceeds 1.5 million hours at +25°C, underscoring its durability and dependable performance in industrial and commercial settings.

Converts wide AC voltage range to regulated 5V DC output. High reliability with MTBF over 1.5 million hours at 25°C. Compact and lightweight PCB mount design. Broad operating temperature and humidity range. Multiple international safety and electromagnetic standards certified.

Isolation voltage rating of 3kV AC for surge protection. Low noise and ripple output due to built-in voltage regulator. Designed for renewable energy, appliances, and utility grid applications. Explore the full range of switching power supplies and power modules on EnvMart for industrial and laboratory power solutions.
