INA Bearing Insert 40 mm Inside Diameter 80 mm Outside Diameter Sealed Bore GYE40-XL-KRR-B

Free Delivery in India | Lowest Global Shipping Charges

INA Bearing Insert 40 mm Inside Diameter 80 mm Outside Diameter Sealed Bore GYE40-XL-KRR-B



Category Bearing Insert Brand INA Condition New

Specifications

Country of Origin	India
Brand	INA
Model	GYE40-XL-KRR-B
Outside diameter	80mm
Inside Diameter	40mm
End Type	Sealed
Bore Type	Parallel
Static Load Rating	19.8kN
Better World Claim	Extended Product Life, Saves Energy
Dynamic Load Rating	34.5kN

Key Features

Equipped with two grub screws offset by 120 degrees for secure shaft location.
Grub screws feature fine pitch thread and cup point for self-retention.
Sealed end type with extended, angled sheet steel washers and NBR seal lip for enhanced protection.
Substantial grease reservoir reduces maintenance and lowers operating costs.
Suitable for bearing arrangements with constant rotation direction and low-speed alternating direction under light loads.
Provides quieter running and higher speeds compared to standard radial bearings.
Offers extended product life and saves energy as part of the Better World product initiative.
Bore type is parallel for precise shaft alignment.

Product Description

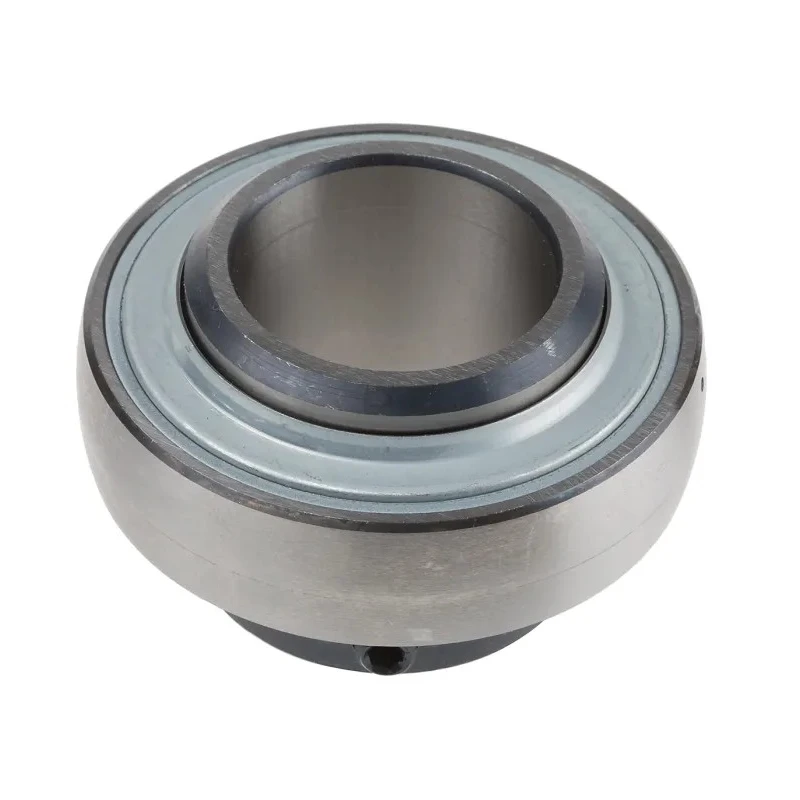

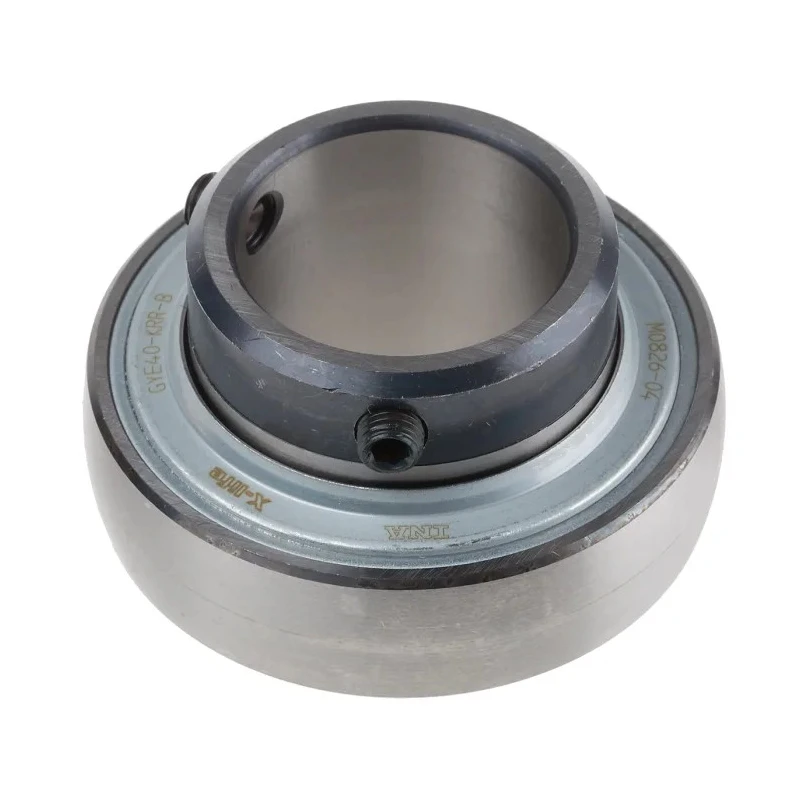

INA GYE40-XL-KRR-B bearing insert is a high-quality radial insert ball bearing featuring a 40 mm inside diameter and 80 mm outside diameter with a sealed bore. Engineered for robust mechanical machinery applications, this bearing insert provides secure shaft mounting with two grub screws offset by 120°, which are self-retaining with fine pitch threads and cup points.

The sealed end type incorporates zinc-coated sheet steel washers angled outwards and downwards, combined with a radially preloaded NBR seal lip, offering superior protection against contaminants and mechanical damage. A substantial grease reservoir located between the sheets enhances lubrication, reducing heat generation and lowering maintenance requirements.

This bearing is ideal for systems with constant rotational direction or light-load, low-speed alternating directions. The parallel bore type ensures precise shaft alignment, supporting quieter operation and higher speed capability compared to standard designs.

The static load rating of 19.8 kN and dynamic load rating of 34.5 kN guarantee reliable performance under demanding industrial conditions. As part of INA's Better World product portfolio, it promotes extended product life and energy savings, making it suitable for industrial, manufacturing, and heavy machinery use cases.

This product aligns with current industrial demands for energy efficiency and durability, suitable for sectors including mechanical engineering, fluid power systems, and maintenance of rotary bearings and housing units.

Equipped with two grub screws offset by 120 degrees for shaft location. Sealed design with zinc-coated sheet steel washers and NBR seal lip. Lower operating costs due to improved lubrication and maintenance reduction. Suitable for constant direction of rotation and low speed, alternating directions.

Static load rating of 19.8 kN and dynamic load rating of 34.5 kN. Parallel bore type ensures precise mounting on shafts. Part of Better World initiative with extended product life and energy savings. Quieter and higher-speed operation compared to conventional bearings.

Explore the full range of INA Bearing Inserts on EnvMart to find compatible solutions for your industrial machinery needs.
