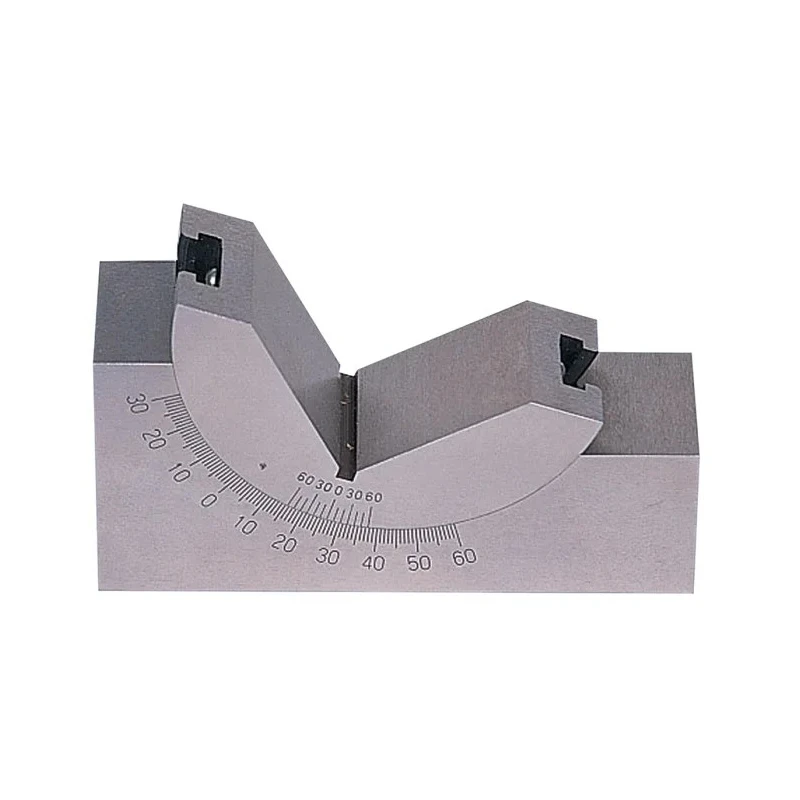

RS PRO Adjustable Angle Gauge Steel ±10 s Accuracy 0-60° Vee Movement 102mm Length 48mm Height 30mm Width 136-8104
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±10 s |
| Brand | RS PRO |
| Material | Steel |
| Height | 48mm |
| Length | 102mm |
| Model | 136-8104 |
| Width | 30mm |
Key Features
- Manufactured from hardened chrome steel for durability.
- Features a 90º vee located in a precision tee slot for accurate positioning.
- Vee movement allows 60º anticlockwise and 30º clockwise adjustment.
- Vernier scale on the vee reads in 10-second divisions for precision measurement.
- The vee is locked securely in place by two tee nuts.
- Ideal for fast angle positioning in layout, drilling, and milling set-up tasks.
- Widely used with milling and grinding machines for engineering test and measurement applications.
Product Description
The RS PRO 136-8104 adjustable angle gauge is a high-precision measuring instrument designed for industrial and engineering applications. Manufactured from chrome steel hardened for exceptional durability, this angle gauge features a precise V-shaped vee with a total adjustable range of 0-60°, suitable for fast and accurate angle positioning tasks.
Its 90º vee is located in a precision tee slot, allowing smooth and reliable adjustment. The gauge vee moves 60º anticlockwise and 30º clockwise, making it highly versatile for various machining operations. The built-in vernier scale reads in fine 10-second divisions, ensuring superior accuracy with ±10 s measurement precision.
The angle gauge's vee is fixed firmly by two tee nuts to maintain setting stability during drilling, milling, and other set-up tasks. With compact overall dimensions of 102mm length, 48mm height, and 30mm width, it is suitable for use on milling machines and grinding machines where precision angle measurement is critical.
This tool is indispensable for engineering test and measurement in industrial manufacturing, construction, and maintenance environments. It supports accurate layout work, machining set-ups, and quality control processes, enhancing operational efficiency and consistency.
Hardened chrome steel construction provides strength and wear resistance. Precise 90º vee located in precision tee slot for reliable measurements. Adjustable vee movement: 60º anticlockwise and 30º clockwise. Vernier scale graduations at 10-second intervals for fine accuracy.
Locking mechanism with two tee nuts secures the vee in place. Ideal for milling machine and grinding machine angle set-ups. Compact size facilitates easy handling and positioning. Used extensively in engineering test and measurement applications.
Available as a high-quality tool from RS PRO, this angle gauge meets stringent requirements for precision and reliability in professional workshops and industrial settings. Explore more products in the Angle Gauges category at EnvMart for comprehensive measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable angle gauge has an accuracy of ±10 seconds, ensuring precise measurements for various applications.
It is manufactured from hardened chrome steel, providing durability and wear resistance for industrial use.
This angle gauge has a length of 102mm, a height of 48mm, and a width of 30mm, making it compact for easy handling.
The vee movement allows for a total adjustment of 60º anticlockwise and 30º clockwise, providing versatility for various machining tasks.
The vee is secured in place by two tee nuts, ensuring stability during measurements and machining operations.
It is ideal for fast angle positioning in layout, drilling, and milling set-up tasks, widely used in engineering test and measurement applications.
It features a vernier scale that reads in 10-second divisions, allowing for fine accuracy in measurement.
Yes, this model is widely used with milling machines for precise angle measurements during machining operations.
The RS PRO 136-8104 angle gauge is manufactured in India.
Yes, it is suitable for use in grinding machine set-ups, providing accurate angle positioning for various tasks.
The combination of hardened chrome steel construction, a precise 90º vee in a tee slot, and a vernier scale contributes to its precision.
It supports accurate layout work and machining set-ups, enhancing operational efficiency and consistency in quality control processes.
