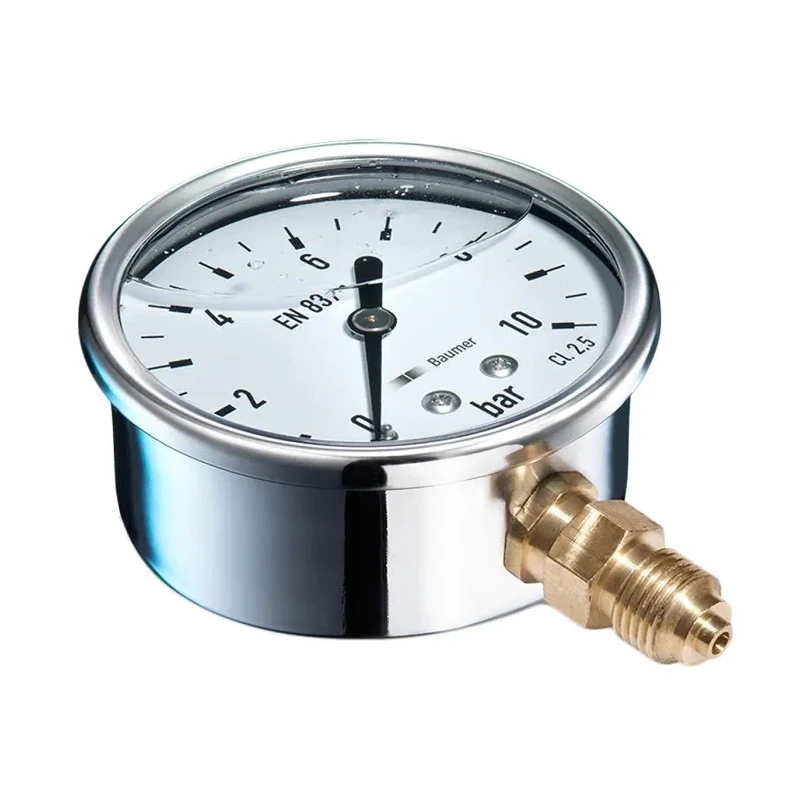

Bourdon 63 mm Stainless Steel Case Bottom Entry Pressure Gauge G 1/4 Connection MIT3-D22.B59
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±2.5 % |
| Brand | Bourdon |
| Model | MIT3-D22.B59 |
| Connection Type | Bottom |
| Case Material | Stainless Steel |
| Series | MIT3 |
| Maximum Operating Temperature | 70°C |
| Dial Size | 63mm |
| Connection Size | G 1/4 |
| PRESSURE CONNECTION | Brass |
| Maximum Pressure Measurement | 0bar |
| Minimum Pressure Measurement | -1bar |
| Connection Location | Bottom Entry |
| Dial Colour | White |
Key Features
- 63 mm diameter dial with white background and black graduations for clear readings.
- Stainless steel case enhances durability and corrosion resistance.
- Brass G 1/4 bottom connection suitable for pneumatic and hydraulic systems.
- Accurate pressure measurement with ±2.5% class accuracy.
- Operating temperature up to 70°C ensuring reliability in various environments.
- IP54 protection rating for ingress resistance, class 2.5 calibration.
- Meets standards Pressure PED 97/23/CE, NF EN 60529, EN 837-1 for quality assurance.
- Applications include compressors, diesel engines, agricultural equipment, machine tools, hydraulic systems, and pumps.
Product Description
Bourdon MIT3-D22.B59 is a precision pressure gauge featuring a 63 mm white dial with black graduations and a durable stainless steel case designed for bottom G 1/4 connection. It measures pressures from -1 bar minimum to 0 bar maximum, suitable for pneumatic and hydraulic system monitoring in industrial settings.
The gauge incorporates a black balanced aluminium pointer and a cupreous metal Bourdon tube with welded tube connection assembly. It has a hexagonal brass connection of 14 mm, ensuring a secure fit and long-lasting performance. The device complies with Pressure PED 97/23/CE, NF EN 60529, and EN 837-1 standards to guarantee measurement quality and safety.
This instrument is rated to withstand maximum operating temperatures of 70°C and offers an IP54 ingress protection rating for dust and splash resistance. Available in 63 mm dial size, it supports various industrial applications including compressors, diesel engines, agricultural machinery, public works, machine tools, hydraulic systems, and pumps.
Key features include its stainless steel case for corrosion resistance, accuracy class 2.5 with ±2.5% allowance, and bottom entry connection for versatile installation. Its robust construction and compliance with international standards provide reliability and precision in demanding industrial environments.
63 mm dial with white face and black graduations for excellent readability. Stainless steel case enhances durability and corrosion resistance. Brass G 1/4 bottom connection provides secure and standard fitting. Accuracy within ±2.5% ensures reliable pressure measurement.
Operates reliably up to a temperature of 70°C. Complies with Pressure PED 97/23/CE, NF EN 60529, EN 837-1 standards. Applications include compressors, agricultural equipment, hydraulic systems, diesel engines, machine tools, and pumps.
Explore the wide range of measuring and testing instruments at EnvMart for all industrial and laboratory pressure measurement needs.
Explore more products in our Pressure Gauges category.
