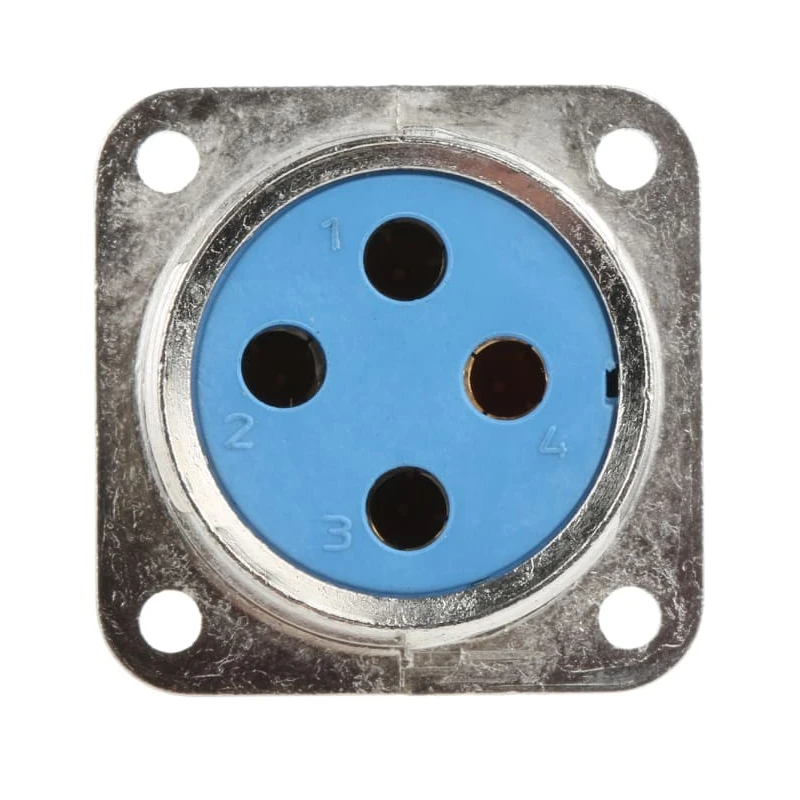

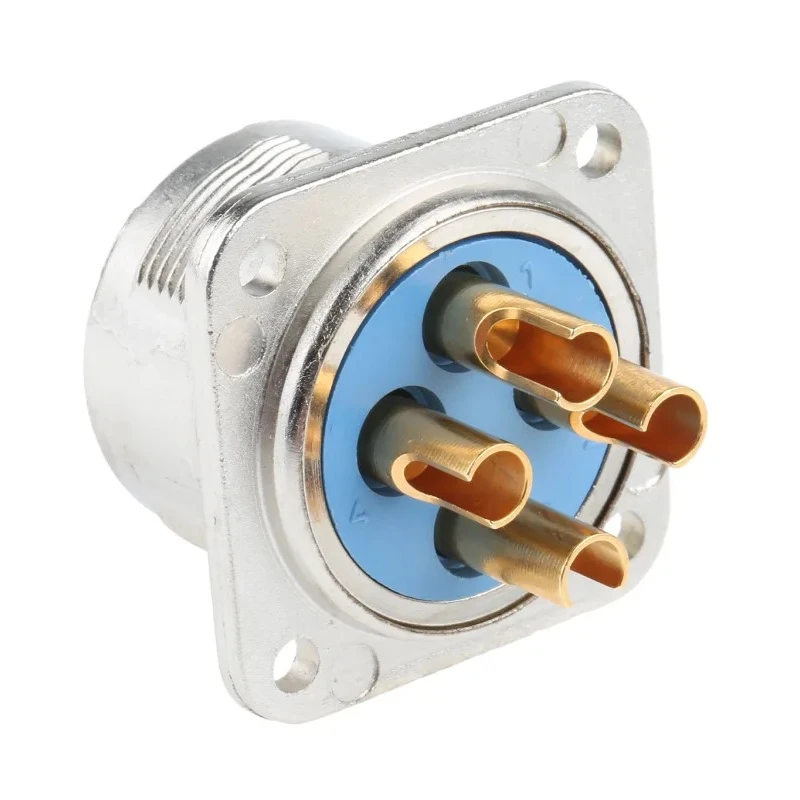

Jaeger Circular Connector, 4 Contacts, Panel Mount, Standard Size, Female, 50A, IP65, MIL-DTL-5015, Silver 5337 600 06

Free Delivery in India | Lowest Global Shipping Charges

Jaeger Circular Connector, 4 Contacts, Panel Mount, Standard Size, Female, 50A, IP65, MIL-DTL-5015, Silver 5337 600 06

Name: Jaeger Circular Connector, 4 Contacts, Panel Mount, Standard Size, Female, 50A, IP65, MIL-DTL-5015, Silver 5337 600 06
Brand: Jaeger
SKU: 145225
Price: 53.86 USD
Availability: InStock



Category Circular Connector Brand Jaeger Condition New

Specifications

Country of Origin	France
Brand	Jaeger
Orientation	Straight
Current	50A
IP Rating	IP65
Mount Type	Panel Mount
Termination Type	Solder
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-50°C
Standards/Approvals	MIL-DTL-5015
Contact Plating	Silver
Number of Contacts	4
Contact Gender	Female
Shell Size	2
Connector Size	Standard
Jaeger Circular Connector, 4 Contacts, Cable, Standard Connector, FemaleBrand	Jaeger

Key Features

Industrial circular connector designed for panel mounting applications.
Features 4 silver-plated contacts with female gender for reliable electrical connections.
Supports currents up to 50 amperes, suitable for demanding power applications.
Ingress protection rating of IP65 ensures resistance to dust and water jets.
Conforms to MIL-DTL-5015 standards providing durability and military-grade reliability.
Operates reliably in temperatures ranging from -50°C to 100°C.
Termination type is solder, facilitating secure cable connections.
Shell size 2 with straight orientation for straightforward assembly.

Product Description

Jaeger 5337 600 06 circular connector is an industrial-grade, panel mount connector designed for robust and reliable electrical connections. It features 4 silver-plated female contacts that support currents up to 50 amps, making it suitable for high-power and demanding electrical environments.

This standard size connector with shell size 2 features a straight orientation and a solder termination type, ensuring strong and secure wiring connections. Rated to withstand operating temperatures from -50°C up to 100°C, it offers excellent performance in harsh temperature conditions.

The connector exhibits an IP65 ingress protection rating, safeguarding against dust ingress and low-pressure water jets, ideal for industrial and outdoor applications. Certified to the MIL-DTL-5015 standard, it meets military specifications, guaranteeing reliability and longevity under tough conditions.

Manufactured in France, this connector is part of the Jaeger Standard series, compatible with the Rapid series cable plugs. It is specifically designed for panel mount installation, which aids in streamlined integration into electronic assemblies.

Industrial circular connector designed for panel mounting applications. 4 silver-plated female contacts supporting up to 50 amperes current. Standard connector size with shell size 2 and straight orientation. Solder termination for secure electrical connections.

Ingress protection rated at IP65 against dust and water jets. Operating temperature range from -50°C to 100°C. MIL-DTL-5015 military standard compliance ensures durability. Manufactured in France ensuring premium build quality.

This industrial connector is ideal for use in electronics, industrial machinery, power distribution, automation, and other commercial electrical applications requiring sturdy and reliable connectors. Explore more industrial Circular Connectors from Jaeger on EnvMart for comprehensive connectivity solutions.
