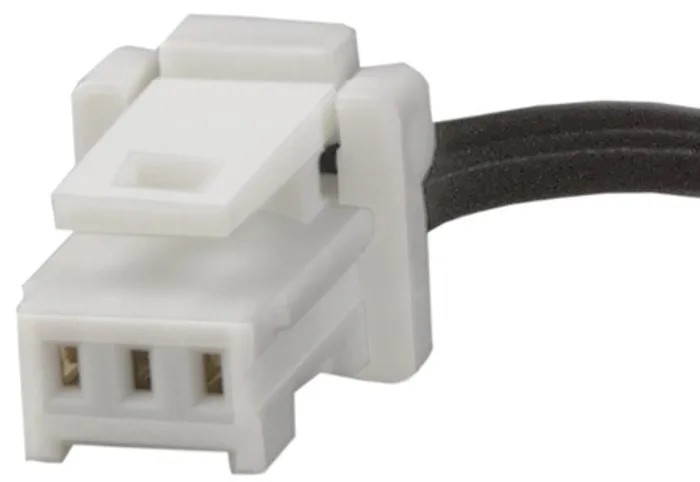

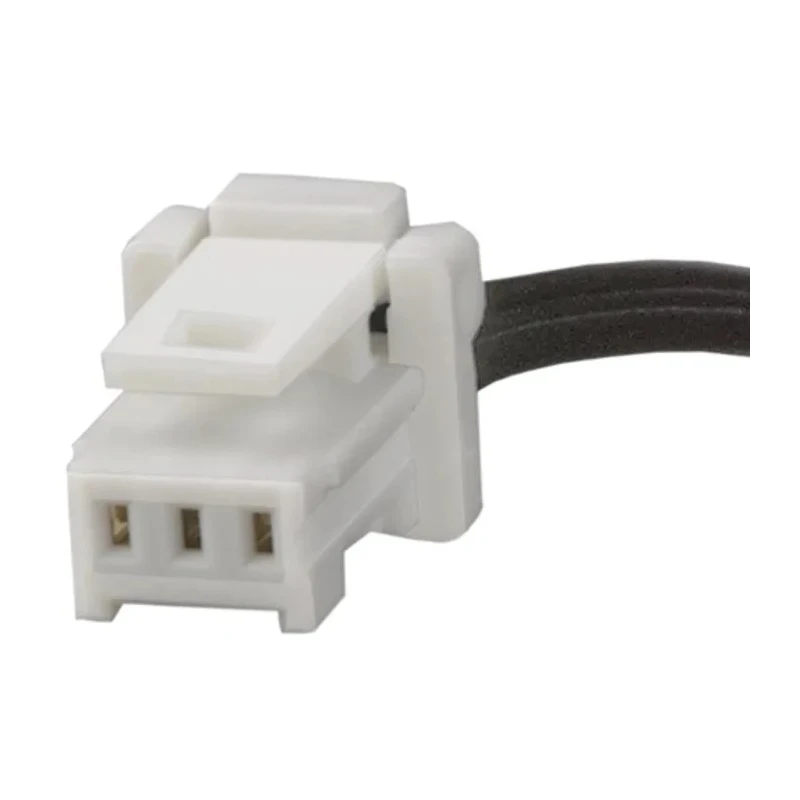

Molex Wire to Board Cable 3 Way Female PicoClasp Connector Black Nylon Jacket 150mm 15133-0302
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Cable Length | 150mm |
| Series | 15133 |
| Jacket Material | Nylon |
| Standards/Approvals | RoHS, REACH |
| Connector Type A | PicoClasp |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Number of Contacts A | 3 |
| Number of Rows A | 1 |
Key Features
- Constructed with UL1061 discrete wires for reliable and easy design integration.
- Features a compact 1.0 mm pitch pico-clasp connector for space savings.
- Each connector end has 3 contacts and 1 row with female gender configuration.
- Black nylon jacket provides durability and protection to the cable.
- Designed with positive lock for secure mating and easy plug and play connections.
- Complies with RoHS and REACH standards ensuring environmental safety.
- Ideal for electronic prototyping, consumer devices, industrial controls, and medical equipment.
Product Description
Molex 15133-0302 wire to board cable assembly features female PicoClasp connectors on both ends with 3 contacts each and a cable length of 150 mm. The cable is jacketed in black nylon offering durability and flexibility for various industrial and commercial applications.
This cable assembly utilizes UL1061 discrete wires to ensure a reliable pin-to-pin mapping from the connector receptacle to PCB headers, facilitating easy design, prototyping, and production processes. The PicoClasp connectors provide a compact 1.0 mm pitch, low insertion and withdrawal force, and a positive locking mechanism for secure and repeatable connections.
The cable assembly is rated for 50 Vrms voltage and complies with RoHS and REACH standards, ensuring it meets environmental and safety regulations. This product is made in China and designed for use in a broad array of applications including consumer electronics, fitness equipment, home entertainment systems, medical patient monitors, industrial process controls, and commercial vehicles.
Key features of the Molex 15133 Series Wire to Board Cables include enhanced space-saving connector design, easy mating/unmating, and positive locking for secure connections. This assembly works compatibly with Molex 501331 and 501568 PicoClasp PCB headers, making it versatile for multiple installations.
These wire-to-board connectors are essential components in electrical engineering and wiring solutions requiring compact, easy-to-use, and reliable cable assemblies. Constructed with UL1061 discrete wire for design convenience.
Compact 1.0 mm pitch PicoClasp connectors with positive lock. Low force terminals for easy mating and unmating. Black nylon jacketed cable for durability and flexibility. Rated 50 Vrms for safe low voltage operations. Complies with RoHS and REACH environmental standards.
Compatible with Molex 501331 and 501568 PCB headers. Suitable for prototyping, consumer, industrial, and medical applications. Explore a wide range of wire-to-board cables and connectors from Molex for your electrical and electronics projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length is 150 mm.
It features PicoClasp connectors with a female gender configuration, each having 3 contacts and 1 row.
The cable is jacketed in black nylon, providing durability and flexibility.
It is rated for 50 Vrms voltage for safe low voltage operations.
This product complies with RoHS and REACH standards, ensuring environmental safety.
Yes, it is compatible with Molex 501331 and 501568 PicoClasp PCB headers.
It is suitable for applications in consumer electronics, industrial controls, medical equipment, and electronic prototyping.
The PicoClasp connectors provide a compact 1.0 mm pitch, low insertion and withdrawal force, and a positive locking mechanism for secure connections.
The product is made in China.
It utilizes UL1061 discrete wires to ensure reliable pin-to-pin mapping from the connector receptacle to PCB headers.
Each connector has 1 row and 3 contacts.
The cable is designed for easy plug and play connections with a positive lock for secure mating, facilitating design integration.
