STMicroelectronics LSM303AH Adapter Board for DIP24 Socket STEVAL-MKI173V1

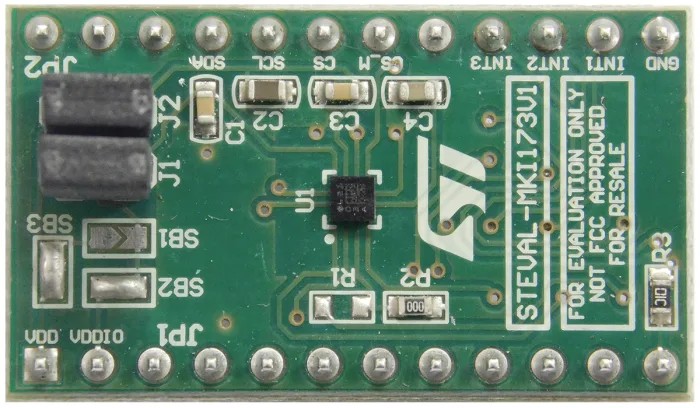

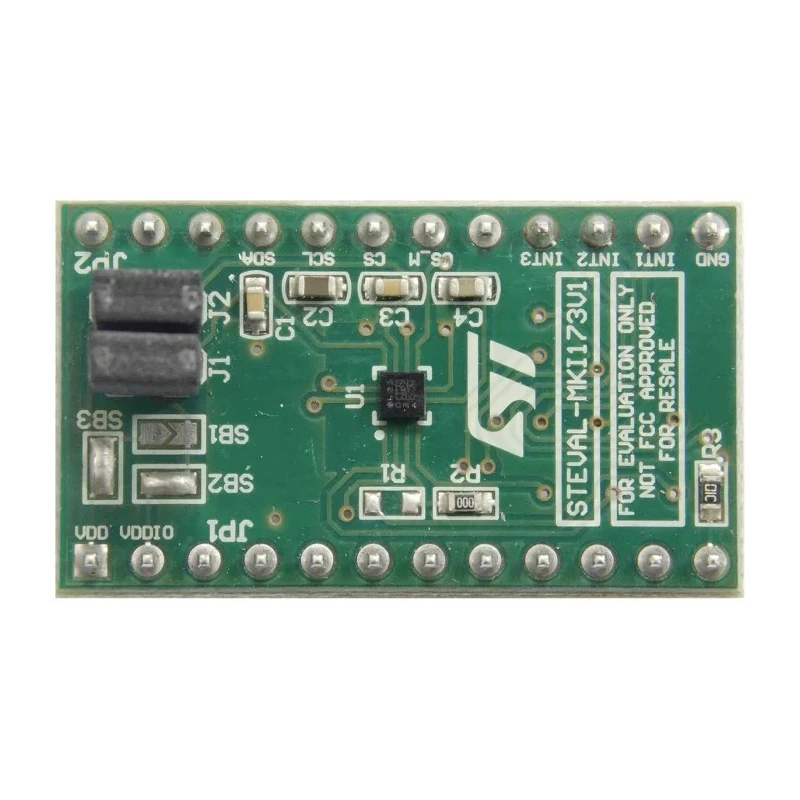

STMicroelectronics STEVAL-MKI173V1 is a specialized adapter board crafted to evaluate the LSM303AH ultra-compact high-performance e-compass module. Designed specifically for DIP24 sockets, it provides seamless accessibility to the complete LSM303AH pinout, enabling enhanced development and testing capabilities.

This adapter board integrates both a 3D accelerometer and a 3D magnetometer, making it suitable for precision motion and orientation sensing applications. Its magnetic full scale is ±50 gauss, while the acceleration full scale is selectable among ±2 g, ±4 g, ±8 g, and ±16 g, catering to diverse measurement ranges.

The STEVAL-MKI173V1 supports 16-bit data output through SPI and I²C serial communication interfaces, offering versatile connectivity for embedded system integration. Its analogue supply voltage range between 1.71 V to 1.98 V provides low-power operation options, complemented by power-down and low-power modes to conserve energy during idle states.

With programmable interrupt generators, this adapter can detect free-fall, motion, and changes in magnetic field, enhancing event-triggered data acquisition suitable for industrial, laboratory, and commercial development environments.

Additional embedded features include a temperature sensor and an internal FIFO buffer, fostering advanced data processing capabilities. The adapter board is supported by the STEVAL-MKI109V3 motherboard platform, where users can utilize the downloadable Unico graphical user interface (GUI) for comprehensive evaluation and debugging.

The board supports LSM303AH 3D accelerometer and 3D magnetometer module. It plugs into a standard DIP24 socket for full pinout access. Compatible with STEVAL-MKI109V3 motherboard and Unico GUI software. Features ±50 gauss magnetic full scale and selectable acceleration full scale up to ±16 g.

Offers 16-bit data output with SPI / I²C interfaces. Operates with analogue supply voltage from 1.71 V to 1.98 V. Includes power-down and low-power modes for energy efficiency. Programmable interrupt generators support free-fall, motion, and magnetic field detection.

Embedded temperature sensor and FIFO buffer enhance functionality.

This adapter board is ideal for development and prototyping in electronic component research, embedded system design, educational purposes, and environmental sensing in industrial and laboratory applications.
