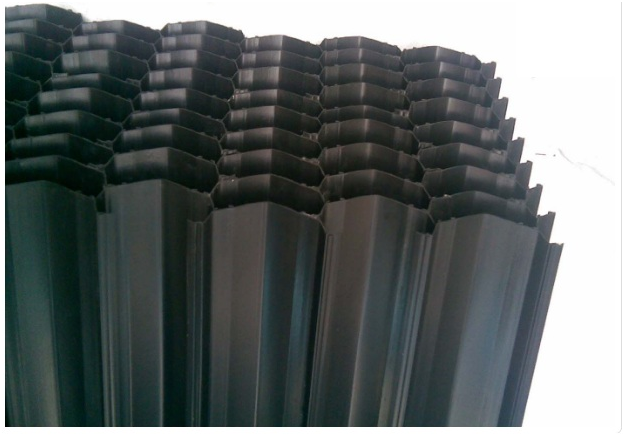

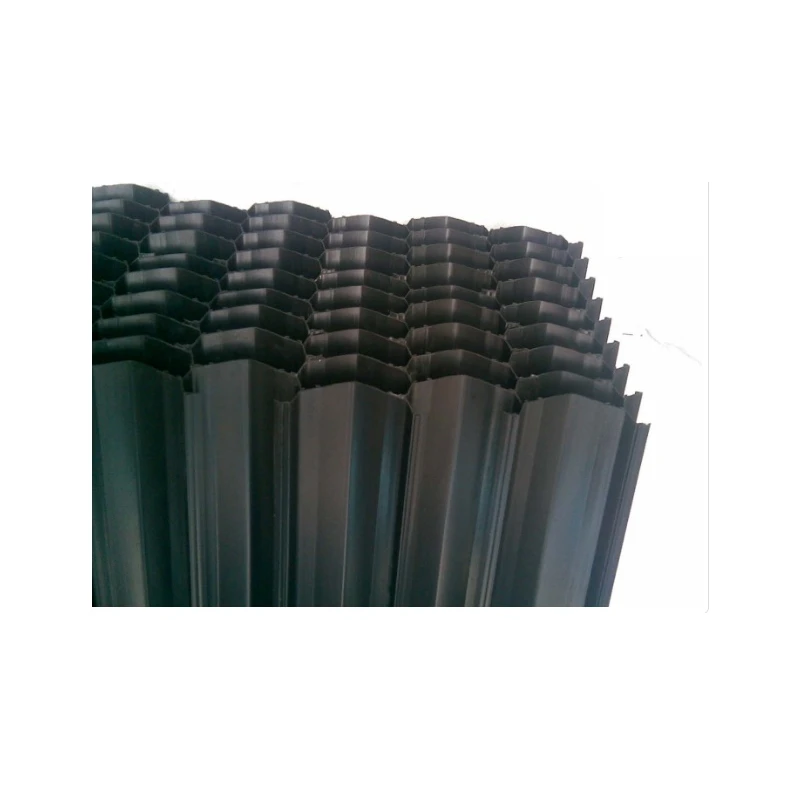

Tube Settler Media BI-TSM-120

Name: Tube Settler Media BI-TSM-120
Brand: ESPL
SKU: AAAFO
Price: 98.45 USD
Availability: InStock



SKU AAAFO Category MBBR Media Brand ESPL

Specifications

Brand	Envifab
Colour	Black
Shape	HEXAGONAL CHEVRON
THICKNESS	1.0 mm - 1.1 mm
HYDRAULIC RADIUS	1.5 cm
CROSS SECTIONAL AREA	120 mm X 44 mm
SETTLING AREA	60 Degree Slop 1.0 m2 / m3
MAX CONTINIUOUS OPRATING TEMPERATURE	55 DEGREE CELSIUS
MOC OF MEDIA	PVC
FITTING ARRANGMENT	TONGUE & GROOVE
Model	BI-TSM-120

Key Features

Increases the capacity of Clarifier
Increases the effective surface area of basin
Decreases the effective particle Settling distance drastically
It enhances the particle agglomeration and growth, bringing particles into closer contact with each other at the bottom of the tube

Product Description

PVC tube settlers for solid liquid separation in water and wastewater treatment plants Is called Tube Settler Media. It is a very high efficiency solid-liquid separator. This is due to the fact that its shape is hexagonal-chevron type that has got highest efficiency of separation among all other shapes available i.e. square, rectangular or hexagonal. Its area of application includes primary and secondary settling in water as well as wastewater treatment plants with any type of secondary treatment. It is also being very successfully used along with anaerobic digesters, to control the outflow of sludge and enhance gas production.Traditional sedimentation tanks or clarifiers are large structures, occupying much valuable space, are perceived as high investment cost items.Tube Settler media helps to reduce the amount of suspended solids in carrier fluids ; thus improving effluent quality ; which in turn improves the efficiency of existing plants.

Unique hexagonal chevron configuration for superior settling applications
Low Operating Cost or Low Maintenance.
Low initial Capital Cost.

Comments (0)

Frequently Asked Questions

Tube Settler Media is used for solid-liquid separation in water and wastewater treatment plants. It enhances the efficiency of clarifiers by increasing the effective surface area and reducing settling distances.

The unique hexagonal-chevron configuration provides superior settling efficiency compared to other shapes, allowing for better particle agglomeration and growth.

The Tube Settler Media is made from PVC, which is durable and suitable for various water treatment applications.

The cross-sectional area is 120 mm x 44 mm, with a thickness of 1.0 mm to 1.1 mm. The hydraulic radius is 1.5 cm.

The maximum continuous operating temperature for Tube Settler Media is 55 degrees Celsius.

Its efficient design leads to lower operational costs and reduced maintenance needs, making it a cost-effective solution for wastewater treatment.

Yes, Tube Settler Media is effectively used with anaerobic digesters to control sludge outflow and enhance gas production.

The settling area is designed with a 60-degree slope, providing 1.0 m² of settling area per m³ of media.

The Tube Settler Media is not customizable; however, it is designed to fit standard applications in water and wastewater treatment.
