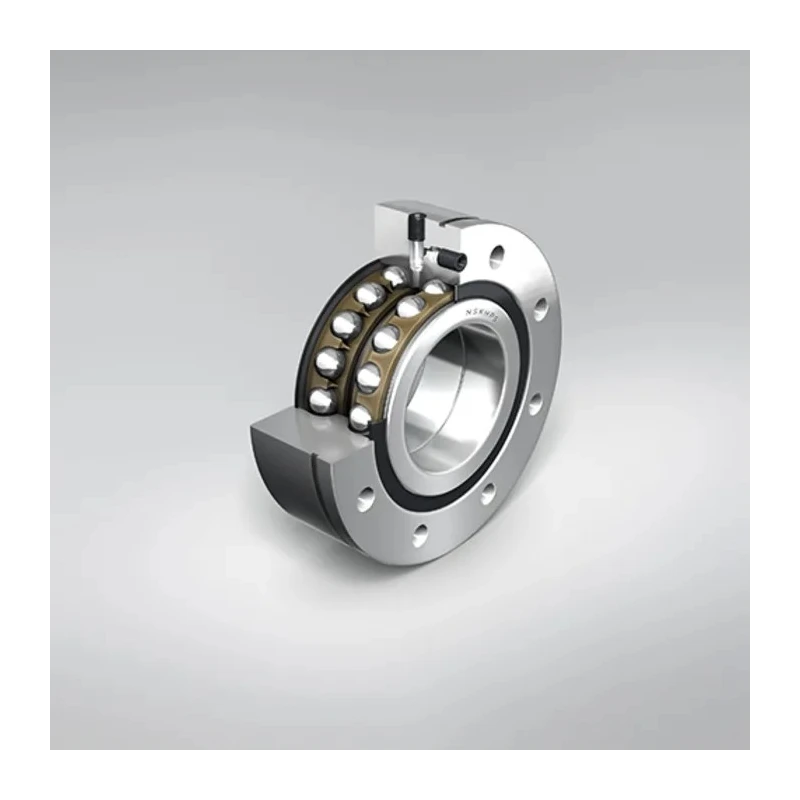

NSK 2 Row Ball Screw Support Bearing 20 mm ID, 68 mm OD, 28 mm Race Width BSF2068DDUHP2B R BE4L5
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | NSK |
| Model | BSF2068DDUHP2B R BE4L5 |
| Series | BSF |
| Outside diameter | 68mm |
| Inside Diameter | 20mm |
| Number of Rows | 2 |
| Ball Material | Steel |
| Limiting Speed | 5800rpm |
| Internal Clearance | CN |
| End Type | Sealed |
| Bore Type | Parallel |
| Bearing Type | Single Row Angular Contact Ball |
| Cage Material | Steel |
| Race Width | 28mm |
| Static Load Rating | 41kN |
| Race Type | Flanged |
| Dynamic Load Rating | 25.1kN |
| Contact Angle | 60° |
Key Features
- The bearing features a 60° contact angle for supporting large axial forces.
- Double row construction supports axial force in two directions effectively.
- Contact lip seal ensures excellent sealing with low friction and heat generation.
- Pre-greased for life under normal operating conditions for maintenance-free use.
- Bolted extended outer ring with relubrication holes allows for easy mounting and optional relubrication.
- Set screws and extraction groove aid in secure fitting and removal from machinery.
- Suitable for machine tools and applications requiring axial force support in two directions.
Product Description
NSK BSF2068DDUHP2B R BE4L5 2 Row Ball Screw Support Bearing with 20 mm inside diameter, 68 mm outside diameter, and 28 mm race width is designed for robust support in machine tool applications. It features a steel cage and steel balls sealed for protection and long service life.
The bearing has a 60° contact angle permitting it to withstand significant axial forces, with a double row configuration allowing it to handle forces in both directions. Its contact lip seal reduces friction and heat generation, optimizing operating efficiency.
Manufactured with a parallel bore and flanged race type, the bearing series BSF provides an extended outer ring with bolt holes for direct mounting. Relubrication can be performed through holes on the outer ring surface, which are closed with set screws when not in use. An extraction groove facilitates bearing removal during maintenance.
The bearing is greased for life under normal conditions, minimizing maintenance requirements and ensuring reliable performance over time. The 60° contact angle enables the bearing to support large axial forces effectively.
Double row design supports axial loads bidirectionally for enhanced application versatility. Contact lip seal provides superior sealing with minimal friction and heat. Bolted extended outer ring allows direct mounting and easy installation.
Relubrication holes accessible for in-operation maintenance if necessary. Set screws secure the bearing and extraction groove aids in removal for servicing. Ideal for use in precision machine tools and related industrial machinery.
This bearing is made in the United Kingdom, ensuring quality manufacturing standards suitable for industrial, manufacturing, and engineering facilities. Explore more bearings and rotary bearing solutions in the NSK range on EnvMart for reliable, precision components.
Explore more products in our Ball Bearings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inside diameter of 20 mm, an outside diameter of 68 mm, and a race width of 28 mm.
It features a 60° contact angle, allowing it to effectively support large axial forces.
The dynamic load rating for this bearing is 25.1 kN.
It is equipped with a contact lip seal that ensures excellent sealing with low friction and heat generation.
The limiting speed for this bearing is 5800 rpm.
It features a bolted extended outer ring with relubrication holes for easy mounting and optional relubrication.
The bearing is constructed with steel balls and a steel cage, ensuring durability and long service life.
It is designed for machine tools and applications requiring axial force support in two directions.
The internal clearance is classified as CN.
The static load rating for this bearing is 41 kN.
It is manufactured in the United Kingdom, ensuring adherence to quality manufacturing standards.
