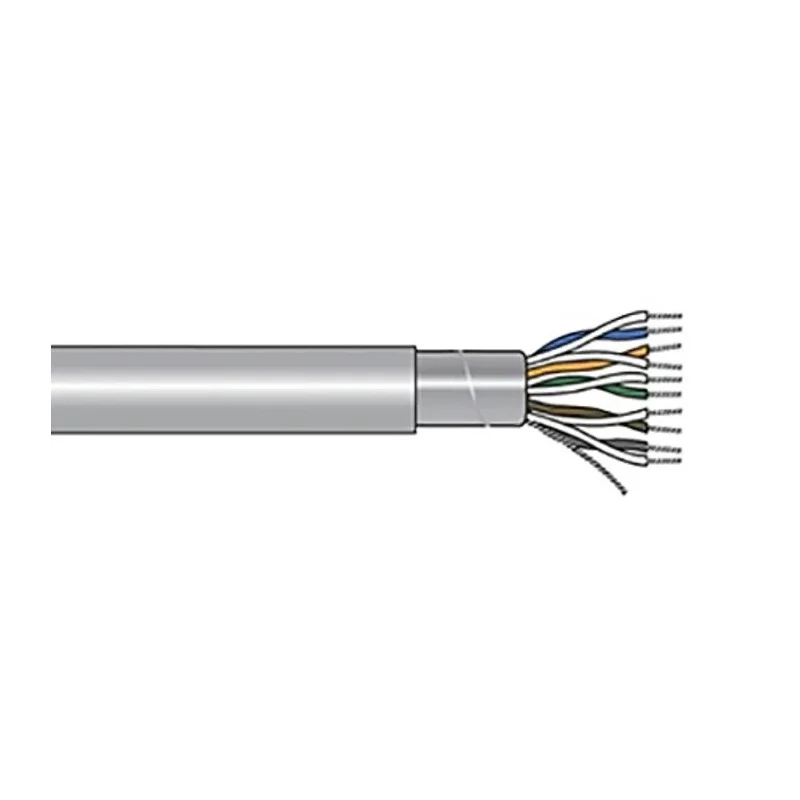

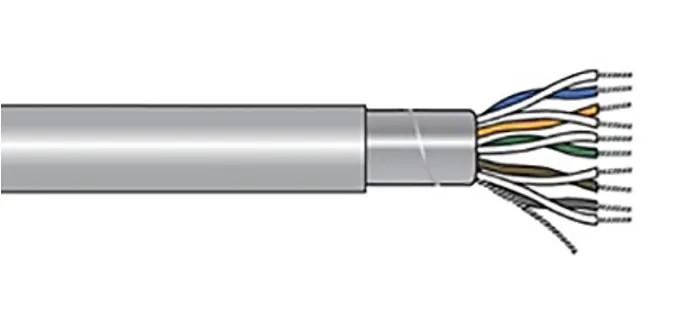

Alpha Wire Alpha Essentials Communication & Control Series Data Cable 6 Pairs 12 Cores 304 m Grey Polyvinyl 5476C SL001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 5476C SL001 |
| Cable Length | 304m |
| Series | Alpha Essentials Communication & Control |
| Outside diameter | 7.42mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 12 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 0.2mm |
| Size of Strands | 0.2mm |
| Number of Pairs | 6 |
Key Features
- The cable contains 6 pairs and 12 cores of 24 AWG stranded tinned copper wire conductors.
- It features an aluminium/mylar tape foil shield for effective high-frequency noise protection.
- The grey polyvinyl chloride jacket is abrasion, chemical, and water resistant.
- Flame retardant to FT4 rating for enhanced safety in installations.
- Operates safely within a temperature range of -20°C to 80°C and voltage rating of 300V.
- Certified by CE standards, UL Recognised, and CSA approved.
- Suitable for audio, broadcast, data transmission, control, and instrumentation systems.
Product Description
Alpha Wire 5476C SL001 Alpha Essentials Communication & Control Series Data Cable features 6 pairs and 12 cores of 24 AWG stranded tinned copper wire conductors wrapped with foil shielding made from aluminium/mylar tape facing inwards. The grey polyvinyl chloride jacket provides excellent resistance to abrasion, chemicals, and water, and the cable is flame retardant to FT4 rating, making it safe for industrial, laboratory, and commercial installations.
With an outside diameter of 7.42 mm and operating temperature range from -20°C to 80°C, this 300V cable offers reliable performance for audio systems, broadcasting, intercoms, data transmission including RS-232, RS-422, and RS-485, CAD/CAM equipment, computer peripherals, business machines, security systems, control systems, instrumentation, and point-of-sale or banking systems.
The foil shield ensures good high-frequency shielding that protects signal integrity and reduces cross-talk. The stranded tinned copper conductors improve flexibility and durability for installation in challenging environments.
The cable contains 6 pairs and 12 cores of 24 AWG stranded tinned copper wire conductors. The foil shield is made of aluminium/mylar tape facing inwards for effective noise protection. The polyvinyl chloride jacket is grey, flame retardant to FT4 standard, and resistant to chemicals and abrasion.
Operating voltage rating is 300V with a temperature range of -20°C to 80°C. The cable is certified with CE standards, UL Recognition, and CSA approval.
Alpha Wire’s 5476C SL001 cable is an ideal choice for demanding industrial, telecommunications, and commercial applications requiring multi-pair, multi-core data transmission with enhanced shielding and durability. Explore our range of Data Cables to find compatible products for your installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 80°C.
This cable contains 12 cores, organized into 6 pairs.
The voltage rating for this cable is 300V.
It features a foil shield made from aluminium/mylar tape facing inwards for effective high-frequency noise protection.
The outside diameter of this model is 7.42 mm.
The jacket is made of grey polyvinyl chloride, which is resistant to abrasion, chemicals, and water.
Yes, it is flame retardant to FT4 rating, enhancing safety in installations.
It is suitable for audio, broadcast, data transmission, control, and instrumentation systems.
The minimum operating temperature for this model is -20°C.
This cable is certified by CE standards, UL Recognised, and CSA approved.
Each core consists of 7 strands, with a strand size of 0.2 mm.
The cable length is 304 meters.
