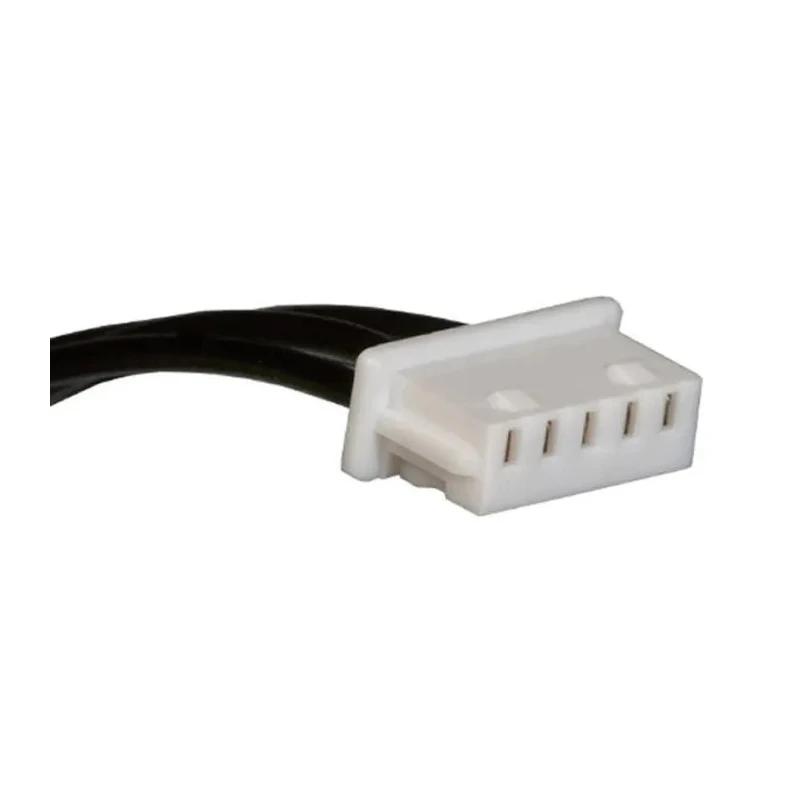

Molex 5 Way Female PicoBlade to 5 Way Female PicoBlade Wire to Board Cable 300 mm 125V 15134-0503
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Cable Length | 300mm |
| Series | 15134 |
| Standards/Approvals | 2011/65/EU RoHS ISO TS-16949 |
| Connector Type A | PicoBlade |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Number of Contacts A | 5 |
| Number of Rows A | 1 |
Key Features
- Features a 5-way female PicoBlade connector at both ends for multi-contact applications.
- Constructed with UL1061 discrete wires for easy design and prototyping.
- 300 mm cable length suitable for compact electronic devices.
- Rated for 125V voltage, ideal for low-voltage applications.
- Contact resistance of 20mΩ ensures stable data transmission without interference.
- Connector pitch size of 1.25 mm allows for space-saving assembly.
- Friction lock on connectors prevents accidental disconnects due to vibration.
- Complies with 2011/65/EU RoHS and ISO TS-16949 standards for quality and environmental compliance.
Product Description
Molex 15134-0503 5 Way Female PicoBlade to 5 Way Female PicoBlade Wire to Board Cable, 300 mm, rated for 125V, delivers a high-quality wire-to-board connection optimized for compact electronic devices.
This cable assembly features a 5-way female PicoBlade connector on both ends with a 1.25 mm pitch, providing a secure and vibration-resistant connection via friction lock.
Constructed using UL1061 discrete wires, it facilitates straightforward design, prototyping, and production, reducing the complexity of cable layout using a pin-to-pin map configuration.
With a contact resistance of 20mΩ, it ensures stable data signals free from static interference, ideal for sensitive electronic communications. Designed for low-voltage applications, this cable is rated at 125V and supports a current rating of 1A, promoting energy efficiency while maintaining performance.
The black jacket provides durability and protection for the internal wires, suitable for various industrial and commercial electronic applications.
Commonly used in medical equipment, gaming consoles, and mobile phones, this cable meets 2011/65/EU RoHS and ISO TS-16949 standards, reflecting its quality and environmental compliance.
5 Way Female PicoBlade connector at both ends. 300 mm cable length for compact integration. 1.25 mm connector pitch for space efficiency. Friction lock to prevent accidental disconnection. UL1061 discrete wire construction.
Contact resistance of 20mΩ for signal stability. 125V voltage rating for low-voltage use. ISO TS-16949 & RoHS compliant. Applications include medical devices, gaming, and mobile phones. Explore more Wire to Board Cable solutions and find innovative electronic components at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This wire to board cable is rated for 125V, making it suitable for low-voltage applications.
The cable length is 300 mm, which is suitable for compact electronic devices.
Each connector features 5 contacts, allowing for multi-contact applications.
This model uses 5-way female PicoBlade connectors at both ends.
The contact resistance is 20mΩ, ensuring stable data transmission without interference.
It complies with the 2011/65/EU RoHS and ISO TS-16949 standards for quality and environmental compliance.
The connector pitch size is 1.25 mm, allowing for space-saving assembly.
It is constructed with UL1061 discrete wires, facilitating easy design and prototyping.
The jacket of the cable is black, providing protection for the internal wires.
This cable is commonly used in medical equipment, gaming consoles, and mobile phones.
Yes, it features a friction lock on the connectors to prevent accidental disconnections due to vibration.
The country of origin for this cable is India.
