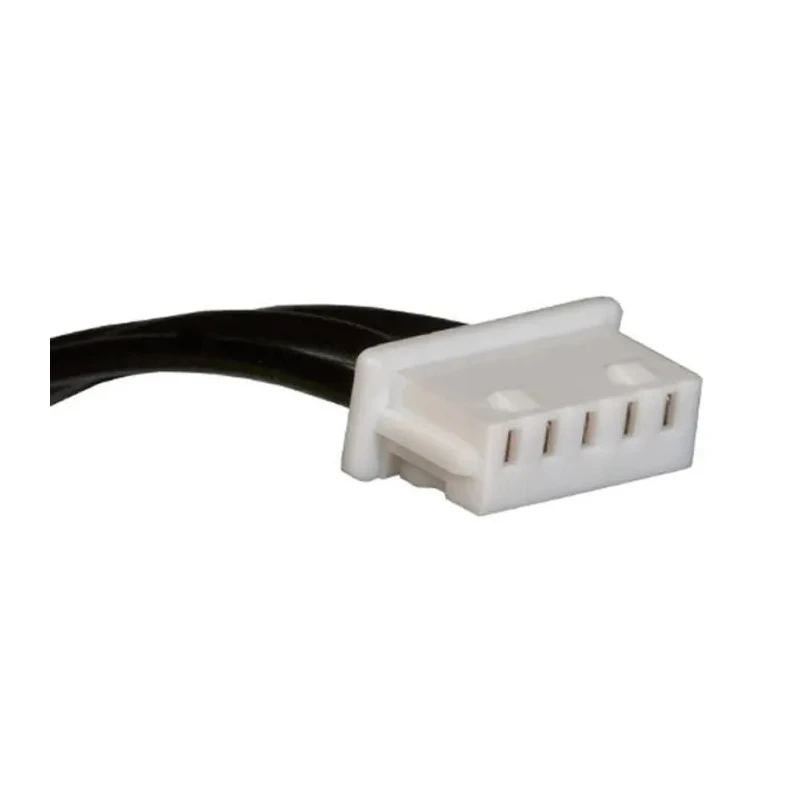

Molex Wire to Board Cable 5 Way Female PicoBlade Black Jacket 50mm Length 125V 15134-0500
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Cable Length | 50mm |
| Series | 15134 |
| Standards/Approvals | UL1061, ISO- and TS-16949, 2011/65/EU RoHS |
| Connector Type A | PicoBlade |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Number of Contacts A | 5 |
| Number of Rows A | 1 |
Key Features
- The cable features 5 female PicoBlade contacts at each end for secure signal transmission.
- Its black jacket provides protection and durability.
- Rated for 125 volts, suitable for low-power electronic connections.
- Compact 1.25 mm pitch PicoBlade connectors enable space-saving installations.
- Inbuilt friction locks secure connectors to prevent accidental disconnection in vibration-prone environments.
- Tin-plated contacts resist corrosion and extend service life.
- A temperature range from -40°C to +85°C ensures reliable operation under harsh conditions.
- Constructed with UL1061 discrete wires to facilitate ease of design and installation.
Product Description
Molex 15134-0500 Wire to Board Cable is a 5 Way Female PicoBlade to 5 Way Female PicoBlade assembly with a 50 mm cable length featuring a black jacket and rated for 125V. Designed for industrial and electronic applications, this cable provides a reliable low-power connection between circuit boards and components.
The 15134 Series uses a 1.25 mm pitch PicoBlade connector with tin-plated contacts that resist corrosion, ensuring longevity and consistent signal transmission. The friction lock mechanism ensures secure mating under conditions of vibration or handling, preventing accidental disconnections.
Built using UL1061 discrete wires, this cable simplifies design and prototyping processes. Its compact, single-row connector design saves space and allows for easy pin-to-pin mapping, which reduces the need for complex cable layouts.
This cable is tested and approved to standards including UL1061, ISO and TS-16949, and is compliant with 2011/65/EU RoHS regulations. Its operating temperature range from -40°C to +85°C guarantees operation in harsh environments common in industrial automation, process control systems, and medical equipment.
The cable has five contacts on both connector ends ensuring precise pin mapping and connectivity. Black jacket provides robust protection and durability. Compact connector design enables efficient use of space in electronic assemblies.
Tin-plated contacts minimize corrosion to extend cable lifespan. Friction lock design prevents connector unplugging under vibration conditions. Suitable for 125V voltage rating and 1A current applications. Constructed with UL1061 discrete wires for flexibility and ease of use.
Meets stringent quality and safety standards for industrial use. Ideal for use in process control, medical device electronics, and industrial automation.
This product is part of the Molex 15134 Series PicoBlade wire-to-board cable assemblies that facilitate dependable and compact connections essential in modern electronics. Explore more wire-to-board cables and connectors in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 125 volts, making it suitable for low-power electronic connections.
This model has a cable length of 50 mm and features a compact 1.25 mm pitch PicoBlade connector design.
Each connector has 5 female PicoBlade contacts, ensuring precise pin mapping and connectivity.
It operates within a temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments.
The cable is tested and approved to standards including UL1061, ISO- and TS-16949, and is compliant with 2011/65/EU RoHS regulations.
The cable is constructed with UL1061 discrete wires, which facilitate ease of design and installation.
Yes, it features a black jacket that provides protection and durability, along with tin-plated contacts that resist corrosion.
The inbuilt friction locks secure the connectors to prevent accidental disconnection, especially in vibration-prone environments.
It is ideal for use in process control, medical device electronics, and industrial automation.
This unit uses a PicoBlade connector type with a female gender on both ends.
The connector features a single row design, allowing for efficient use of space in electronic assemblies.
The country of origin for this cable is India.
