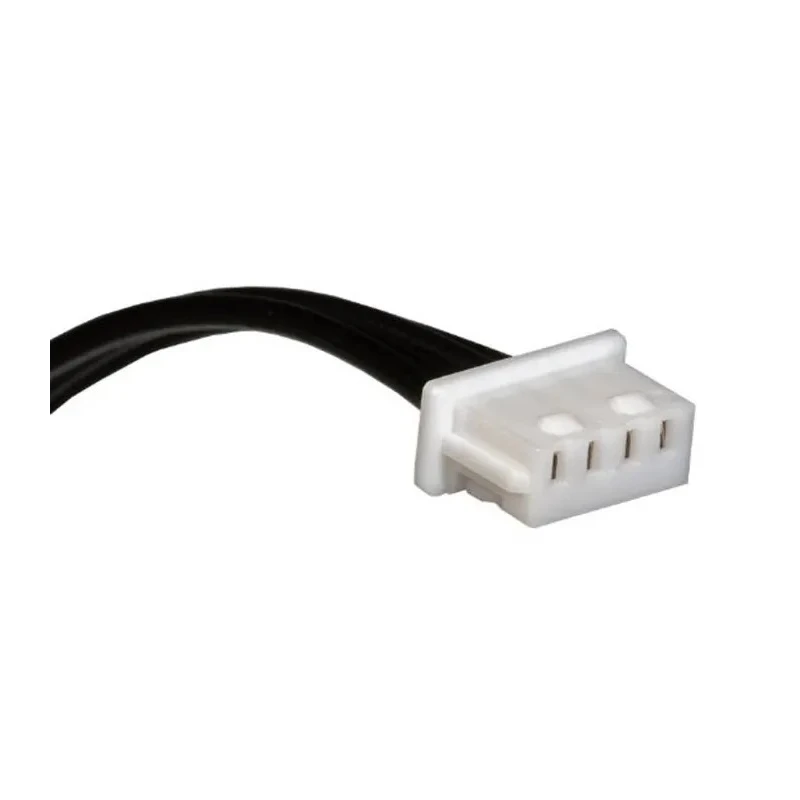

Molex Wire to Board Cable 4 Way Female PicoBlade Connector Black Jacket 50 mm 125V 15134-0400

Molex 15134-0400 Wire to Board Cable is a high-performance 4 Way Female PicoBlade cable assembly designed for reliable connections between components and printed circuit boards (PCBs). This wire-to-board cable features a compact pitch of 1.25 mm, allowing effective use of space in confined electronic assemblies. The connectors utilize thermoplastic housings that provide insulation and protection against electrical shock while friction locks ensure a secure connection that withstands vibrations and accidental disconnections.

The cable length of 50 mm makes this assembly suitable for short flexible connections in electronics design, especially where PCB layout space is limited. The contacts are fabricated from phosphor-bronze, known for excellent conductivity, and are plated with tin to prevent corrosion and ensure long-term reliability in diverse applications.

This cable assembly operates safely up to 125 volts and complies with RoHS 2011/65/EU environmental standards, making it a suitable choice for environmentally conscious industrial designs. Its wide operating temperature range from -40°C to +85°C allows deployment in harsh and industrial environments.

Applications include industrial process control systems where reliable signal transmission is critical, home appliance wiring connections, and gaming console assemblies requiring compact and durable cable solutions. The pin-to-pin mapping of the connectors reduces the complexity during design and production, enabling streamlined cable layouts without additional engineering overhead.

Equipped with PicoBlade female connectors on both ends for secure wire-to-board connections. Constructed using black thermoplastic jacket for insulation and durability. Cable length of 50 mm suitable for compact PCB assemblies.

Operates safely at a voltage rating of 125V with RoHS 2011/65/EU compliance. Friction locks on connector housings ensure secure mating in vibrating systems. Wide temperature operating range from -40°C to +85°C for harsh environment use.

Pin-to-pin map configuration supports simplified cable layout without design complexity. Contacts made from phosphor-bronze with tin plating for corrosion resistance and reliable conductivity. Ideal for industrial process-control systems, home appliances, and gaming consoles.

This Molex wire to board cable assembly is a proven choice in electronic manufacturing environments requiring reliable electrical interconnection with compact design constraints. Its robust mechanical and electrical properties contribute to effective, long-lasting circuit designs. Explore more Wire to Board Cables and related components from industry-leading brands in the Electronics & Electricals category at EnvMart.
