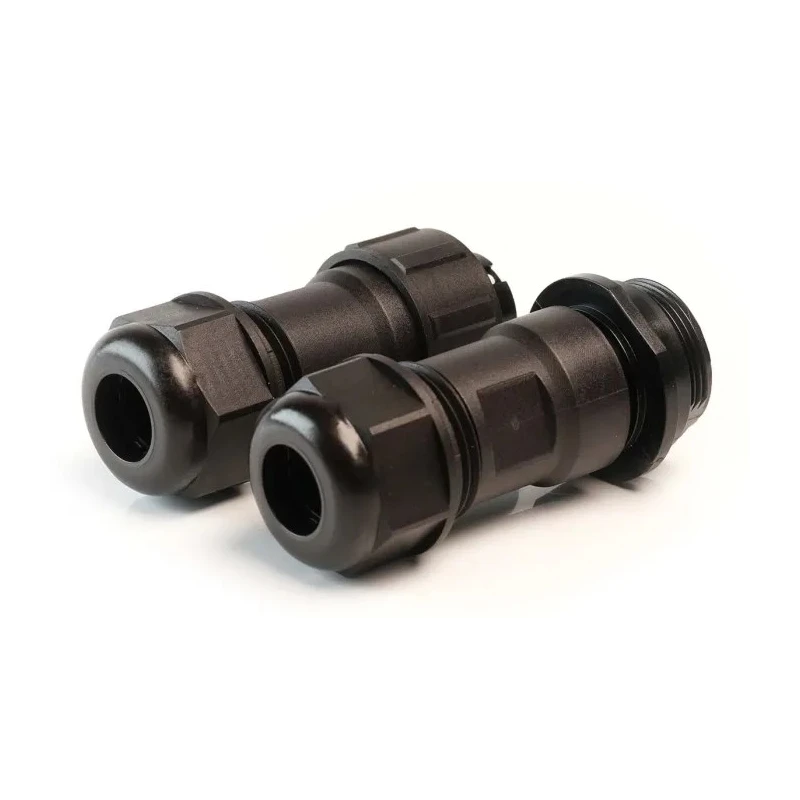

RS PRO Circular Connector 3 Contacts Cable Standard Plug Socket Male/Female IP68 Threaded 500V 10A IP68
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 10A |
| Model | IP68 |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Polyamide 66, Polycarbonate |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male/Female |
| Shell Size | 17 mm |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug, Socket |
Key Features
- Supports cable diameters from 6 mm to 10 mm.
- Threaded male and female plug/socket connectors allow easy assembly.
- Gold-plated brass contacts ensure corrosion resistance and durability.
- Rated for 10 A current and 500 V voltage for reliable electrical performance.
- Housing made of polyamide 66 and polycarbonate offers robust protection.
- Waterproof IP68 rating suitable for harsh industrial environments.
- Crimp termination type eliminates need for soldering during installation.
- Operates safely between -40°C and 85°C temperature range.
Product Description
RS PRO IP68 circular connector model IP68 features a 3-contact cable mount plug and socket system designed for industrial applications requiring secure and durable cable connections. Its threaded mating type allows quick assembly and disassembly on site, making it ideal for cable-to-cable inline connections.
Constructed with high-quality polyamide 66 and polycarbonate housing, these connectors are rated IP68, providing waterproof protection suitable for harsh and demanding environments. The electrical contacts are made of brass with gold plating for reliable conductivity and resistance to corrosion and rust.
Rated for 10 A current and 500 V voltage, this connector supports cables with an outer diameter from 6 mm to 10 mm. The crimp termination type eliminates the need for soldering, simplifying installation and maintenance. Operating temperature ranges from -40°C to 85°C enable usage across a wide spectrum of industrial, rail, and automated machinery settings.
This connector adheres to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring it is handled and packaged to prevent electrostatic discharge damage. The straight body orientation and 17 mm shell size further support secure and standardized connection requirements.
The connector set includes both male and female cable connectors. Ideal for use in Industrial Circular Connectors and power equipment applications. Ensures stable and secure connections in challenging environmental conditions.
Gold-plated brass contacts offer exceptional durability and conductivity. IP68 rating confirms the highest level of ingress protection against dust and water.
This RS PRO circular connector model IP68 is engineered for electrical and industrial professionals seeking reliable, high-quality components for power and electronic systems. Discover more high-grade connectors and components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 500V and a current of 10A, ensuring reliable electrical performance for various applications.
The housing is made of polyamide 66 and polycarbonate, while the contacts are constructed from brass and feature gold plating for corrosion resistance.
It has an IP68 rating, providing excellent protection against dust and water ingress, making it suitable for harsh industrial environments.
This connector operates safely between -40°C and 85°C, allowing it to function effectively in a wide range of temperatures.
It utilizes a crimp termination type, which simplifies installation and eliminates the need for soldering.
The connector features a straight body orientation and has a shell size of 17 mm, supporting secure and standardized connections.
This unit includes both male and female connectors, designed for cable-to-cable inline connections in industrial applications.
It supports cable diameters ranging from 6 mm to 10 mm, accommodating various cable sizes for different applications.
It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards to prevent electrostatic discharge damage during handling and packaging.
The threaded mating type allows for quick assembly and disassembly on site, making it convenient for various applications.
It is ideal for use in industrial applications, rail systems, and automated machinery, ensuring stable and secure connections in challenging environments.
