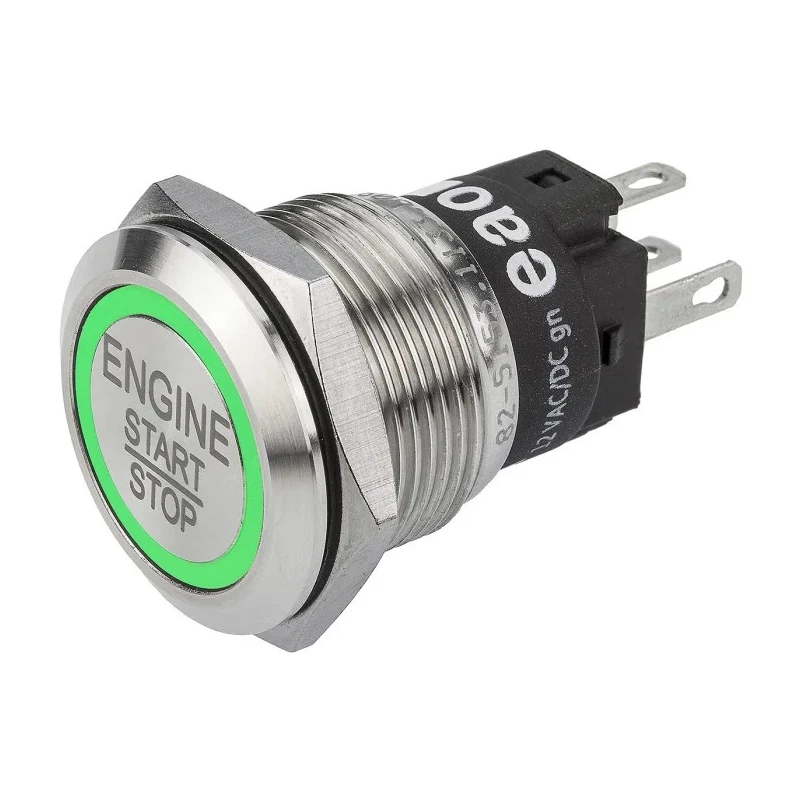

EAO 82 Series Illuminated Momentary Push Button Switch Panel Mount, 19 mm Cutout, SPDT Contact, Green LED 82-5153.1133.B097



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	32.5mm
Model	82-5153.1133.B097
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	UL, cUL, CB, CCC
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	START STOP
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

The switch features a robust stainless steel vandal resistant housing with IK10 impact resistance.
IP65 and IP67 rated for dust tight and waterproof frontal protection.
Operates reliably at 240V AC/DC and up to 3A switch contact current.
Silver actuator color with a round style and 32.5 mm overall length.
Suitable for exposed public areas, medical equipment, audio/video systems, and building management.
Offers over 1 million operational cycles with excellent tactile feedback.
Certified to UL, cUL, CB, and CCC standards for quality assurance.
Temperature operating range from -30°C to 70°C.

Product Description

EAO 82-5153.1133.B097 is an illuminated momentary push button switch designed for panel mounting applications requiring a secure and vandal resistant solution. The switch features a 19 mm panel cutout size and SPDT contact configuration, illuminated by a green LED for clear visual status indication. Its stainless steel actuator with a silver color and round style enhances robustness and aesthetic appeal.

The Series 82 switches are engineered for high durability with IK10 impact resistance and IP65/IP67 ratings, providing excellent protection against dust ingress and water jets, making them ideal for exposed public environments. This model can operate at voltages up to 240V AC and 240V DC with a switch contact current rating of 3A, allowing dependable performance in a range of industrial and commercial control systems.

With an overall length of 32.5 mm and tactile feedback exceeding one million operational cycles, this push button switch delivers both reliability and user confidence. It complies with international standards including UL, cUL, CB, and CCC, ensuring safety and quality validation. Operating temperature ranges from -30°C to 70°C, suitable for diverse environmental conditions.

Typical applications include use in exposed public areas, medical equipment, audio and video devices, building management systems, and machinery and factory equipment controls. The switch's legend is marked as 'START STOP' for intuitive operation.

This product originates from Switzerland, reflecting high-quality manufacturing standards. The robust design and reliable electrical characteristics make EAO Series 82 switches a preferred choice for demanding industrial and commercial control panel needs.

The switch features a robust stainless steel vandal resistant housing with IK10 impact resistance. IP65 and IP67 rated for dust tight and waterproof frontal protection. Operates reliably at 240V AC/DC and up to 3A switch contact current.

Silver actuator color with a round style and 32.5 mm overall length. Suitable for exposed public areas, medical equipment, audio/video systems, and building management. Offers over 1 million operational cycles with excellent tactile feedback.

Certified to UL, cUL, CB, and CCC standards for quality assurance. Temperature operating range from -30°C to 70°C. Explore more Push Button Switch solutions in our comprehensive Electronics & Electricals catalog on EnvMart.
