EAO 82 Series Push Button Switch, Momentary, Panel Mount, 19 mm Cutout, SPDT, IP65/IP67, 240 V dc/240 V ac 82-5171.1000



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	32.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	CB, CCC, cUL, UL
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

The switch features silver actuator color and momentary operation for quick actuation.
It supports a single-pole double-throw (SPDT) contact configuration with CO switch arrangement.
Rated for 240 V dc and 240 V ac operation, suitable for low-voltage control applications.
IP65 and IP67 ingress protection ratings ensure excellent resistance against dust and water ingress.
Constructed with stainless steel for vandal resistance and complies with IK10 impact resistance standards.
Operational temperature range spans from -30°C to +70°C for versatile environmental use.
Lightweight design weighing approximately 18 grams minimizes panel load.
Mechanical lifespan of over 1 million operating cycles offers long-lasting reliability.

Product Description

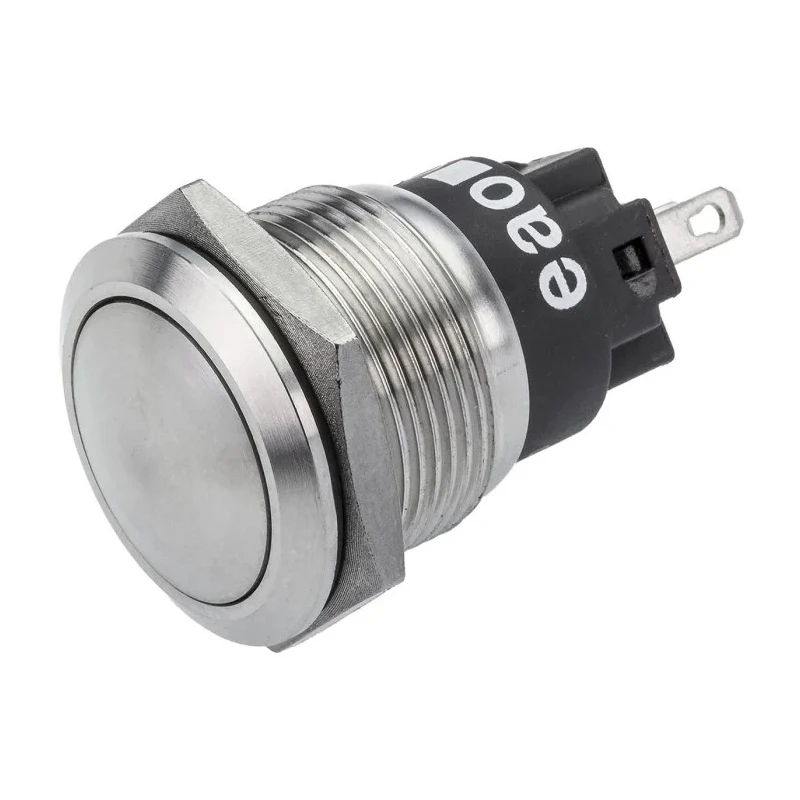

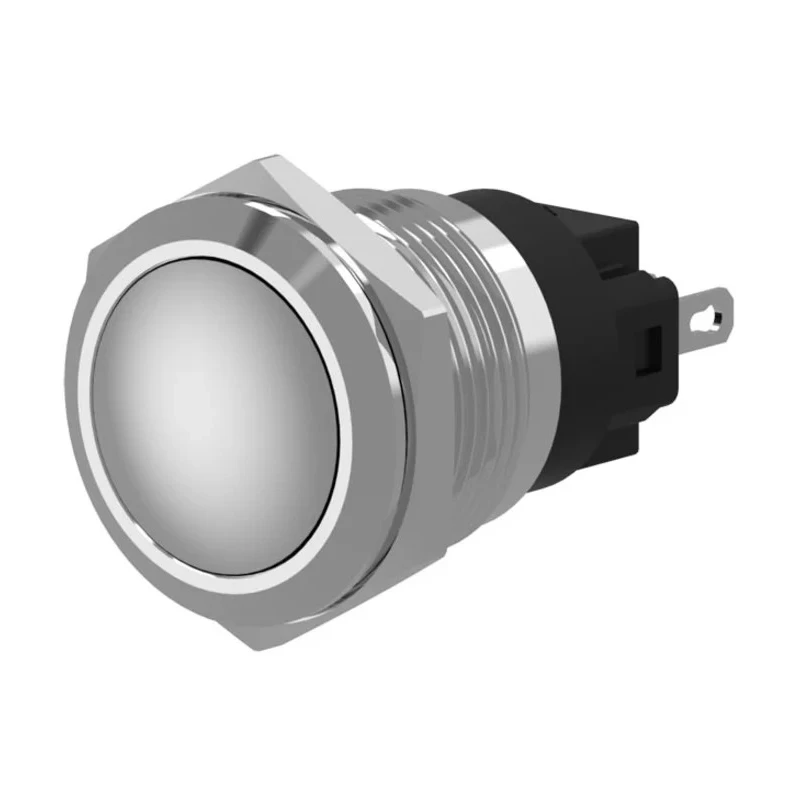

EAO 82 Series Push Button Switch model 82-5171.1000 is a momentary action switch designed for panel mounting with a 19 mm cutout size. It operates with a single-pole double-throw (SPDT) contact configuration, supporting both 240 V dc and 240 V ac voltages. This switch features a silver round actuator color and does not have illumination.

Manufactured from durable stainless steel, the switch provides excellent impact resistance meeting IK10 standards and offers IP65 and IP67 ingress protection, making it dust-tight and water-resistant to a depth of 1 meter for 30 minutes. It is designed to withstand harsh environmental conditions with an operational temperature range from -30°C to +70°C, suitable for industrial, manufacturing, medical, and self-service machinery applications.

The switch offers a compact flush-mount design that prevents unintended operation and weighs only 18 grams to reduce strain on panels. With a mechanical life expectancy exceeding one million cycles and certified compliance with CB, CCC, cUL, and UL approval standards, it is a reliable choice for demanding applications requiring vandal resistance and robust performance.

The actuator color is silver with a round style ensuring precise engagement. The panel cutout diameter is 19 mm, allowing for minimal panel space usage. The switch contact current rating is 3 A, suitable for a variety of electrical control circuits.

The length of the switch is 32.5 mm, compact for easy integration. Ideal for exposed public areas, medical equipment, audio-video devices, building management, and factory machinery control.

This EAO Series 82 Push Button Switch combines durability and performance for industrial automation and control systems where reliability and environmental resistance are critical. For more options and related switch components, explore the Electronics & Electricals category on EnvMart.
