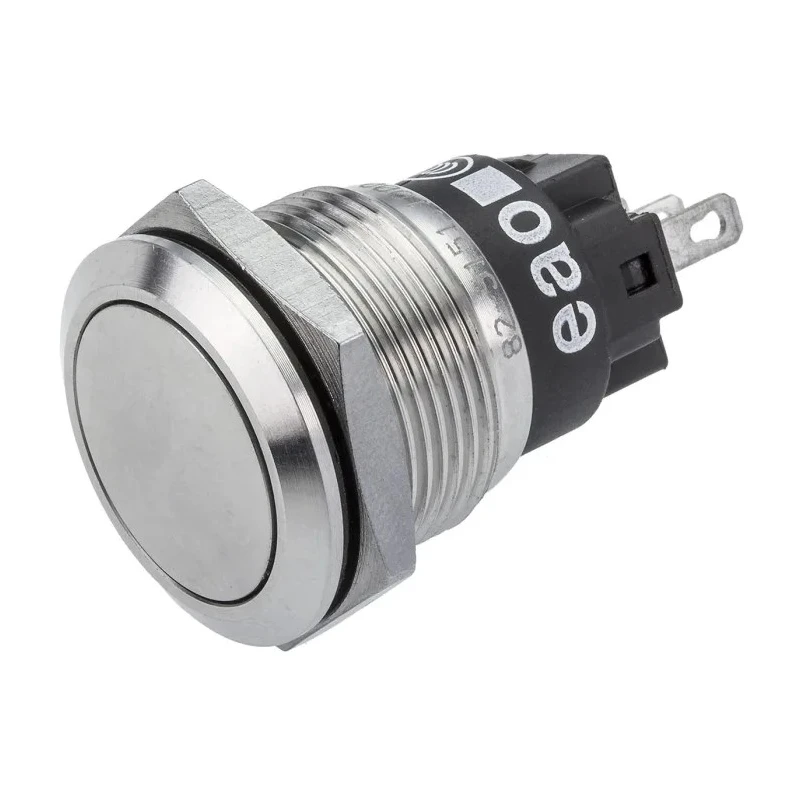

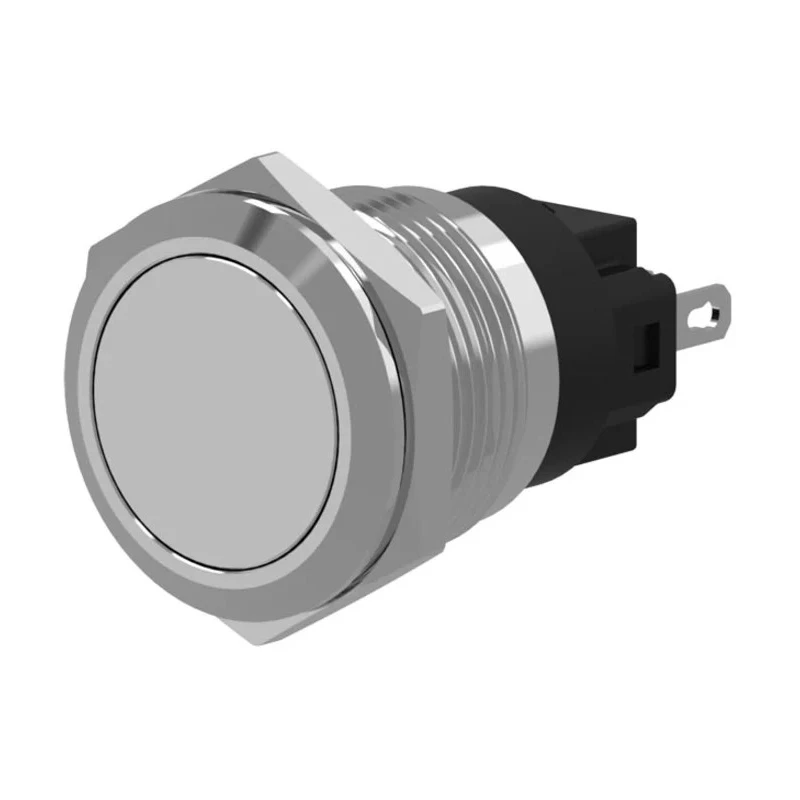

EAO 82 Series Silver Momentary Push Button Switch, Panel Mount, 19 mm Cutout, SPDT, IP65/IP67, 240 V dc/ac 82-5151.1000

EAO 82-5151.1000 is a high-quality momentary push button switch designed for panel mounting with a 19 mm cutout diameter. Featuring a single-pole double-throw (SPDT) contact configuration, this switch supports switching voltages of 240 V dc and 240 V ac and a contact current rating of 3 A. Its snap action switch configuration provides crisp and reliable momentary activation, suitable for controlling short-term electrical processes in industrial and commercial settings.

The actuator is silver colored with a round style, mounted flush on the panel to reduce accidental activation risk. The switch is housed in robust stainless steel, offering corrosion resistance and vandal protection with an IK10 rating, ensuring durability in demanding environments exposed to impact and harsh conditions.

Rated with an IP65 and IP67 ingress protection class, the switch is dust-tight and can withstand submersion in water up to 1 meter for 30 minutes, making it suitable for applications exposed to moisture or wet environments. It operates reliably across a wide temperature range from -30°C to +70°C, ideal for industrial, medical, vending machine, food and beverage, and public area equipment.

The switch boasts a mechanical life expectancy exceeding one million cycles, ensuring long-term durability and dependable operation. Safety and quality are affirmed by compliance with multiple standards including CB, CCC, cUL, and UL certifications.

Overall, this EAO 82 Series push button switch is engineered for precise, momentary control with robust construction and high ingress protection suitable for rigorous industrial and commercial applications. It fits perfectly into panels requiring a compact 19 mm cutout while providing reliable switching performance and user safety features.

The switch features a silver actuator color with round actuator style for easy operation. Operates at 240 V dc and 240 V ac with a contact current rating of 3 A. Snap action switch configuration ensures precise momentary switching action.

IP65 and IP67 ratings make it dust-tight and water-resistant to submersion up to 1 meter. Robust operating temperature range from -30°C to +70°C ensures reliable performance in diverse environments. The mechanical lifespan exceeds one million operating cycles for durability.

Flush mounting panel design prevents protrusion, minimizing accidental activation. Constructed with stainless steel housing for corrosion resistance and vandal resistance rated to IK10 impact protection. Ideal for applications in medical equipment, vending machines, food and beverage industries, and exposed public areas.

Complies with CB, CCC, cUL, and UL safety standards. Explore the extensive range of Push Button Switches available at EnvMart for industrial automation, electrical control systems, and commercial use.
