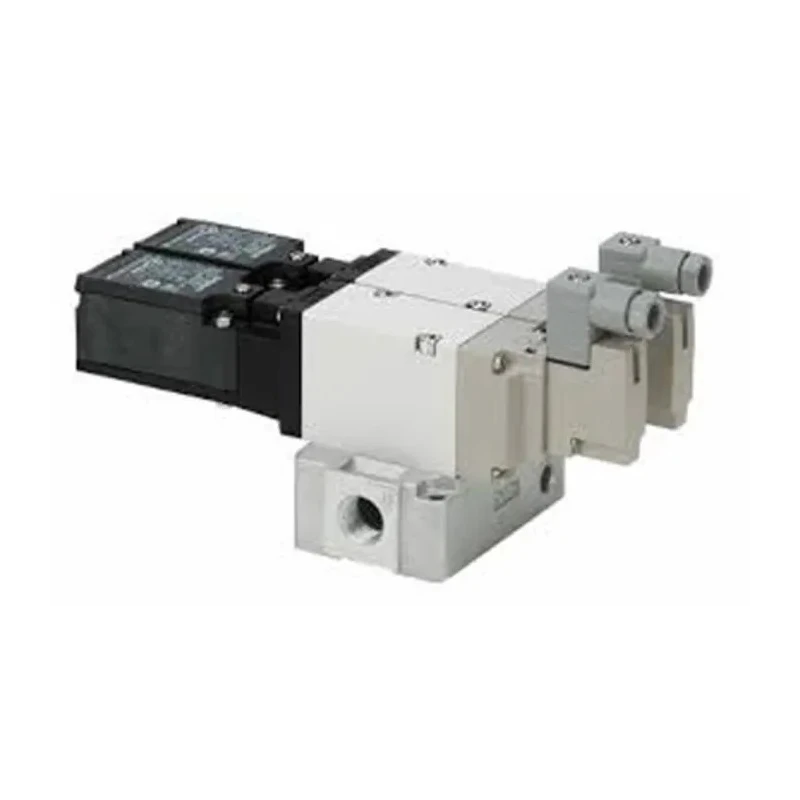

SMC Pneumatic Solenoid Valve 1/2 in Threaded Port, 24V, 0.45W Power, Die Cast Aluminium Body, VP700

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 1/2 in Threaded Port, 24V, 0.45W Power, Die Cast Aluminium Body, VP700



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	India
Voltage	24V
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Height	88.8mm
Length	224.8mm
Model	VP700
Width	40mm
Mount Type	Base
Series	VP700
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Threaded
Port Size	1/2 in
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Standards/Approvals	cULus, RoHS, CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.25MPa
Electrical Connection Type	DIN Connector
Maximum Pilot Pressure	0.7MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.45W

Key Features

Constructed with a durable die cast aluminium body for longevity.
Operates safely at maximum pressure of 1 MPa and pilot pressure range from 0.25 to 0.7 MPa.
Equipped with a DIN connector electrical connection and base mount type.
Designed to meet ISO13849-1 Category 3 & 4 safety standards with limit switch for position monitoring.
Compact dimensions of 224.8mm length, 88.8mm height, and 40mm width for versatile installation.
Includes safety features such as residual pressure release valve and LED position indicator.
Suitable for industrial applications including tyre pressure testing, moulding, and assembly machinery.

Product Description

SMC VP744-5DZ1-04F-X538 VP700 Pneumatic Solenoid Valve is a precision-engineered solenoid valve featuring a 1/2 inch threaded port and powered at 24 volts with a low solenoid power consumption of 0.45W. It is constructed with robust die cast aluminium body material ensuring durability and reliability under industrial conditions.

This valve supports a maximum operating pressure of 1 MPa and pilot pressure ranging from 0.25 MPa to 0.7 MPa, making it suitable for various compressed air safety control systems. It has a base mount type and uses a DIN connector for electrical connection.

Engineered to meet ISO13849-1 Category 3 & 4 safety system requirements, the valve includes dual stations for safe venting of compressed air on failure. Its integrated limit switch provides continuous monitoring of valve position (energised/de-energised), enhancing system safety. The LED position indicator and return spring operation for normally closed valve configuration further support operational reliability.

Compact with dimensions of 224.8 mm length, 88.8 mm height, and 40 mm width, it fits seamlessly into modular setups, especially with SMC FRL systems. The valve is fitted with a varistor voltage suppressor, enabling a maximum operating frequency of 30 times per minute and a minimum of once per week, supporting long-term industrial use.

This pneumatic solenoid valve is ideal for industrial, manufacturing, laboratory, and automation environments including tyre pressure testing machines, moulding machines, and assembly lines. It is not suitable for hazardous area certification applications.

Durable die cast aluminium body resists harsh industrial environments. Meets stringent ISO13849-1 safety standards for reliable operation. Equipped with dual stations and limit switch for enhanced safety and monitoring. Low power consumption of 0.45W for energy-efficient operation.

Compact dimensions enable easy integration into pneumatic systems. Fitted with varistor to suppress voltage spikes, prolonging valve life. Supports a wide range of pneumatic applications across industries. Discover advanced Pneumatic Solenoid Valves including the full range of SMC products at EnvMart, your destination for industrial valves and fittings.
