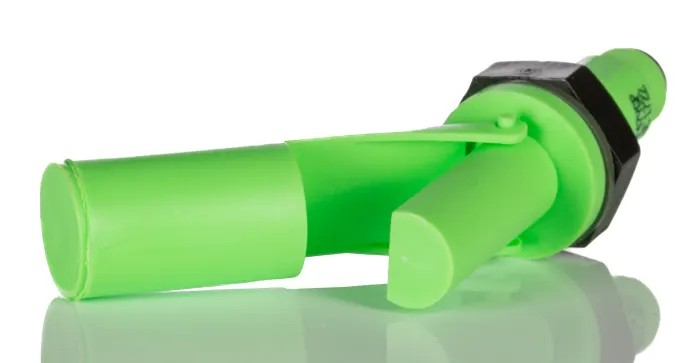

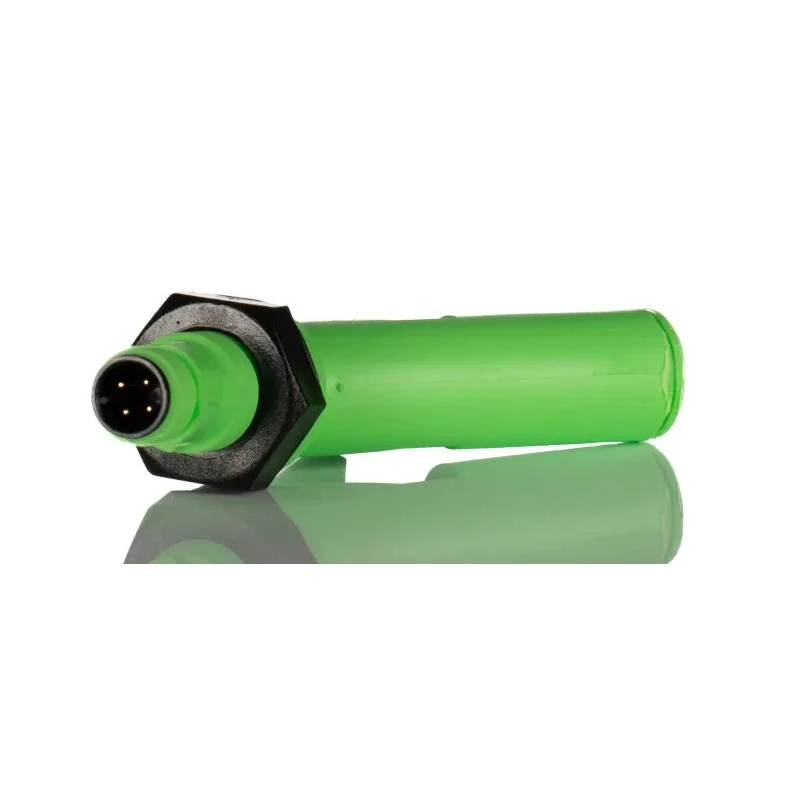

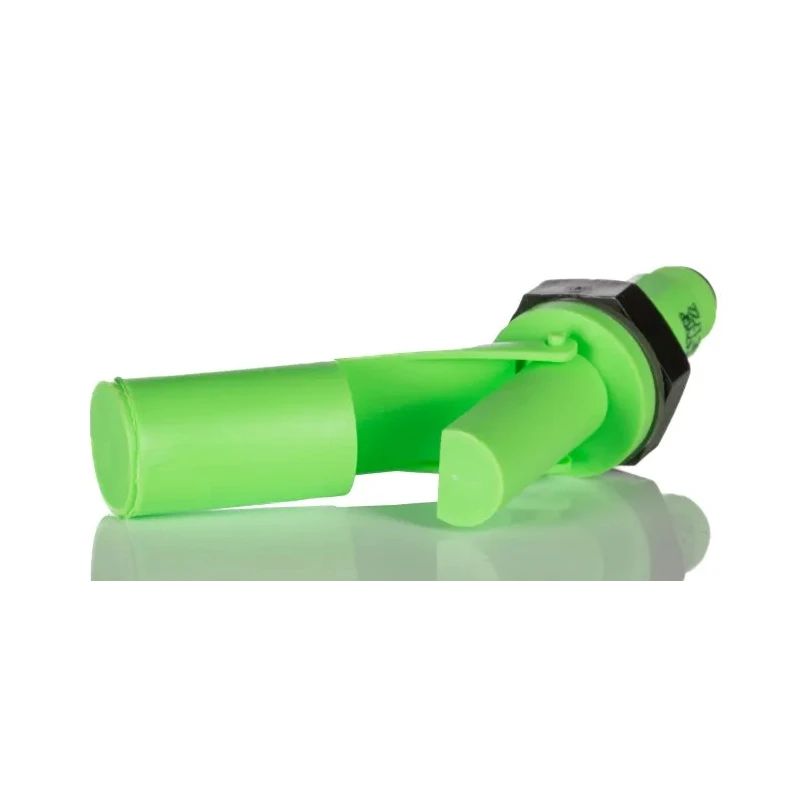

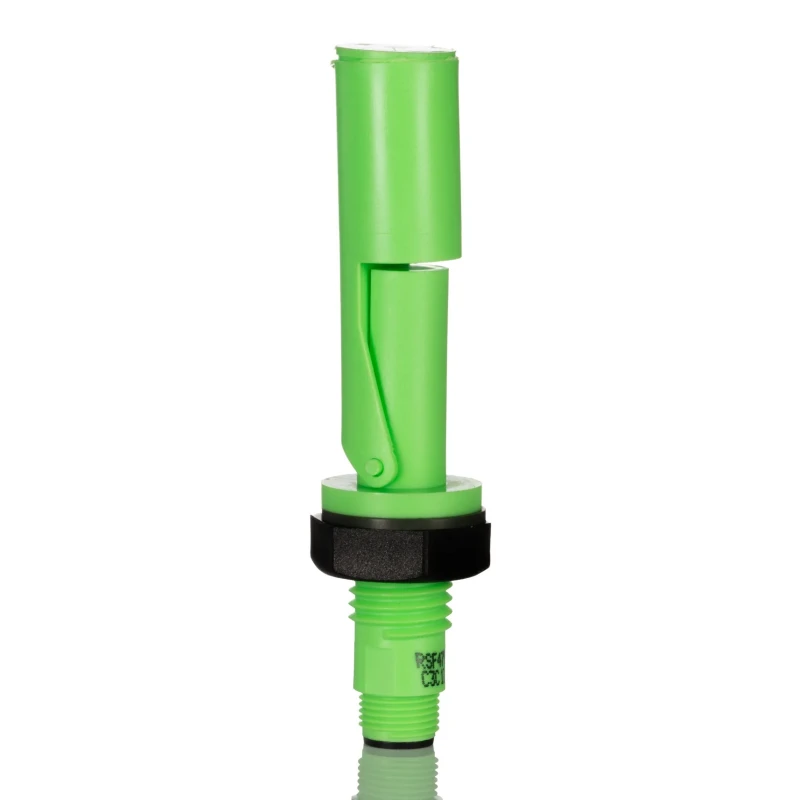

Cynergy3 RSF40 Series Horizontal Viton Float Switch NO/NC 240V AC Max, 120V DC Max RSF47YGP/RS
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cynergy3 |
| Model | RSF47YGP/RS |
| Mount Type | Horizontal |
| Housing Material | Polyvinyl Fluoride |
| Series | RSF40 |
| Maximum Operating Temperature | 105°C |
| Switch output | NO/NC |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 600mA |
| Maximum dc Voltage | 120V dc |
| Standards/Approvals | WRAS and NSF |
| Maximum AC Voltage | 240V ac |
| Gasket Material | Viton |
Key Features
- Compact horizontal mounting suitable for small tank installations.
- Viton gasket ensures excellent chemical resistance and leak prevention.
- Wide operating temperature range from -10°C to 105°C for harsh environments.
- Switch output configurable to normally open or normally closed by rotation.
- Robust PVDF housing material offers durability and chemical resistance.
- Maximum current capacity of 600 mA supports low power applications.
- Suitable for level sensing in commercial washing machines, vending machines, and evaporator units.
- Standards compliant with WRAS and NSF approvals.
Product Description
The Cynergy3 RSF47YGP/RS is a Horizontal Viton Float Switch designed for liquid level measurement in compact spaces. It features a durable Polyvinyl Fluoride (PVDF) housing and a Viton gasket that provides a reliable seal against various industrial liquids. Its switch output can be set to either Normally Open (NO) or Normally Closed (NC) by simply rotating the unit 180 degrees.
With a compact length of 98 mm, this float switch is ideal for installation in small tanks where access from the top or bottom is limited. It operates effectively within a wide temperature range of -10°C to 105°C, making it suitable for harsh and demanding environments.
The switch supports a maximum AC voltage of 240 V and DC voltage of 120 V with a maximum current rating of 600 mA, enabling it to cater to low-power control applications commonly found in commercial washing machines, vending machines, evaporator units, and other industrial systems requiring accurate level detection.
Compact horizontal mounting suitable for restricted spaces. Viton gasket for chemical resistance and leak protection. Wide operating temperature from -10°C to 105°C. Configurable NO/NC switch output by unit rotation. Durable PVDF housing withstands challenging industrial conditions.
Maximum current capacity of 600 mA. Applicable standards: WRAS and NSF approved. Ideal for tanks with limited top or bottom access. Country of origin: China.
This float switch is widely used in industrial automation, water treatment, HVAC systems, and other commercial applications requiring reliable liquid level control. Its robust materials and versatile installation options make it a dependable component for sensor setups in industrial and commercial environments.
Explore more Float Switches and Automation & Control Gear products on EnvMart for comprehensive solutions tailored to your instrumentation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the Cynergy3 RSF47YGP/RS float switch is 105°C.
This float switch can operate at a minimum temperature of -10°C.
The maximum current capacity of this float switch is 600 mA.
The switch output can be configured to either Normally Open (NO) or Normally Closed (NC) by rotating the unit 180 degrees.
The housing material of the RSF47YGP/RS is Polyvinyl Fluoride (PVDF), which provides durability and chemical resistance.
This model features a Viton gasket, ensuring excellent chemical resistance and leak prevention.
The float switch supports a maximum AC voltage of 240 V and a maximum DC voltage of 120 V.
This float switch is suitable for level sensing in commercial washing machines, vending machines, and evaporator units, among other industrial applications.
The compact length of this float switch is 98 mm, making it ideal for small tank installations.
The RSF47YGP/RS complies with WRAS and NSF standards, ensuring its suitability for various applications.
This model is designed for horizontal mounting, making it suitable for installations in restricted spaces.
The country of origin for this float switch is China.
