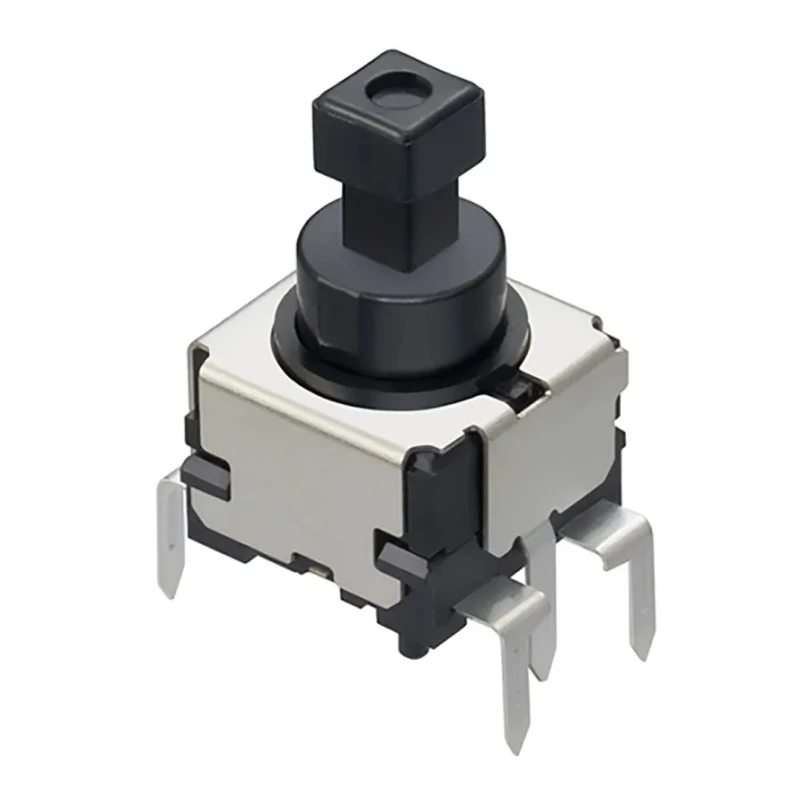

Alps Alpine SPEF Series Latching PCB Push Button Switch SPDT 14.5 V dc 100 V ac SPEF110100

Name: Alps Alpine SPEF Series Latching PCB Push Button Switch SPDT 14.5 V dc 100 V ac SPEF110100
Brand: Alps Alpine
SKU: 141703
Price: 5.02 USD
Availability: InStock



Category Push Button Switch Brand Alps Alpine Condition New

Specifications

Country of Origin	India
Brand	Alps Alpine
Height	6.9mm
Model	SPEF110100
Width	9.4mm
Mount Type	PCB
Series	SPEF
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Terminal type	Solder Pin
Standards/Approvals	RoHS
Switch Operation	Latching
Actuator Colour	Black
Contact DC Voltage	14.5V dc
Actuator Style	Square
Switch Contact Current	1A
Contact AC Voltage	100V ac

Key Features

The switch features a black square actuator for easy operation.
It supports solder pin terminal type suitable for PCB mounting.
Designed for silent switching and reliable latching function.
Operating temperature ranges from -40°C to 85°C ensuring durability in various environments.
Has a maximum switching contact current of 1A for moderate current applications.
The compact dimensions with height of 6.9mm and width of 9.4mm enable integration into tight spaces.
The product conforms to RoHS standards supporting environmental safety.
Mean time before failure (MTBF) is rated at 30,000 cycles for reliable lifetime performance.

Product Description

Alps Alpine SPEF110100 is a high-quality latching push button switch designed for PCB mounting, featuring a single-pole double-throw (SPDT) contact configuration. This push button switch operates at a DC voltage of 14.5 V and can handle up to 100 V AC, making it versatile for both low voltage DC and higher voltage AC switching requirements.

The switch actuator is black and square-shaped, with a silent switching mechanism ensuring noiseless operation. It uses solder pin terminals that allow easy and reliable connection to printed circuit boards either by reflow soldering or through-hole mounting methods.

With operational temperature capabilities ranging from -40°C to 85°C, the SPEF series switches are robust for use in demanding industrial, automotive, and electronic controls environments.

The compact size (6.9mm height and 9.4mm width) facilitates installation even where space is limited. Its electrical rating includes a 1A maximum switching contact current, which is suitable for control circuits and other electronic applications.

Conforming to RoHS environmental standards, this switch is lead-free and eco-friendly, supporting compliance with modern regulations. The mean time before failure (MTBF) of 30,000 cycles indicates a reliable product life expectancy suitable for commercial and automotive use.

The Alps Alpine SPEF110100 push button switch is widely used in automotive electronics, general industrial automation, consumer electronics, and other applications requiring compact, reliable switching components.

The switch includes latching operation functionality for stable and persistent contact activation. Available terminal types support versatile PCB mounting options. Silent actuator enhances user experience in noise-sensitive environments.

Robust temperature range allows use in harsh industrial and automotive conditions. Compact dimensions and low profile facilitate integration into compact electronic designs.

Explore the wide range of Alps Alpine Push Button Switches and components in the EnvMart catalog for matching industrial and electronic switch solutions suitable for integration, repair, or new manufacturing projects.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch features a single-pole double-throw (SPDT) contact configuration, allowing it to control multiple circuits with a single switch.

It operates at a DC voltage of 14.5 V and can handle up to 100 V AC, making it suitable for both low voltage and higher voltage applications.

The maximum switching contact current is rated at 1A, which is appropriate for moderate current applications.

The switch can operate in a temperature range from -40°C to 85°C, making it suitable for various environmental conditions.

It uses solder pin terminals, which allow for reliable connection to printed circuit boards through reflow soldering or through-hole mounting methods.

The switch has a height of 6.9mm and a width of 9.4mm, allowing for integration into tight spaces.

The actuator is square-shaped and colored black, designed for easy operation and a user-friendly experience.

Yes, it conforms to RoHS standards, indicating it is lead-free and supports environmental safety.

The mean time before failure (MTBF) is rated at 30,000 cycles, indicating a reliable product life expectancy.

This switch is widely used in automotive electronics, general industrial automation, and consumer electronics, among other applications requiring reliable switching components.

The latching operation allows for stable and persistent contact activation, meaning once activated, the switch remains in that state until manually changed.

This model is designed for PCB mounting, making it suitable for integration into various electronic designs.
