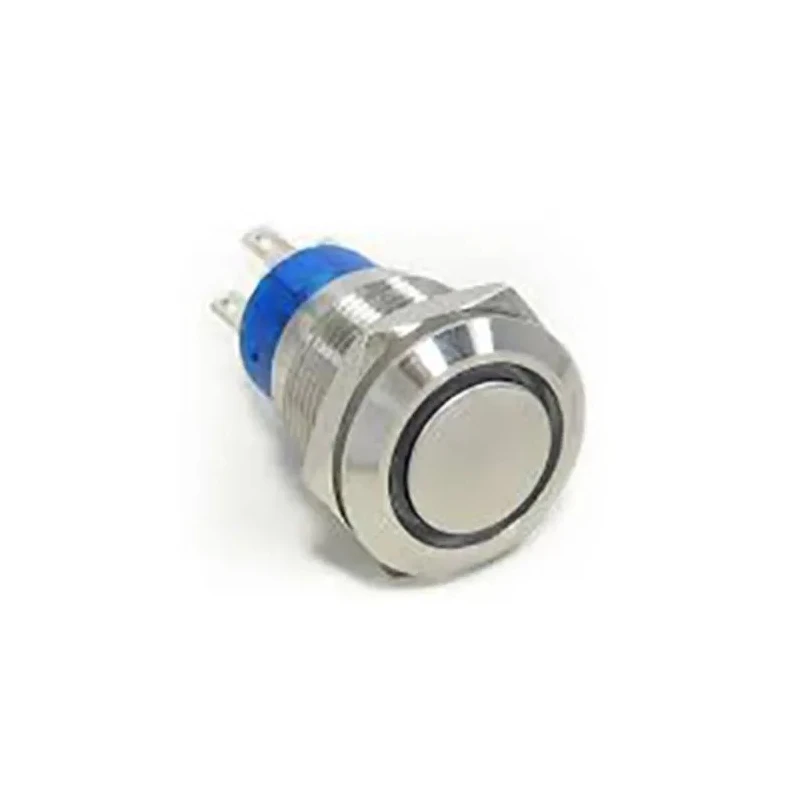

TE Connectivity AV22 Series Push Button Switch, Latching, Panel Mount, 22.2 mm Cutout, SPDT, IP67, 250 V AC AV22
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 22mm |
| Model | AV22 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV22 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | EU ELV Compliant, REACH Compliant, UL (E46765) |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- Silver actuator ensures clear visibility and operation.
- Latching switch operation for reliable on/off control.
- Panel mount type suitable for secure installation.
- SPDT contact configuration provides versatile switching capabilities.
- Wire lug terminal type facilitates easy wiring connections.
- IP67 rating guarantees protection against dust and water ingress.
- Operating temperature range from -20°C to 55°C for varied environments.
- Supports contact voltages up to 250 V AC and DC.
Product Description
TE Connectivity AV22 Series Push Button Switch AV22 is a high-quality, latching push button switch designed for panel mounting with a precise 22.2 mm cutout. It features a single pole double throw (SPDT) contact configuration, providing versatile control in electrical and automation systems. The switch actuator is silver in color and operates via a push button mechanism offering reliable latching action.
This switch is rated IP67 for protection against dust and water ingress, making it well-suited for industrial and harsh environment applications. It supports a contact voltage of 250 V AC and DC, and a contact current of 3 A, ensuring compatibility with a wide range of electrical control panels and instrumentation equipment.
Operating temperature ranges from -20°C to 55°C, offering robust operation in diverse climatic conditions. Its wire lug terminal type allows easy and secure wiring connections.
Typical applications include control and communication equipment, elevators, escalators, and instrumentation devices requiring a vandal-proof and secure panel-mounted push button interface.
The design features a vandal-proof rear mounting jam nut ensuring long-term durability and mechanical security. This makes the AV22 Series ideal for industrial control panels demanding premium user interface solutions with excellent performance and lifespan.
Silver actuator ensures clear visibility and operation. Latching switch operation for reliable on/off control. Panel mount type suitable for secure installation. SPDT contact configuration provides versatile switching capabilities.
Wire lug terminal type facilitates easy wiring connections. IP67 rating guarantees protection against dust and water ingress. Operating temperature range from -20°C to 55°C for varied environments. Supports contact voltages up to 250 V AC and DC.
Durable actuator style with push button mechanism. Complies with EU ELV, REACH, and UL (E46765) safety approvals.
Explore EnvMart’s wide range of Push Button Switches and find reliable industrial-grade components by leading brands like TE Connectivity for your electrical and automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single pole double throw (SPDT) contact configuration, providing versatile control options in electrical systems.
It has an IP67 rating, ensuring protection against dust and water ingress, making it suitable for harsh environments.
The operating temperature range is from -20°C to 55°C, allowing it to function effectively in various climatic conditions.
It supports contact voltages up to 250 V AC and DC, making it compatible with a wide range of electrical applications.
This model features a wire lug terminal type, facilitating easy and secure wiring connections.
The required panel cutout size for installation is 22.2 mm.
The actuator style is a push button, designed for reliable latching operation.
The maximum contact current is 3 A, which is suitable for various control applications.
It complies with EU ELV, REACH, and UL (E46765) safety approvals, ensuring it meets regulatory requirements.
Typical applications include control and communication equipment, elevators, escalators, and instrumentation devices.
This model is a panel mount type, designed for secure installation in various applications.
The actuator is silver in color, ensuring clear visibility and operation.
