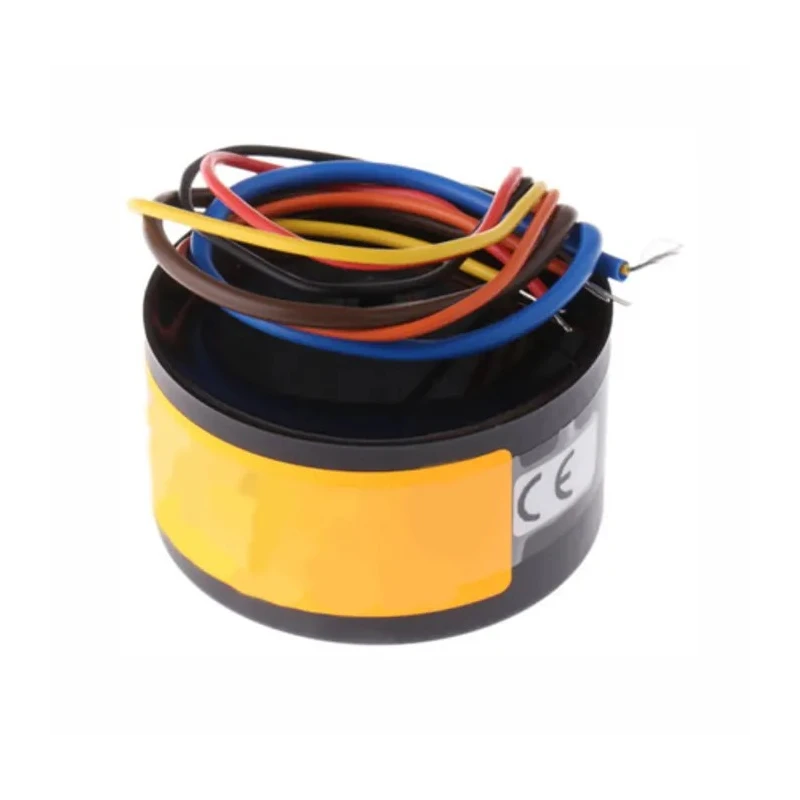

RS PRO 230 V ac Toroidal Transformer Dual Secondary 2 x 55 V ac 10A 500 VA Surface Mount 148mm Diameter 65mm Height 123-4036

RS PRO 123-4036 Toroidal Transformer is a high-quality encapsulated power transformer featuring a single 230 Vac primary winding and dual 55 V ac secondary windings capable of delivering 10A current per output. This design allows the secondary windings to be used independently or connected in series or parallel depending on the application.

The fully encapsulated case constructed with UL94-V0 rated Nylon 6.6 material provides exceptional flame retardancy and protection against environmental factors. The compact toroidal design offers lower iron losses and reduced noise emissions compared to traditional stacked lamination transformers.

Mounting is simplified with a surface mount type and center hole fixing, although the fixing bolt is not included. The transformer is terminated with wire leads for ease of connection. It operates efficiently across a frequency range of 50 to 60 Hz, making it suitable for various electrical and electronic equipment.

Operating temperature range spans from 105°C minimum to 180°C maximum, ensuring reliable function in demanding industrial environments. This model complies with major international standards including EN61558-1 Class II, UL506, UL51, and EN60065 Class II, ensuring safety and performance.

The RS PRO 123-4036 is ideal for use in industrial controls, audio equipment, medical devices, and other applications requiring clean, quiet power conversion with reliable performance.

Fully encapsulated design for enhanced durability and safety. Low induced noise and iron loss ensuring efficient operation. Small size and lightweight compared to traditional stacked lamination transformers. Surface mount type with easy center-hole fixing.

Wire termination type facilitates straightforward wiring connections. Operating frequency range from 50Hz to 60Hz for compatibility with common power supplies. Wide operating temperature range from 105°C minimum to 180°C maximum.

Complies with EN615581 Class II, UL506, UL51, and EN60065 Class II standards. Case material meets UL94-V0 Nylon 6.6 flame retardancy requirements. 100% electrical and flash tested for reliable performance.
