RS PRO Digital Bench Power Supply 2-Output 0 V AC to 32V, 192 W, 3 A Max 122-5037

Free Delivery in India | Lowest Global Shipping Charges

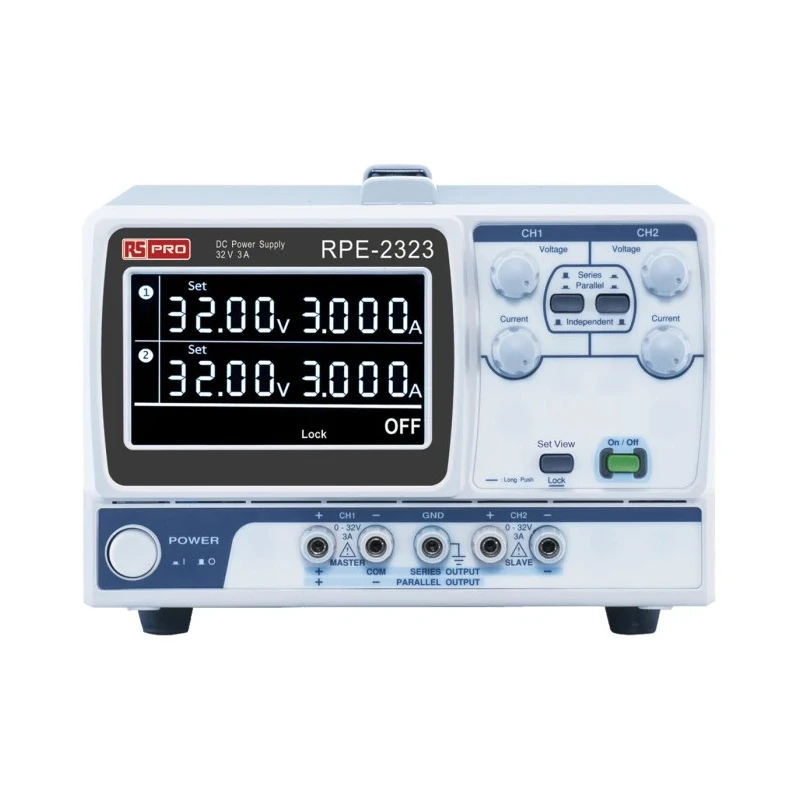

RS PRO Digital Bench Power Supply 2-Output 0 V AC to 32V, 192 W, 3 A Max 122-5037

Name: RS PRO Digital Bench Power Supply 2-Output 0 V AC to 32V, 192 W, 3 A Max 122-5037
Brand: RS PRO
SKU: 140416



Category Bench Power Supplies Brand RS PRO Condition New

Specifications

Country of Origin	China
Display	4.3 Inch LCD Display
Brand	RS PRO
Power	192W
Height	155mm
Model	122-5037
Depth	306mm
Width	210mm
Output type	Digital
Maximum Operating Temperature	40°C
Minimum Operating Temperature	0°C
Plug Type	IEC 320
Number of outputs	2
Maximum Output Current	3A
Standards/Approvals	RoHS
Maximum Output Voltage	32V
Maximum Supply Voltage	230V ac
Digital/Analogue	Digital
Supported Number of Displays	1
Minimum Output Voltage	0V ac
Minimum Output Current	0A

Key Features

Offers output voltage range from 0 V AC to 32 V for versatile applications.
Features a 4.3 inch LCD digital display for clear voltage and current readings.
Equipped with smart cooling fan to minimize noise during operation.
Supports series and parallel operations allowing up to 32V/6A output.
Compact design with dimensions 210mm width, 155mm height, and 306mm depth.
Operates reliably between 0°C and 40°C ambient temperature.
Incorporates a key lock function to protect device settings during testing.
Powered through IEC 320 plug with maximum supply voltage of 230V AC.

Product Description

RS PRO 122-5037 Digital Bench Power Supply is a reliable and efficient power source featuring 2 independent isolated outputs. This linear DC power supply offers a maximum output power of 192 W and supports output voltages from 0 V AC up to 32 V with a max current of 3 A, suitable for a range of electronic testing and development tasks.

The device is equipped with a high-resolution 4.3 inch LCD digital display that allows precise voltage and current monitoring, with setting and read back resolutions of 100mV and 10mA respectively.

Designed for optimal performance, it uses a smart cooling fan to reduce noise while maintaining efficient heat dissipation. Its compact footprint measures 210mm width, 155mm height, and 306mm depth, making it suitable for benchtop use in industrial and laboratory environments.

The power supply supports series and parallel operation modes, enabling users to configure outputs for up to 32V at 6A current output to match their application requirements. The built-in key lock function prevents accidental changes to voltage and current settings, protecting devices under test (DUTs).

Operating between ambient temperatures of 0°C and 40°C, this power supply features IEC 320 plug type for connection to a 230V AC mains supply. It complies with RoHS standards, ensuring environmentally responsible manufacturing.

Applications include communication equipment testing, medical device development, low noise amplifiers, and various signal processing tasks requiring stable, low noise DC power. Offers output voltage range from 0 V AC to 32 V for versatile applications.

Features a 4.3 inch LCD digital display for clear voltage and current readings. Equipped with smart cooling fan to minimize noise during operation. Supports series and parallel operations allowing up to 32V/6A output. Compact design with dimensions 210mm width, 155mm height, and 306mm depth.

Operates reliably between 0°C and 40°C ambient temperature. Incorporates a key lock function to protect device settings during testing. Powered through IEC 320 plug with maximum supply voltage of 230V AC. Conforms to RoHS standards ensuring environmental compliance.

Designed primarily for industrial, laboratory, and electronics test environments. Explore EnvMart for more professional Bench Power Supplies and test measurement instruments from trusted brands like RS PRO.
