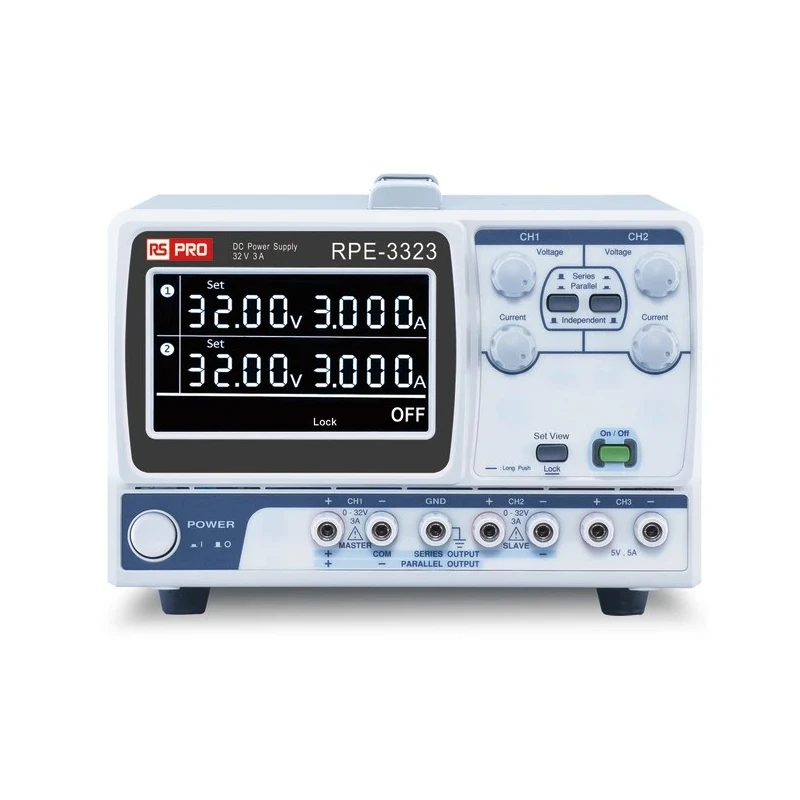

RS PRO Digital Bench Power Supply 3-Output 0 V AC to 32 V, 217 W Power, 5 A Max Current 122-5036

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Digital Bench Power Supply 3-Output 0 V AC to 32 V, 217 W Power, 5 A Max Current 122-5036

Name: RS PRO Digital Bench Power Supply 3-Output 0 V AC to 32 V, 217 W Power, 5 A Max Current 122-5036
Brand: RS PRO
SKU: 140414
Price: 20.22 USD
Availability: InStock



Category Bench Power Supplies Brand RS PRO Condition New

Specifications

Country of Origin	China
Display	4.3 Inch LCD Display
Brand	RS PRO
Power	217W
Height	155mm
Model	122-5036
Depth	306mm
Width	210mm
Output type	Digital
Maximum Operating Temperature	40°C
Minimum Operating Temperature	0°C
Plug Type	IEC 320
Number of outputs	3
Maximum Output Current	5A
Standards/Approvals	RoHS
Maximum Output Voltage	32V
Maximum Supply Voltage	230V ac
Digital/Analogue	Digital
Supported Number of Displays	1
Minimum Output Voltage	0V ac
Minimum Output Current	0A

Key Features

Provides a DC output voltage range from 0 to 32 V.
Maximum output current of 5 A for versatile testing applications.
Features a 4.3 inch LCD display with high resolution and clear read-out.
Compact design with dimensions 210mm width, 155mm height, and 306mm depth.
Low noise output achieved through smart cooling fan technology.
Supports series and parallel operation for output flexibility.
Built-in digital panel control with key lock function for secured operation.
Compatible with input supply voltage of 230 V AC.

Product Description

RS PRO 122-5036 Digital Bench Power Supply is a high-quality, multiple output linear DC power supply designed to meet industry standards. It provides three independent isolated output channels delivering up to 217 W power with maximum 5 A current and 32 V voltage output. Featuring a 4.3 inch LCD display, the device offers precise setting and readback resolution of 100 mV and 10 mA, respectively.

The linear design ensures low noise and excellent regulation, supported by a smart cooling fan to maintain operational stability. It includes a digital panel control interface replacing conventional knobs and switches, along with a key lock function to prevent unauthorized parameter changes, protecting devices under test (DUTs).

Designed for use in demanding industrial, laboratory, and electronic testing environments, it supports both series and parallel output modes for flexible power delivery. Operating with a standard IEC 320 plug type, it accepts a supply voltage of 230 V AC and functions reliably across an ambient temperature range of 0°C to 40°C.

Its compact footprint (210 mm width x 155 mm height x 306 mm depth) allows easy integration into workbenches and testing stations. The power supply is RoHS compliant and manufactured in China, ensuring compliance with environmental standards.

Typical application areas include communication equipment testing, medical device evaluation, low noise amplifier setups, and signal processing. The product is supplied with a user manual on CD, power cord, and test leads for immediate deployment.

Provides a DC output voltage range from 0 to 32 V. Maximum output current of 5 A for versatile testing applications. Features a 4.3 inch LCD display with high resolution and clear read-out. Compact design with dimensions 210mm width, 155mm height, and 306mm depth.

Low noise output achieved through smart cooling fan technology. Supports series and parallel operation for output flexibility. Built-in digital panel control with key lock function for secured operation. Compatible with input supply voltage of 230 V AC.

Operates reliably within 0°C to 40°C ambient temperature range. Explore the RS PRO category in EnvMart for further reliable industrial-grade power supply solutions tailored to professional testing and measurement needs.
