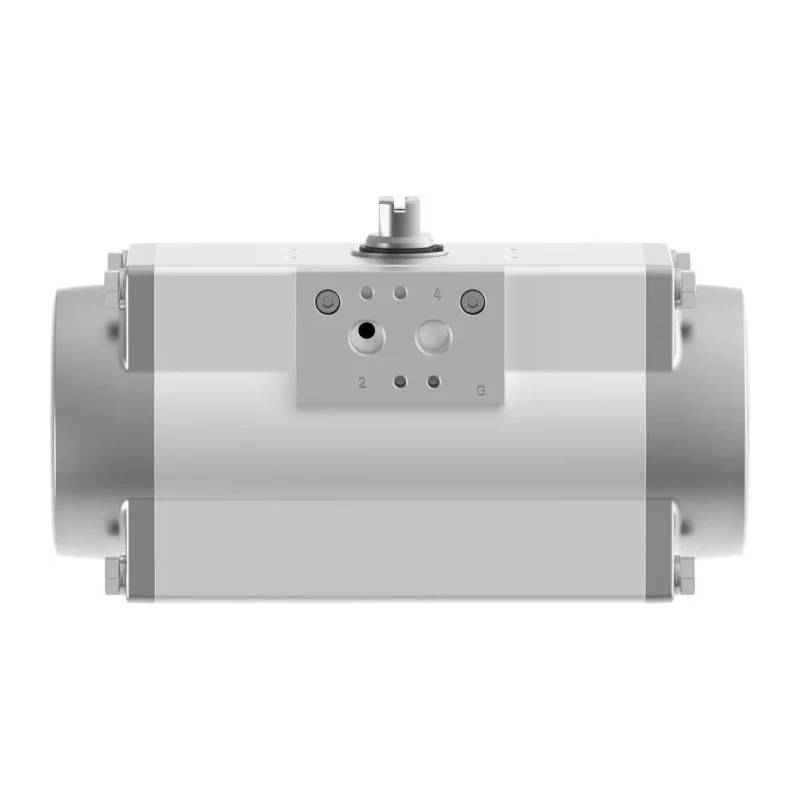

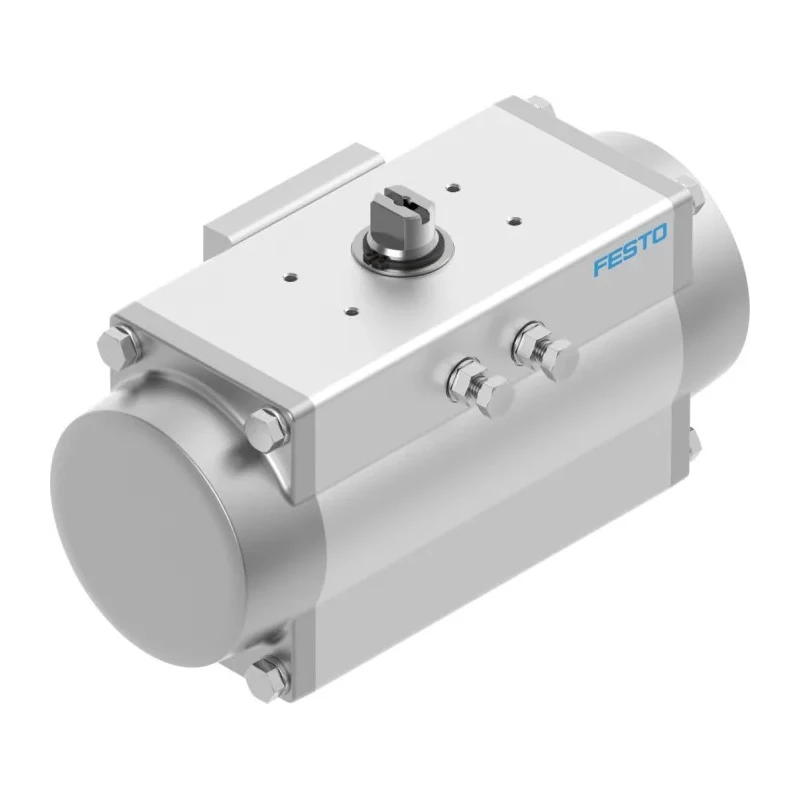

Festo Pneumatic Rotary Actuator Single Acting ISO 5211 Thread 1/4 in G 8 bar Max Pressure 41.6Nm DFPD-120-RP-90-RS30-F0507

Festo DFPD-120-RP-90-RS30-F0507 Pneumatic Rotary Actuator is a single-acting device designed for precision control in industrial automation environments. It features a 120 mm bore diameter and operates with a rotary angle of 90°, delivering reliable and repeatable motion for valve and equipment actuation.

This actuator accommodates a maximum operating pressure of 8 bar, enabling it to handle demanding pneumatic applications efficiently. Its design conforms to ISO 5211 connection thread standards, ensuring straightforward mounting and integration with a variety of valve types including butterfly, ball, and air shut-off valves.

Constructed with a sturdy and corrosion-resistant aluminium housing, it assures long service life and low maintenance requirements. The device operates reliably across a broad temperature range from -20°C to 80°C, suitable for diverse industrial settings.

Unique features include adjustable end positions with a ±5° adjustment range for zero and nominal swivel angles to allow fine calibration. A built-in safety function ensures the actuator shifts to a defined safe position by spring force in case of compressed air supply failure, enhancing operational safety in high-pressure environments.

The actuator provides a maximum torque rating of 41.6 Nm, delivering 43 Nm at 0° swivel and 22.4 Nm at 90° swivel under nominal pressure conditions. This torque ensures optimal performance in valve automation, material handling, assembly line operations, and remotely operated equipment control.

Operates at 8 bar max pressure with single-acting pneumatic control. Compact ISO 5211 threaded aluminium housing with corrosion resistance. Adjustable end positions with ±5° calibration for precise operation. Safety spring function enables secure operation on air supply failure.

Torque outputs suitable for valve automation and industrial processes. Wide temperature range of -20°C to 80°C suits diverse industrial environments. RoHS compliant ensuring environmentally responsible manufacture. Ideal for butterfly valves, ball valves, and air shut-off valve automation.

This pneumatic rotary actuator is an ideal component for industrial, manufacturing, HVAC, water treatment, pharmaceutical, and process automation applications requiring precise valve actuation control with safety features and robust performance.
