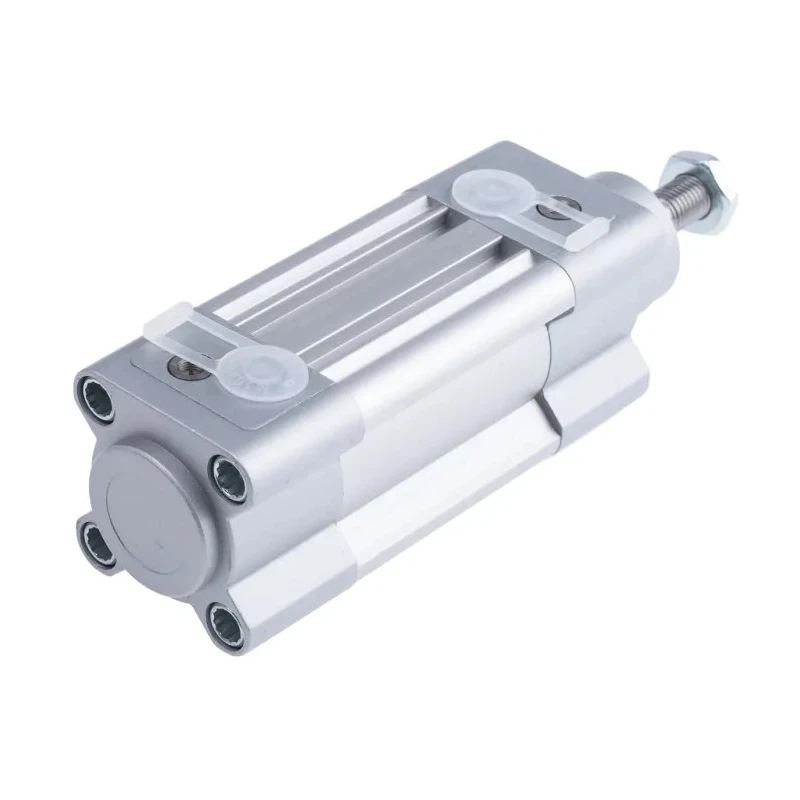

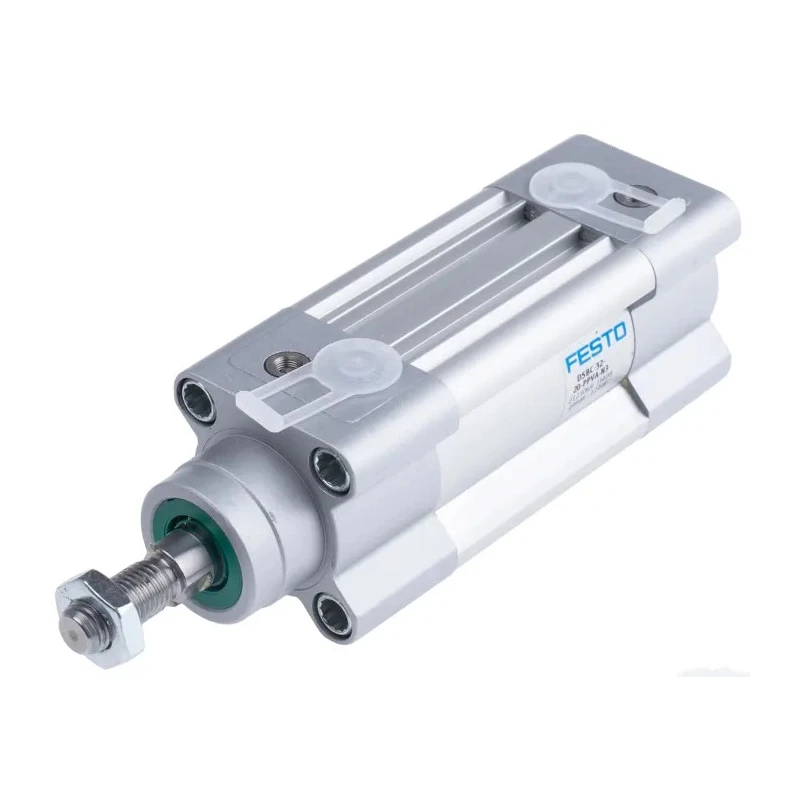

Festo Pneumatic Piston Rod Cylinder 32mm Bore, 20mm Stroke, Aluminium Body, Double Acting DSBC-32-20-PPVA-N3

Festo DSBC-32-20-PPVA-N3 Pneumatic Piston Rod Cylinder is a precision double acting pneumatic cylinder featuring a 32mm bore diameter and 20mm stroke length. Constructed with an aluminium body and a high-alloy steel piston rod, this cylinder is optimized for durability, low weight, and long service life. It is equipped with adjustable pneumatic cushioning at both ends that provides effective shock absorption to reduce noise and vibration during operation.

This DSBC series pneumatic cylinder conforms to the ISO 15552 standard, ensuring metric mounting dimensions for compatibility and interchangeability with other pneumatic and hydraulic cylinders. The through hole mount allows for flexible installation options in various orientations, enhancing its versatility in industrial applications.

The double acting operation allows compressed air to be applied on either side of the piston for controlled linear motion in both directions, making it suitable for medium to heavy load tasks. The magnetic piston rod enables contactless position sensing when paired with proximity sensors for automation and control.

This cylinder operates under a maximum pressure of 12 bar and a temperature range from -20°C to 80°C. Its compact size with length 165.1mm, height and width 45mm each, and weight of 465 grams make it suitable for integration into pneumatic systems where space and weight constraints exist.

The cylinder's aluminium body provides a balance of strength and reduced weight. Adjustable air cushions at stroke ends absorb energy and extend actuator life. Complies with ISO 15552 standard for mounting and dimension standards.

Double acting with dual air ports for forward and return strokes. High alloy steel piston rod with 1/8 in G male thread for secure attachments. Through hole mounting for versatile installation options. Operates efficiently in temperatures from -20°C to 80°C.

Compact design allows mounting in tight industrial spaces.

This pneumatic piston rod cylinder is widely used within industrial automation, manufacturing, fluid power systems, and machinery industries. Its robust construction and precision design make it ideal for tasks requiring reliable linear motion control with adjustable cushioning and sensor integration capabilities.
