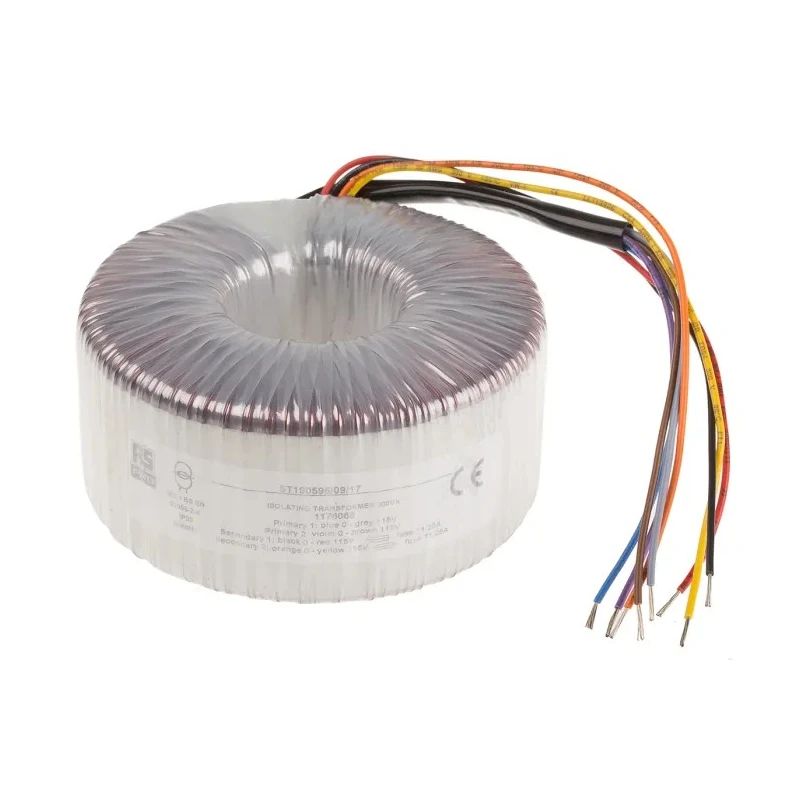

RS PRO 2 x 115 V AC Toroidal Transformer 300 VA Dual Primary Windings 2 Outputs Model 117-6068

RS PRO 117-6068 Toroidal Transformer is engineered for reliable power transfer in control circuits, featuring dual primary windings rated at 2 x 115 V AC and delivering 2 x 115 V AC on the secondary side with a power rating of 300 VA. This transformer operates efficiently between 50 Hz and 60 Hz frequency, making it suitable for diverse industrial and laboratory environments.

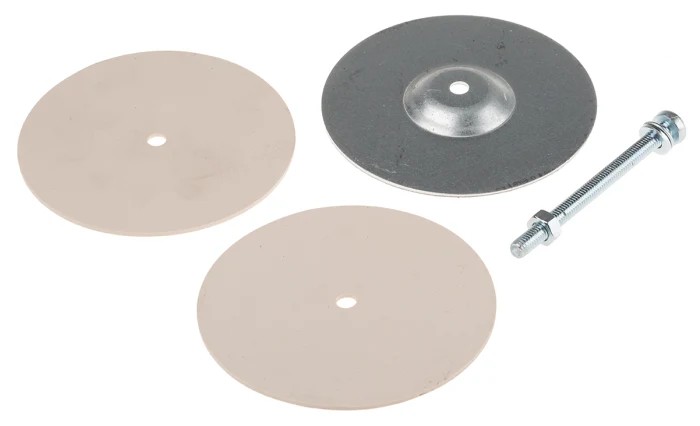

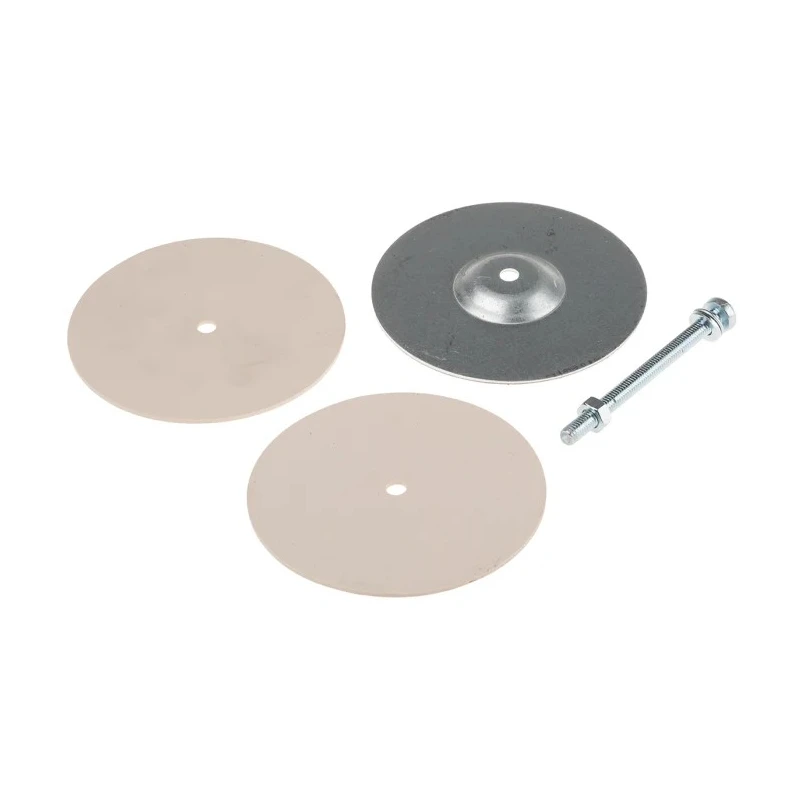

The compact form factor with a diameter of 117 mm and height of 60 mm allows convenient surface mounting using the included hardware such as bolt, nut, metal disc, and rubber washers. Its open toroid center design minimizes electromagnetic interference, enabling installation near sensitive electronic components without risk of disruption.

Equipped with colour-coded wires with stripped ends, installation is straightforward and time-saving. The winding type is dual primary to allow flexible wiring options, and termination is via wires for quick connections.

With a weight of 2.7 kg and maximum operating temperature of 105°C, this transformer is robust and durable for demanding electrical and electronic applications including industrial machines, power supplies, manufacturing, and control systems.

It complies with CE and RoHS standards ensuring environmentally responsible manufacture and operational safety. Additionally, it meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards, which are vital for electrostatic discharge protection in sensitive equipment.

Constructed with dual primary windings for versatile power configurations. Compact physical dimensions for easy installation in control panels. Frequency range suited for varied electrical environments. RoHS and CE certified for regulatory compliance.

Meets electrostatic discharge standards for enhanced equipment safety. Open toroidal core design reduces electromagnetic interference. Reliable surface mounting hardware included. Colour-coded termination wires simplify wiring tasks.

Robust build quality supports demanding industrial use.

This RS PRO Toroidal Transformer is ideal for integration in industrial electrical systems requiring quiet, efficient power transfer with low electromagnetic emissions. Browse the EnvMart range for other reliable transformers and power supply components.
