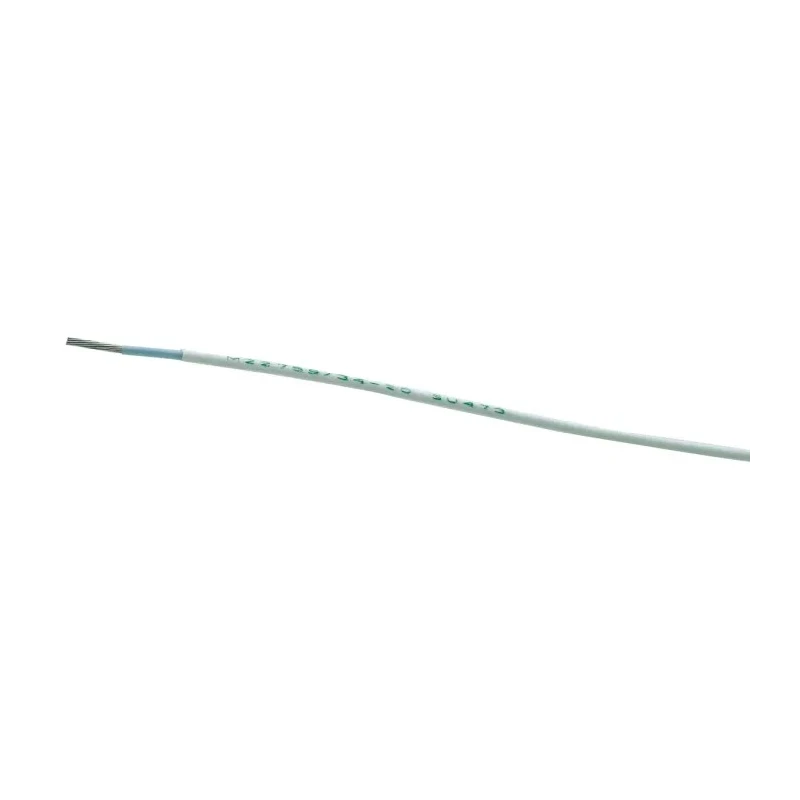

TE Connectivity M22759 Series White Hook Up Wire 12 AWG 37 x 28 AWG Core Strands 100 m Ethylene M22759/32-12-9

TE Connectivity M22759/32-12-9 Hook Up Wire is engineered to meet the demanding needs of industrial, aerospace, and harsh environment applications. This white, ethylene tetrafluoroethylene insulated wire is 12 AWG gauge with a stranded conductor configuration of 37 strands at 28 AWG size each, providing excellent electrical and mechanical performance.

The wire supports an operating voltage of up to 600V AC and is rated for temperature extremes of -65°C minimum to +150°C maximum, making it suitable for applications requiring high thermal endurance. The ethylene tetrafluoroethylene jacket delivers superior chemical resistance, low smoke and corrosive gas emissions, and exceptional toughness against physical and electrical stress.

Features include a stranded tin-plated copper conductor to enhance conductivity and corrosion resistance, and crosslinked ETFE insulation to provide excellent resistance to electrical arc tracking and chemical degradation.

Its small outside diameter of 2.62 mm allows for flexible routing in constrained spaces while maintaining durability and performance. This product is widely used in aerospace systems, military-grade ground systems, industrial automation, and other commercial environments that demand reliability under harsh conditions.

Constructed with stranded tin plated copper conductor for durability and electrical reliability. Features white ethylene tetrafluoroethylene jacket that offers chemical resistance and low smoke generation. Supports 600V AC voltage rating with temperature operation range from -65°C to 150°C.

100 meter cable length with 37 strands of 28 AWG size strands for flexibility and strength. Suitable for commercial and military aerospace or ground system applications. Crosslinked ETFE insulation provides electrical arc tracking resistance and chemical resilience.

Small diameter cable of 2.62 mm ideal for compact installations.

This Hook Up Wire is categorized under Wires & Cables for Electronics & Electricals, suitable for demanding industrial, laboratory, aerospace, and manufacturing applications. Browse more in TE Connectivity products at EnvMart for technical wires and cables.
